Jetway HBFBU03-6412-B (Intel Elkhart Lake) 2x HDMI and 2x USB-C

Model

– HBFBU03-6412-B

CPU/Chipset

– Intel® Elkhart Lake SoC Processor (J6412)

BIOS

– AMI Flash ROM

Memory

– 1* DDR4 3200MHz SO-DIMM up to 32GB

Network

– 2* Intel i255V 2.5GbE

Graphics

– Intel® HD Graphics, shared memory
– 1* DP (Max Resolution: 4096×2160@60Hz)
– 2* HDMI 2.0 (Max Resolution: 4096×2160@60Hz)
– Support Triple Displays

Storage

– 1* M.2 M-key (2260/2280, PCIe Gen.3 x2/SATA interface) support NVME

Expansion

– 1* M.2 E-key (2230, PCIe Gen.3 x1/USB2.0 interface)

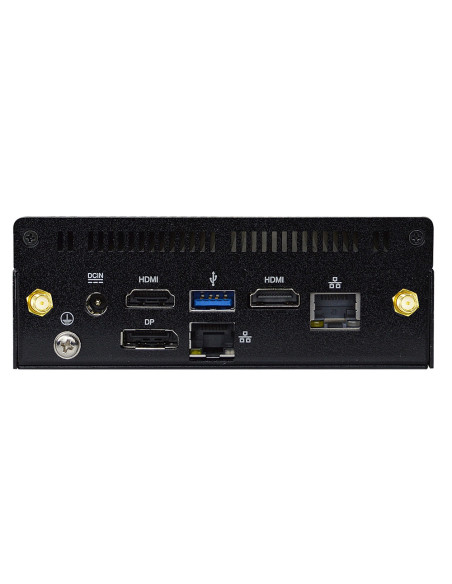

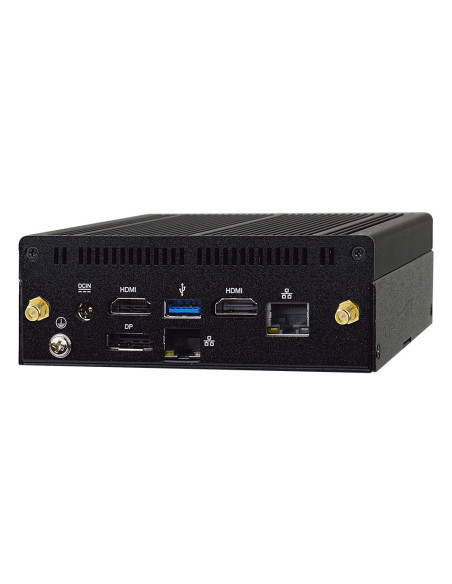

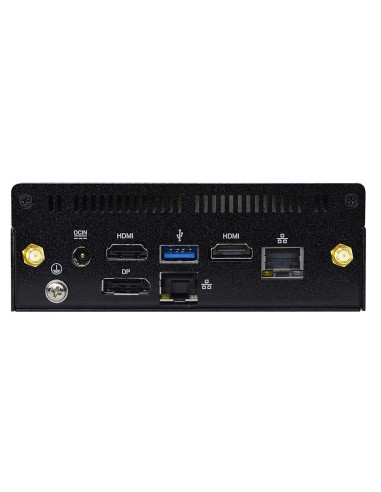

Rear Panel I/O

– 2* RJ45
– 1* DP
– 1* DC-in
– 2* HDMI
– 1* USB3.1(Gen.2)

Front Panel I/O

– 1* Power button + Power LED
– 2* USB(TypeC)
– 1* Audio(Line out+MIC)
– 1* USB2.0
– 1* USB3.1(Gen.2)

Internal Connector

– NA

Power Source

– Adapter : AC 90~240V input / DC12V_40W output
– MB : DC12V input

Compliance

– CE, FCC, LVD, RoHS, ErP Ready

Dimensions

– System : 125 (W) x 109.2 (D) x 44.5 (H) mm
– Color Box : 158 (W) x 167 (D) x 123.6 (H) mm

Temperature

– Storage Temperature: -20 ~ 60° C
(Under the condition of using M.2 interface SSD)
– Storage Temperature: -40 ~ 85° C
– Humidity: 10% ~ 95% RH @40°C (non-condensing)

OS Support

– Windows 10, Windows 11, Linux

Warranty

– 2 Year limited warranty

  Part Number

  Description

 HBFBU03 series

 HCSFBMWM01B-F

 FB Wall mount

 L01AS050-F

 Adapter DC12V_40W

 Change according to shipping area

 Power cord

 LCSCHBJC3XX-F

 JBC3XX Barebone Screw Pack
