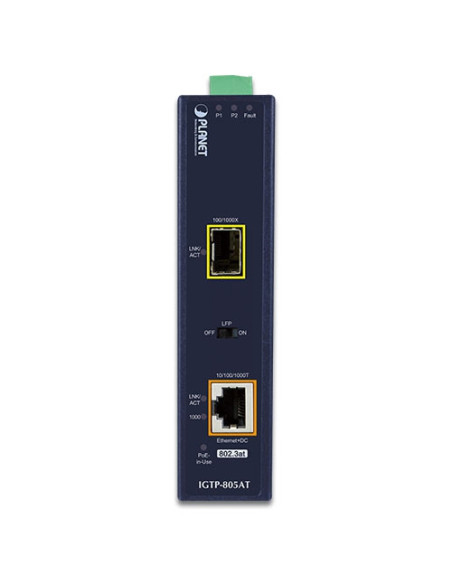

Planet IGTP-805AT 1000BASE-SX /LX to 10/100/1000BASE-T 802.3at PoE+ Industrial Media Converter (mini-GBIC, SFP)

IGTP-805AT
Last items in stock
$226.60
Tax included

IGTP-805AT Industrial 10/100/1000T 802.3at Gigabit Ethernet to 1000X SFP Converter

PLANET’s IGTP-805AT is an Industrial Gigabit Media Converter that combines Ethernet media conversion (from 1000BASE-X to 10/100/1000BASE-T) with 802.3at Power over Ethernet Plus (PoE+) injector. It delivers both up to 30 watts of power output and high data transmission speed to PDs (powered devices) installed in remote areas where sufficient and reliable power input is required. Its 1000BASE-X fiber optic uplink port provides long distance, high speed and stable data transmission to a remote core network. The power system of the IGTP-805AT supports 12~48V DC power input or 24V AC power input for power redundancy and operational flexibility.

Related Products & Accessories



IGTP-805AT - PLANET Industrial 10/100/1000T 802.3at Gigabit Ethernet to 1000X SFP Converter

Ethernet Interface
Copper 10/100/1000BASE-T Ethernet TP interface. Maximum 100m distance.
Auto-negotiation, auto MDI/MDI-X with PoE injector function
1000BASE-X Fiber-optic Connector Type IGTP-802T: SC
IGTP-802TS: SC
IGTP-805AT: SFP (LC)
Fiber Cable IGTP-802T
Multi-mode: 50/125 μm or 62.5/125 μm optic fiberIGTP-802TS
Single-mode: 9/125 μm optic fiberIGTP-805AT
Varying on SFP Module
Fiber Cable Distance IGTP-802T: 220m & 550m
IGTP-802TS: 10km
IGTP-805AT: Varying on SFP Module
Fiber Optical Frequency IGTP-802T: 850nm
IGTP-802TS: 1310nm
IGTP-805AT: Varying on SFP Module
Launch Power IGTP-802T
Max. -4dBm
Min. -9.5dBmIGTP-802TS
Max. -3dBm
Min. -9.5dBmIGTP-805AT
Varying on SFP Module
Receive Sensitivity IGTP-802T: -13.5dBm
IGTP-802TS: -14.4dBm
IGTP-805AT: Varying on SFP Module
Maximum Input Power IGTP-802T: -18dBm
IGTP-802TS: -20dBm
IGTP-805AT: Varying on SFP Module
Power Over Ethernet
PoE Standard IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
PoE Power Output 52V DC: 15.4 watts
52V DC: 30 watts
PoE Power Supply Type End-span
Power Pin Assignment 1/2(+), 3/6(-)
PoE Power Budget 30 watts
Hardware Specifications
Speed Twisted-pair:
10/20Mbps for half/full duplex
100/200Mbps for half/full duplex
1000/2000Mbps for full duplexFiber Optic:
200Mbps / 2000Mbps for full duplex
Flow Control Back pressure for half duplex mode
IEEE 802.3x pause frame for full duplex mode
Maximum Frame Size 9K
LED System: Power 1, Power 2 and Fault LED (green)
Fiber 1000BASE-X: LNK/ACT (green)
TP 10/100/1000BASE-T: LNK/ACT, 1000 (green)
PoE: Power-in-use (orange)
Dimensions (W x D x H) 135 x 87 x 32 mm
Weight IGTP-802T: 510g
IGTP-802TS: 510g
IGTP-805AT: 500g

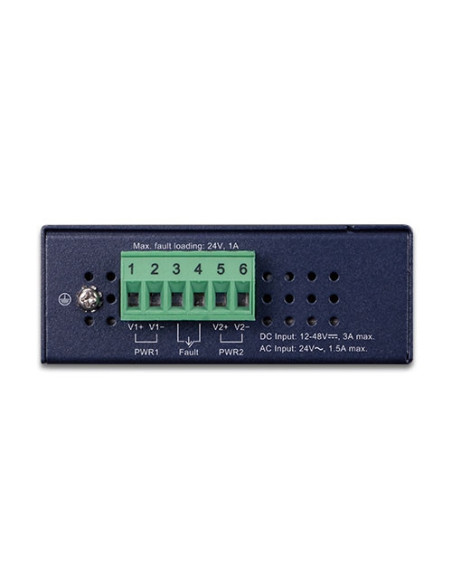

Unit Input Voltage 12 ~ 48V DC
24V AC
Power Consumption 24V: 4.3 watts / 14BTU, 48V: 4.8 watts / 16BTU (without PoE)
24V: 33 watts / 112BTU, 48V: 31 watts / 105BTU (with PoE)
Link Fault Passthrough DIP Switch ON/OFF
Enclosure IP30 metal case
Installation DIN-rail kit and wall-mount ear
ESD Protection 6KV DC
Alarm Provides one relay output for power failure
Alarm relay current carry ability: 1A @ DC 24V
Cables 10/100/1000BASE-T:
2-pair UTP Cat. 3, 4, 5, 5e, 6 (maximum 100 meters)
EIA / TIA-568 100-ohm STP (maximum 100 meters)100BASE-FX/1000BASE-SX/LX:
Multi-mode: 50/125μm or 62.5/125μm optical fiber
Single-mode: 9/125μm optical fiber
Standards Conformance
Regulatory Compliance FCC Part 15 Class A, CE
Protocols and Standards Compliance IEEE 802.3 Ethernet
IEEE 802.3u Fast Ethernet
IEEE 802.3ab Gigabit Ethernet
IEEE 802.3z Gigabit Ethernet over Fiber Optic
IEEE 802.3x Flow Control
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
Stability Testing IEC60068-2-32 (free fall)
IEC60068-2-27 (shock)
IEC60068-2-6 (vibration)
Environment
Temperature Operating: -40~75 degrees C
Storage: -40~85 degrees C
Humidity Operating: 5~90% (non-condensing)
Storage: 5~90% (non-condensing)

Device Type
Media Converter
Power Over Ethernet
Device Features
Industrial
TAA Compliant
Operating Temperature
-40 to 75° C
Speed
10/100/1000T to 1000FX SFP
Fiber Connection
LC
4711213686979
