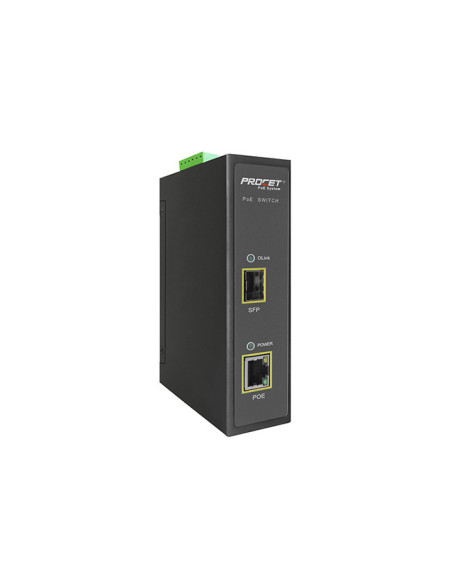

Procet PT-PSE105GBS-E 12-48VDC Industrial boost POE Fiber 95W Media Converter

PT-PSE105GBS-E12-48VDC Industrial boost POE Fiber 95W Media Converter

Product Features

Key Features

- Industrial Fiber PoE can be outdoor use by covered with waterproof case
- Surge protection at PoE port
- 1000Base-FX to 1000Base-TX
- SFP slot for Multi mode or Single mode SFP transceiver
- Gigabit data rates
- 12-48VDC input make it possible for solar application
- DIN Rail mount
- IP40 high-impact metal enclosure
- Extend temperature from -40℃ to 65℃
- Diagnostic LEDs

Part Number

- PT-PSE105GBS-E

Ports condition

- SFP Port*1, PoE Output Port*1, DC input Terminal Block *1

Regulatory Compliance

- IEEE802.3bt
- RoHS Compliance
- WEEE Compliance

Pass Through Data Rates

- 1000 Mbps

Output

- Pin Assignment and Polarity:
4/5(+), 7/8(-) & 3/6(+),1/2(-)
Output Power Voltage: 55Vdc
User Port Power: 95W Guaranteen

Input

DC Input Voltage: 12 to 48 Vdc
DC Input Current: 8.0A

Working Environment

Operating Temperature: -40℃ to 65℃
Operating Humidity: 20% to 80%, non-condensation
Storage Temperature: -40℃ to 85℃
Storage Humidity: 10% to 90%, non-condensation
Operating Altitude: up to 5000meters

PoE Surge Protection

Protected line: 1,2,3,4,5,6,7,8
Common mode surge protection(10/700us): 6KV
Differential mode surge protection (10/700us): 1.5KV

Mechanical Characteristics

Case: Metal
Color: Black

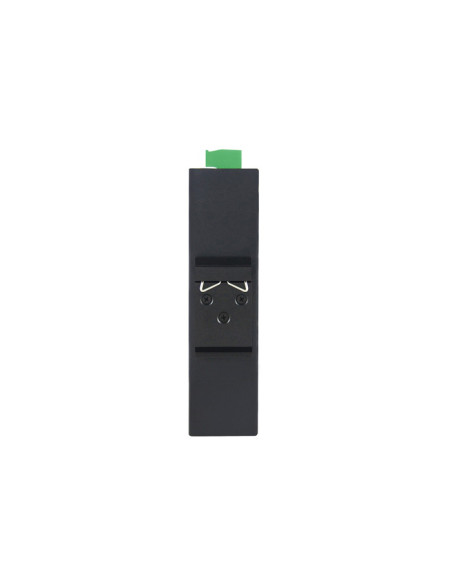

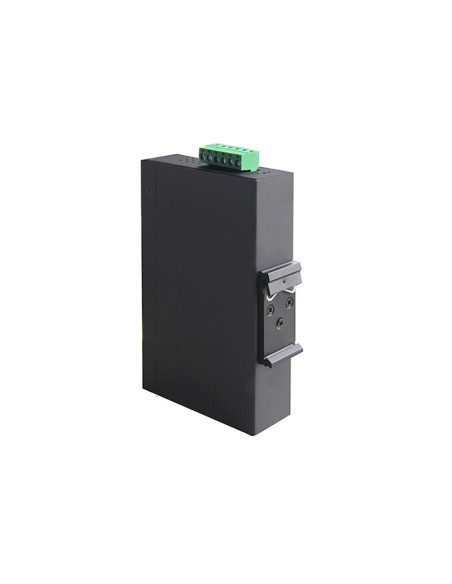

Mounting: DIN-rail
IP Rated: IP40
Connectors: Shielded RJ-45*1, SFP slot*1
Size: 144.5mmX 95mmX 35.4mm
Weight: 485g（1.1lb）

LED Indicator

Power Indicator: Green
PoE Load Indicator: Green
SFP fiber indicator: Green
PoE data indicator: Yellow
