IGS-504HPT v2 Industrial 4-Port 802.3at PoE + 1-Port Gigabit Ethernet Switch PLANET Technology

PLANET Industrial 5-Port 10/100/1000T with 4-Port 30W 802.3at PoE Gigabit Ethernet Switch

In Stock
Tax included


The IGS-504HPT v2 from PLANET Technology provides up to 36W PoE output to allow users to flexibly deploy standard and high powered devices simultaneously with no need of software configuration, and comes with wide power requirement support: 12~48V DC to 54V power boost technology to solve power source issue. It also provides dual-redundant, reversible polarity inputs for high availability applications.

IGS-504HPT v2 Key Features:

  • 12~56V DC Redundant Power Design with Power Boost Technology
  • 4 real-time PoE power usage indicators
  • 6KV DC Ethernet ESD, surge protection
  • IP40 compact metal case with space-saving design
  • DIN-rail, wall-mount or side wall-mount design
  • -40~75C operating temperature


IGS-504HPT - PLANET Industrial 5-Port 10/100/1000T with 4-Port 30W 802.3at PoE Gigabit Ethernet Switch

Device Type
Network Switch, Power Over Ethernet
Device Features
POE Ports
4, 4
Power Input
Power Over Ethernet
48V 30W 802.3at, 48V 15W 802.3af
Ethernet Ports
5, 5
Environment Temperature
Installation Type
DIN-rail, Wall-mount
No reviews

Hardware Specifications
Copper Ports 5 10/100/1000BASET RJ45 auto-MDI/MDI-X ports
PoE Injector Ports Four ports with 802.3at PoE+ injector function (Port-1 to Port-4)
SFP Slots N/A

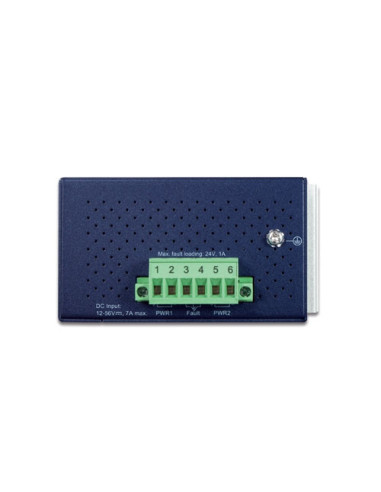

Connector Removable 6-pin terminal block
Pin 1/2 for Power 1; Pin 3/4 for fault alarm; Pin 5/6 for Power 2
Power Requirements 12~56V DC, 7A (max.)
Redundant power with reverse polarity protection function
Power Consumption Max. 7.02 watts/24BTU
(Ethernet Full Loading)
Max. 132 watts/450BTU
(Ethernet + PoE Full Loading)
Dimensions (W x D x H) 50 x 87 x 135 mm
Weight 605g
Enclosure IP40 metal case
Installation DIN-rail kit and wall-mount kit
ESD Protection 6KV
Switch Specifications
Switch Architecture Store-and-Forward
Switch Fabric 10Gbps
Throughput (packet per second) 7.4Mpps@64bytes
Address Table 4K entries
Buffer Memory 1M bits on-chip buffer memory
Jumbo Frame 9Kbytes
Flow Control Back pressure for half duplex
IEEE 802.3x pause frame for full duplex
Power over Ethernet
PoE Standard IEEE 802.3at Power over Ethernet Plus/PSE
PoE Power Supply Type End-span
Power Pin Assignment 1/2(+), 3/6(-)
PoE Power Output Per port 54V DC, max. 36 watts
PoE Power Budget (max.) 60W@12V DC input
90W@24V DC input
120W@48V-56V DC input
Max. Number of Class 4 PDs 4
Standards Conformance
Regulatory Compliance FCC Part 15 Class A, CE
Stability Testing IEC 60068-2-32 (free fall)
IEC 60068-2-27 (shock)
IEC 60068-2-6 (vibration)
Standards Compliance IEEE 802.3 Ethernet
IEEE 802.3u Fast Ethernet
IEEE 802.3ab Gigabit Ethernet
IEEE 802.3x Full-Duplex Flow Control
IEEE 802.3az Energy Efficient Ethernet (EEE)
IEEE 802.3at Power over Ethernet Plus PSE
IEEE 802.3af Power over Ethernet Plus
IEEE 802.1p Class of Service
Temperature Operating: -40~75 degrees C
Storage: -40~75 degrees C
Humidity Operating: 5~90% (non-condensing)
Storage: 5~90% (non-condensing)
