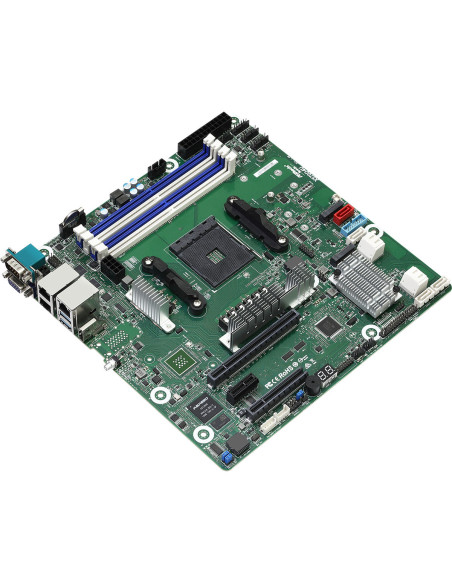

AsRockRack X570D4U key features:
Please note, This reference doesn't include OCuLink to SATA Cable. If you need this cable please select from the option below.
Related Products & Accessories
International buyers, please email us for a shipping quote
| MB Physical Status | |
| Form Factor | micro-ATX |
| Dimensions | 9.6"x9.6" (244mmx 244mm) |
| Processor System | |
| CPU | supports 3rd Gen AMD Ryzen™ Processors and 2nd Gen AMD Ryzen™ Processors with Radeon™ Graphics |
| Socket | AM4 PGA 1331 |
| Power Design | 105W |
| Chipset | AMD X570 |
| System Memory | |
| Capacity | 4 DIMM slots (2DPC) |
| Type | 288-pin DDR4 ECC* and non-ECC UDIMM * ECC support varies by CPU |
| DIMM Size Per DIMM | up to 32GB per DIMM |
| DIMM Frequency | 3rd Gen AMD Ryzen™ Processors : up to 3200 MHz 2nd Gen AMD Ryzen™ Processors with Radeon™ Graphics: up to 2666 MHz |
| Voltage | 1.2V |
| Expansion Slot | |
| PCIe 4.0 x 16 | SLOT6: Latch PCIe x16 (PCIe 4.0 x16)* [CPU], auto switch to PCIe4.0 x8 when SLOT4 is occupied *Supports PCIe3.0 x8 when using 2nd Gen AMD Ryzen™ Processors with Radeon™ Graphics |
| PCIe 4.0 x 8 | SLOT4: Open-end PCIe x8 (PCIe 4.0 x8)* [CPU] *Disabled when using 2nd Gen AMD Ryzen™ Processors with Radeon™ Graphics |
| PCIe 4.0 x 1 | SLOT5: PCIe 4.0 x1* *Supports PCIe3.0 when using 2nd Gen AMD Ryzen™ Processors with Radeon™ Graphics |
| M.2 | 1 M-key (PCIe4.0* x4 or SATA 6Gb/s); Form factor: 22110/2280/2260/2242 [CPU] 1 M-key (PCIe4.0* x4 or SATA 6Gb/s); Form factor: 2280/2260/2242 [X570] *Supports PCIe3.0 when using 2nd Gen AMD Ryzen™ Processors with Radeon™ Graphics |
| Storage | |
| SATA Controller | X570 (12 SATA 6Gb/s, support RAID 0/1/10): 8 SATA 7-pin connectors, including 1 support SATA DOM 4 SATA via optional M2-HD M.2 device |
| Ethernet | |
| Additional GbE Controller | 2 RJ45 (1GbE) by Intel® i210 |
| Management | |
| BMC Controller | ASPEED AST2500 : IPMI (Intelligent Platform Management Interface) 2.0 |
| IPMI Dedicated GLAN | 1 x Realtek RTL8211E for dedicated management GLAN |
| Graphics | |
| Controller | ASPEED AST2500: 1 DB15, 1 (15-pin) header 2nd Gen AMD Ryzen™ Processors with Radeon™ Graphics: 1 HDMI |

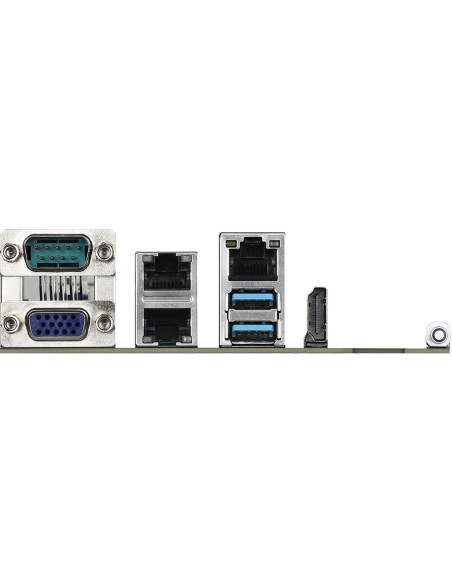

| Rear Panel I/O | |
| HDMI | 1 |
| VGA Port | 1 |
| USB 3.1 Gen2 Port | 2 |
| Lan Port | 2 RJ45(1GbE) |
| Dedicate LAN | 1 |
| Serial Port | 1 |
| UID Button/UID LED | 1 |
| Internal Connector | |
| Front Lan LED Connector | 1 for LAN3/LAN4 |
| Auxiliary Panel Header | 1 (18-pin): chassis intrusion, system fault LED, LAN1/LAN2 activity LED, locate, SMBus |
| TR1 Header | 1 |
| TPM Header | 1 (17-pin, LPC), 1 (13-pin, SPI) |
| IPMB Header | 1 |
| VGA Header | 1 |
| PMBus CONN | 1 |
| Buzzer | 1 |
| Fan Header | 3 (6-pin), 3 (4-pin) |
| Front Panel | 1 (9-pin): power switch, reset switch, system power LED, HDD activity LED |
| Speaker Header | 1 |
| BMC_SMB Header | 1 |
| Power Connector | 1 ATX main power (24-pin), 1 ATX 12V (8-pin) |
| Clear CMOS | 1 contact pads |
| Onboard LED | |
| Standby PWR LED 5vsb | 1 |
| 80 Debug Port LED | 1 |
| Fan Fail LED | 6 |
| System BIOS | |
| BIOS Type | 32MB AMI UEFI Legal BIOS |
| BIOS Features | Plug and Play (PnP), ACPI 2.0 Compliance Wake Up Events, SMBIOS 2.8.0 Support, ASRock Rack Instant Flash |
| Hardware Monitor | |
| Temperature | CPU/ DRAM/ MB/ Card Side/X570 temperature sensing |
| Fan | Fan Tachometer Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature) Fan Multi-Speed Control |
| Voltage | 3VSB, 5VSB, VCPU, VSOC, VCCM, APU VDDP, PM VDD CLDO, PM VDDCR S5, PM VDDCR, BAT, 3V, 5V, 12V |
| Environment | |
| Temperature | Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C |
