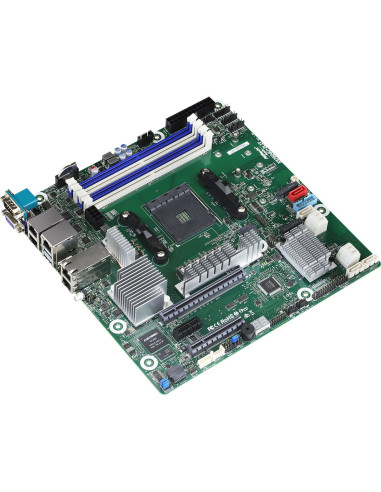

AsRockRack X570D4U-2L2T key features:
Related Products & Accessories
International buyers, please email us for shipping quote
| Physical Status | |
| Form Factor | Micro-ATX |
| Dimensions | 9.6"x9.6" (244mmx 244mm) |
| Processor System | |
| CPU | Supports: AMD Ryzen™ 5000, 4000 and 3000 G-Series Desktop Processors with Radeon™ Graphics AMD Ryzen™ 5000 and 3000 Series Desktop Processors AMD Ryzen™ PRO 5000, 4000 and 3000 Series Desktop Processors |
| Socket | Single Socket AM4 (PGA1331) |
| Thermal Design Power | 105W |
| Chipset | AMD X570 |
| System Memory | |
| Supported DIMM Quantity | 4 DIMM slots (2DPC) |
| Supported Type | Supports DDR4 288-pin ECC*/non-ECC UDIMM *For AMD Ryzen Desktop Processors with Radeon Graphics, ECC support is only with Processors with PRO technologies. |
| Max. Capacity per DIMM | up to 32GB |
| Max. DIMM Frequency | up to 3200 MHz* * AMD Ryzen™ 3000 G-Series Desktop Processors with Radeon™ Graphics support up to 2666 MHz |
| Voltage | 1.2V |
| PCIe Expansion Slots (SLOT7 close to CPU) | |
| PCIe x 16 | SLOT6: PCIe x16 (PCIe 4.0 x16)* [CPU], auto switch to x8 when SLOT4 is occupied *Supports PCIe3.0 x8 when using AMD Ryzen™ 3000 G-Series Desktop Processors with Radeon™ Graphics *Supports PCIe3.0 x16 when using AMD Ryzen™ 5000, 4000 G-Series Desktop Processors with Radeon™ Graphics |
| PCIe x 8 | SLOT4: Open-end PCIe x8 (PCIe 4.0 x8)* [CPU] *Disabled when using AMD Ryzen™ 3000 G-Series Desktop Processors with Radeon™ Graphics *Supports PCIe3.0 x8 when using AMD Ryzen™ 5000, 4000 G-Series Desktop Processors with Radeon™ Graphics |
| PCIe x 1 | SLOT5: PCIe4.0* x1 [FCH] *Supports PCIe3.0 when using AMD Ryzen™ 5000, 4000 and 3000 G-Series Desktop Processors with Radeon™ Graphics |
| Other PCIe Expansion Connectors | |
| M.2 slot | 1 M-key (PCIe4.0* x4 or SATA 6Gb/s); Form factor: 22110/2280/2260/2242 [CPU] 1 M-key (PCIe4.0* x4 or SATA 6Gb/s); Form factor: 2280/2260/2242 [FCH] *Supports PCIe3.0 when using AMD Ryzen™ 5000, 4000 and 3000 G-Series Desktop Processors with Radeon™ Graphics |
| SATA/SAS Storage | |
| PCH Built-in Storage | AMD X570: 8 SATA 7-pin connectors, including 1 support SATA DOM |
| Ethernet | |
| Additional GbE Controller | 2 RJ45 (10GbE) by Intel® X550-AT2 2 RJ45 (1GbE) by Intel® i210 |
| Server Management | |
| BMC Controller | ASPEED AST2500 : IPMI (Intelligent Platform Management Interface) 2.0 |
| IPMI Dedicated GLAN | 1 x Realtek RTL8211E for dedicated management GLAN |
| Graphics | |
| Controller | ASPEED AST2500: 1 DB15, 1 (15-pin) header AMD Ryzen™ Processors with Radeon™ Graphics: 1 HDMI |

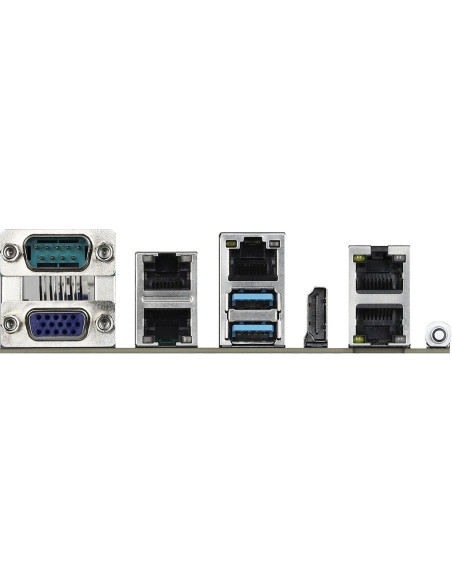

| Rear I/O | |
| UID Button/LED | 1 |
| VGA Port | 1 DB15 (VGA), 1 HDMI |
| Serial Port | 1 DB9 (COM) |
| USB 3.2 Gen2 Port | 2 Type-A (USB3.2 Gen2) |
| RJ45 | 2 RJ45 (10GbE) by Intel® X550-AT2 2 RJ45(1GbE) by Intel® i210 1 dedicated IPMI |
| Internal Connector/Headers | |
| Power Connector | 1 (24-pin, ATX main power), 1 (8-pin, ATX 12V) |
| Auxiliary Panel Header | 1 (18-pin): chassis intrusion, system fault LED, LAN1/LAN2 activity LED, locate, SMBus |
| System Panel | 1 (9-pin): power switch, reset switch, system power LED, HDD activity LED |
| VGA header | 1 |
| Speaker Header | 1 |
| Buzzer | 1 |
| Fan Header | 3 (6-pin), 3 (4-pin) |
| Thermal Sensor Header | 1 |
| TPM Header | 1 (17-pin, LPC), 1 (13-pin, SPI) |
| SMBus header | 1 |
| PMBus header | 1 |
| IPMB Header | 1 |
| Clear CMOS | 1 (contact pads) |
| Front Lan LED Connector | 1 for LAN3/LAN4 |
| USB 3.2 (Gen1) Header | 1 (19-pin, 2 USB3.2 Gen1) |
| LED Indicators | |
| Standby PWR LED 5vsb | 1 |
| 80 Debug Port LED | 1 |
| Fan Fail LED | 6 |
| System BIOS | |
| BIOS Type | 32MB AMI UEFI Legal BIOS |
| BIOS Features | Plug and Play (PnP), ACPI 2.0 Compliance Wake Up Events, SMBIOS 2.8.0 Support, ASRock Rack Instant Flash |
| Hardware Monitor | |
| Temperature | CPU/ DRAM/ MB/ Card Side/ 10G LAN/X570 temperature sensing |
| Fan | Fan Tachometer Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature) Fan Multi-Speed Control |
| Voltage | 3VSB, 5VSB, VCPU, VSOC, VCCM, APU VDDP, PM VDD CLDO, PM VDDCR S5, PM VDDCR, BAT, 3V, 5V, 12V |
| Environment | |
| Temperature | Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C |
| Humidity | Non operation humidity: 20% ~ 90% ( Non condensing) |
