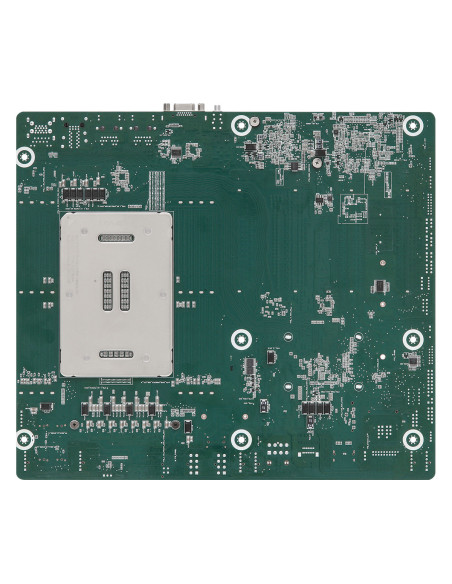

ASRock Rack SPC741D8-2L2T/BCM Motherboard CEB 4th Gen Intel Xeon 8xDIMM DDR5 RDIMM 4xPCIe5.0 1xMCIO 2xM.2 RJ45 IPMI

SPC741D8-2L2T/BCM
In Stock
$1,270.00
Tax included

SPC741D8-2L2T/BCM

  • CEB (12'' x 10.5'')
  • Supports 4th Gen Intel® Xeon® Scalable Processors
  • 8 DIMM slots (1DPC), supports DDR5 RDIMM/ RDIMM-3DS
  • 4 PCIe5.0 / CXL1.1 x16
  • 1 MCIO (PCIe3.0 x4 or 4 SATA 6Gb/s), 2 MCIO (PCIe5.0 x8)
  • 2 M.2 slots (PCIe3.0 x4 or SATA 6Gb/s)
  • Up to 12 SATA 6Gb/s
  • 2 RJ45 (10GbE) by Broadcom BCM57416
  • 2 RJ45 (1GbE) by Intel® i210
  • Remote Management (IPMI)

Related Products & Accessories



SPC741D8-2L2T/BCM - ASRock Rack Motherboard CEB 4th Gen Intel Xeon 8xDIMM DDR5 RDIMM 4xPCIe5.0 1xMCIO 2xM.2 RJ45 IPMI

Specifications

 Physical Status
Form Factor CEB
Dimensions 12'' x 10.5'' (304.8 x 266.7 mm)
 Processor System
CPU Supports 4th Gen Intel® Xeon® Scalable Processors
Socket Single Socket E (LGA 4677)
Thermal Design Power 350W
Chipset Intel® C741
 System Memory
Supported DIMM Quantity 8 DIMM slots (1DPC)
Supported Type 288-pin DDR5 RDIMM/ RDIMM-3DS
Max. Capacity per DIMM RDIMM: 64GB
RDIMM-3DS: 2H- 128 GB / 4H- 256 GB
Max. DIMM Frequency 4800 MT/s
Voltage 1.1V
 PCIe Expansion Slots (SLOT7 close to CPU)
PCIe x 16 SLOT7: PCIe5.0 / CXL1.1 x16 [CPU]
SLOT5: PCIe5.0 / CXL1.1 x16 [CPU]
SLOT3: PCIe5.0 / CXL1.1 x16 [CPU]
SLOT1: PCIe5.0 / CXL1.1 x16 [CPU]
 Other PCIe Expansion Connectors
M.2 slot 1 M-key M2_1 (PCIe3.0 x4 or SATA 6Gb/s), supports 22110/2280/2242 form factor [PCH]
1 M-key M2_2 (PCIe3.0 x4 or SATA 6Gb/s), supports 22110/2280 form factor [PCH]
Others 2 MCIO (PCIe5.0 x8) [CPU]
1 MCIO (PCIe3.0 x4 or SATA 6Gb/s) [PCH]
 SATA/SAS Storage
PCH Built-in Storage Intel® C741 (Up to 12 SATA 6Gb/s, support RAID 0/1/5/10):
1 MCIO 4i for 4 SATA, 8 SATA via optional M2U2-HD-4G M.2 device
 Ethernet
Additional GbE Controller 2 RJ45 (10GbE) by Broadcom BCM57416
2 RJ45 (1GbE) by Intel® i210
 Server Management
BMC Controller ASPEED AST2600: IPMI2.0 with iKVM and vMedia support
IPMI Dedicated GLAN 1 RJ45 Dedicated IPMI LAN port by Realtek RTL8211F
 Graphics
Controller ASPEED AST2600:
1 DB15 (VGA)

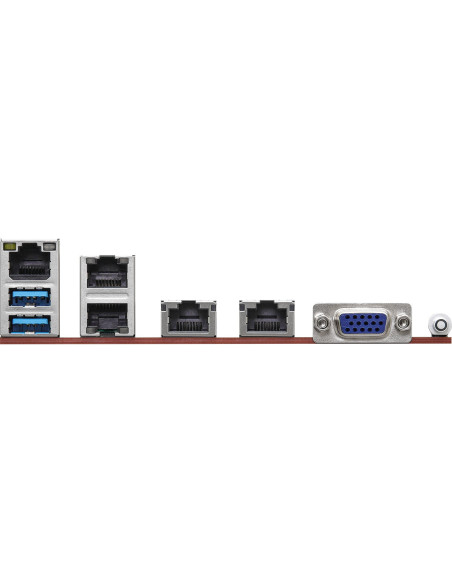

 Rear I/O
UID Button/LED 1 UID button w/ LED
VGA Port 1 DB15 (VGA)
USB 3.2 Gen1 Port 2 Type-A (USB3.2 Gen1)
RJ45 2 RJ45(10GbE), 2 RJ45(1GbE), 1 dedicated IPMI
 Internal Connector/Headers
Power Connector 1 Micro-Fit (4-pin, ATX PSU signal), 3 (8-pin, ATX 12V)
Auxiliary Panel Header 1 (18-pin): chassis intrusion, system fault LED, LAN1/LAN2 activity LED, locate, SMBus
System Panel 1 (9-pin): power switch, reset switch, system power LED, HDD activity LED
COM Header 1 (9-pin)
Speaker Header 1 (4-pin)
Fan Header 6 (6-pin)
Thermal Sensor Header 1
TPM Header 1 (13-pin, SPI)
VROC header 1
SGPIO Header 2
HSBP 1
SMBus header 1
PMBus header 1
IPMB Header 1
Clear CMOS 1 (contact pads)
Front Lan LED Connector 1
USB 3.2 (Gen1) Header 1 (19-pin, 2 USB3.2 Gen1)
USB 2.0 Header 1 (9-pin, 2 USB2.0)
NMI Header 1
 LED Indicators
Standby PWR LED 5vsb 1
80 Debug Port LED 1
Fan Fail LED 6
BMC heartbeat LED 1
 System BIOS
BIOS Type AMI 256Mb SPI Flash ROM
BIOS Features Plug and Play (PnP), ACPI 4.0 and above compliance wake up events, SMBIOS 3.4 and above, ASRock Rack Instant Flash
 Hardware Monitor
Temperature CPU, MB, Card side, TR1 Temperature sensing
Fan Fan Tachometer
CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
Fan Multi-Speed Control
Voltage CPU1_PVCCIN, 1.05V_PCH, 1.8V_PCH, +BAT, PVNN_PCH, 3.3V, 5V, 12V, 3.3VSB, 5VSB, +12V, +12VSB
 Environment
Temperature Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C
Humidity Non operation humidity: 20% ~ 90% ( Non condensing)

The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.

Form Factor
CEB
Ethernet Ports
4
4711430520193
SPC741D8-2L2T/BCM
