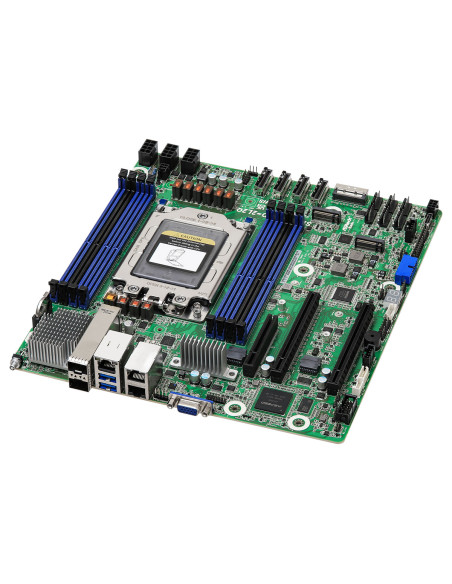

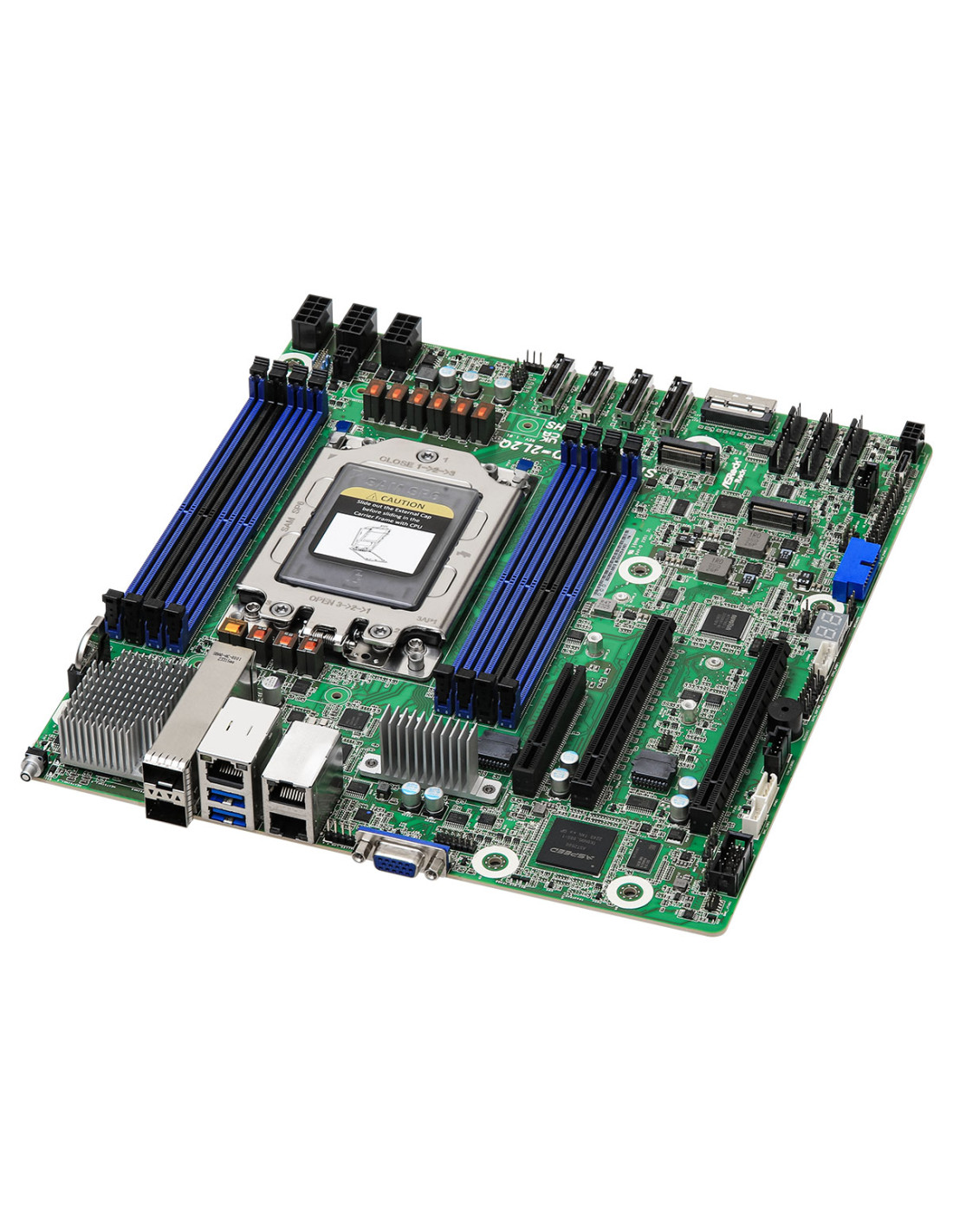

ASRock Rack SIENAD8UD-2L2Q Motherboard Deep Micro-ATX Server Board for AMD EPYC 8004 with PCIe 5.0 Broadcom BCM57414 25GbE
ASRock Rack SIENAD8UD-2L2Q |SIENAD8UD-2L2Q Motherboard Deep Micro-ATX Server Board for AMD EPYC 8004 with PCIe 5.0 Broadcom BCM5
ASRock Rack SIENAD8UD-2L2Q |SIENAD8UD-2L2Q Motherboard Deep Micro-ATX Server Board for AMD EPYC 8004 with PCIe 5.0 Broadcom BCM5
  • New
ASRock Rack SIENAD8UD-2L2Q Motherboard Deep Micro-ATX Server Board for AMD EPYC 8004 with PCIe 5.0 Broadcom BCM57414 25GbE
ASRock Rack SIENAD8UD-2L2Q |SIENAD8UD-2L2Q Motherboard Deep Micro-ATX Server Board for AMD EPYC 8004 with PCIe 5.0 Broadcom BCM5
ASRock Rack SIENAD8UD-2L2Q |SIENAD8UD-2L2Q Motherboard Deep Micro-ATX Server Board for AMD EPYC 8004 with PCIe 5.0 Broadcom BCM5

ASRock Rack SIENAD8UD-2L2Q Motherboard Deep Micro-ATX Server Board for AMD EPYC 8004 with PCIe 5.0 Broadcom BCM57414 25GbE

SIENAD8UD-2L2Q
ETA Early Sept
$1,232.00
Tax included

SIENAD8UD-2L2Q

Key Features:

  • Supports ATX PSU or 12V DC-in
  • Deep Micro-ATX (9.6" x 10.5")
  • Single Socket SP6 (LGA 4844), supports AMD EPYC™ 8004 series processors
  • 8 DIMM slots (2DPC/1DPC), supports DDR5 RDIMM
  • 2 PCIe5.0 / CXL1.1 x16, 1 PCIe5.0 / CXL1.1 x8
  • 2 MCIO (PCIe5.0 x8 or 8 SATA 6Gb/s), 3 MCIO (PCIe5.0 x8)
  • 1 OCuLink (PCIe3.0 x4)
  • 2 M.2 (PCIe5.0 x4)
  • Up to 16 SATA 6Gb/s
  • 2 SFP28 (25GbE) by Broadcom BCM57414
  • 2 RJ45 (1GbE) by Intel® i210
  • Remote Management (IPMI)

Quantity Unit price You Save
5 $1,201.20 $154.00

Related Products & Accessories



SIENAD8UD-2L2Q ASRock Rack Motherboard Deep Micro-ATX Server Board for AMD EPYC 8004 with PCIe 5.0 Broadcom BCM57414 25GbE

Product Specifications

 Physical Status
Form Factor Deep Micro-ATX
Dimensions 9.6" x 10.5"
 Processor System
CPU Supports AMD EPYC™ 8004 series processors
Socket Single Socket SP6 (LGA 4844)
Chipset System on Chip
 System Memory
Supported DIMM Quantity 8 DIMM slots (2DPC/1DPC)
Supported Type Supports DDR5 288-pin RDIMM
Max. Capacity per DIMM 96GB (2Rx4)
Max. DIMM Frequency 4800 MHz
Voltage 1.1V
 PCIe Expansion Slots (SLOT7 close to CPU)
PCIe x 16 SLOT6: PCIe5.0 / CXL1.1 x16
SLOT4: PCIe5.0 / CXL1.1 x16
PCIe x 8 SLOT7: PCIe5.0 / CXL1.1 x8
 Other PCIe Expansion Connectors
M.2 slot 2 M-key (PCIe5.0 x4), supports 22110/2280 form factor
Others 2 MCIO (PCIe5.0 x8 or 8 SATA 6Gb/s)
3 MCIO (PCIe5.0 x8)
1 OCuLink (PCIe3.0 x4)
 SATA/SAS Storage
PCH Built-in Storage AMD EPYC 8004 (16 SATA 6Gb/s):
2 MCIO
 Ethernet
Additional GbE Controller Broadcom BCM57414: 2 SFP28 (25GbE)
Intel® i210: 2 RJ45 (1GbE)
 Server Management
BMC Controller ASPEED AST2600
IPMI Dedicated GLAN 1 Realtek RTL8211F for dedicated management GLAN
 Graphics
Controller ASPEED AST2600
VRAM DDR4 512MB

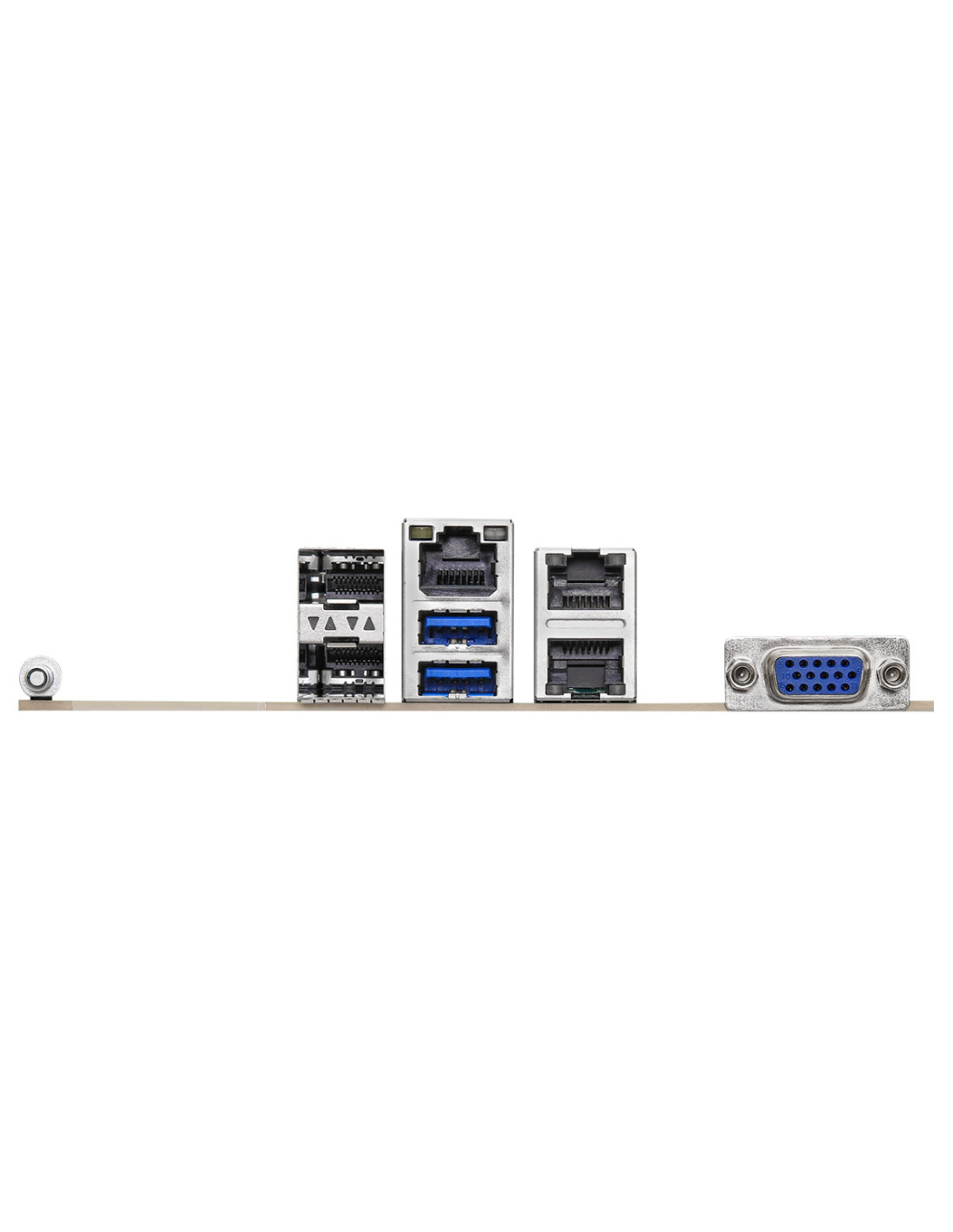

 Rear I/O
UID Button/LED 1 UID button w/ LED
Video Port 1 DB15 (VGA)
USB 3.2 Gen1 Port 2 Type-A (USB3.2 Gen1)
RJ45 2 RJ45 (1GbE)
1 dedicated IPMI
Other network connector 2 SFP28 (25GbE)
 Internal Connector/Headers
Power Connector 1 (4-pin, ATX PSU signal) w/ ATX 24-pin adapter cable, 3 (8-pin, ATX 12V) support 12V DC-in
Other Power Connectors 1 (6-pin) for HDD power
Auxiliary Panel Header 1 (18-pin): chassis intrusion, system fault LED, LAN1/LAN2 activity LED, locate, SMBus
System Panel 1 (9-pin): power switch, reset switch, system power LED, HDD activity LED
COM Header 1
Speaker Header 1 (4-pin)
Buzzer 1
Fan Header 6 (6-pin)
Thermal Sensor Header 1
TPM Header 1 (13-pin, SPI)
SGPIO Header 3
SMBus header 1
PMBus header 1
IPMB Header 1
Clear CMOS 1 (contact pads)
Front Lan LED Connector 1
USB 3.2 (Gen1) Header 1 header (19-pin, 2 USB3.2 Gen1)
NMI Header 1
 LED Indicators
Standby PWR LED 1 (5VSB)
80 Debug Port LED 1
Fan Fail LED 6
BMC heartbeat LED 1
 System BIOS
BIOS Type AMI UEFI BIOS; 256 Mb SPI Flash ROM
BIOS Features ASRock Rack Instant Flash, ACPI 6.4 and above compliance wake up events, SMBIOS 3.5.0 and above, Plug and Play(PnP)
 Hardware Monitor
Temperature CPU, MB, Card side, TR1 Temperature sensing
Fan Fan Tachometer
Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
Fan Multi-Speed Control
Voltage VDDCR_CPU, VDDCR_SOC, VDDIO, VDD_18_S5, VDD_33_S5, VDD_11_S3, +3V, +5V, +12V, +BAT, +1V8SB, 3VSB, 5VSB
 Supported OS
OS Microsoft® Windows:
- Server 2019 (64bit)
- Server 2022 (64 bit)

Linux:
- RedHat Enterprise Linux Server 8.6 (64bit) / Server 9.0 (64bit) / Server 9.4 (64bit)
- SUSE SLES 15.4(64 bit)
- UBuntu 20.04.5 (64 bit) / 22.04.4 (64 bit)

Hypervisor::
- VMWare® ESXi/ 7.0 U3n / 8.0U2b
- CITRIX Hypervisor 8.2.1
 Environment
Temperature Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C
Humidity Non operation humidity: 20% ~ 90% ( Non condensing)
