AM5D4ID-2T/BCM
Last items in stock
$790.90
Tax included

AM5D4ID-2T/BCM

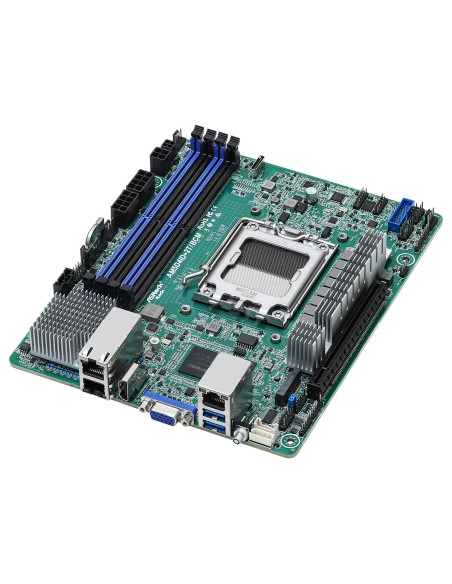

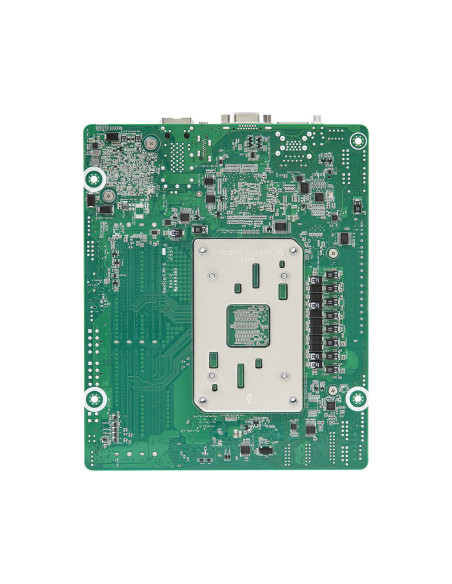

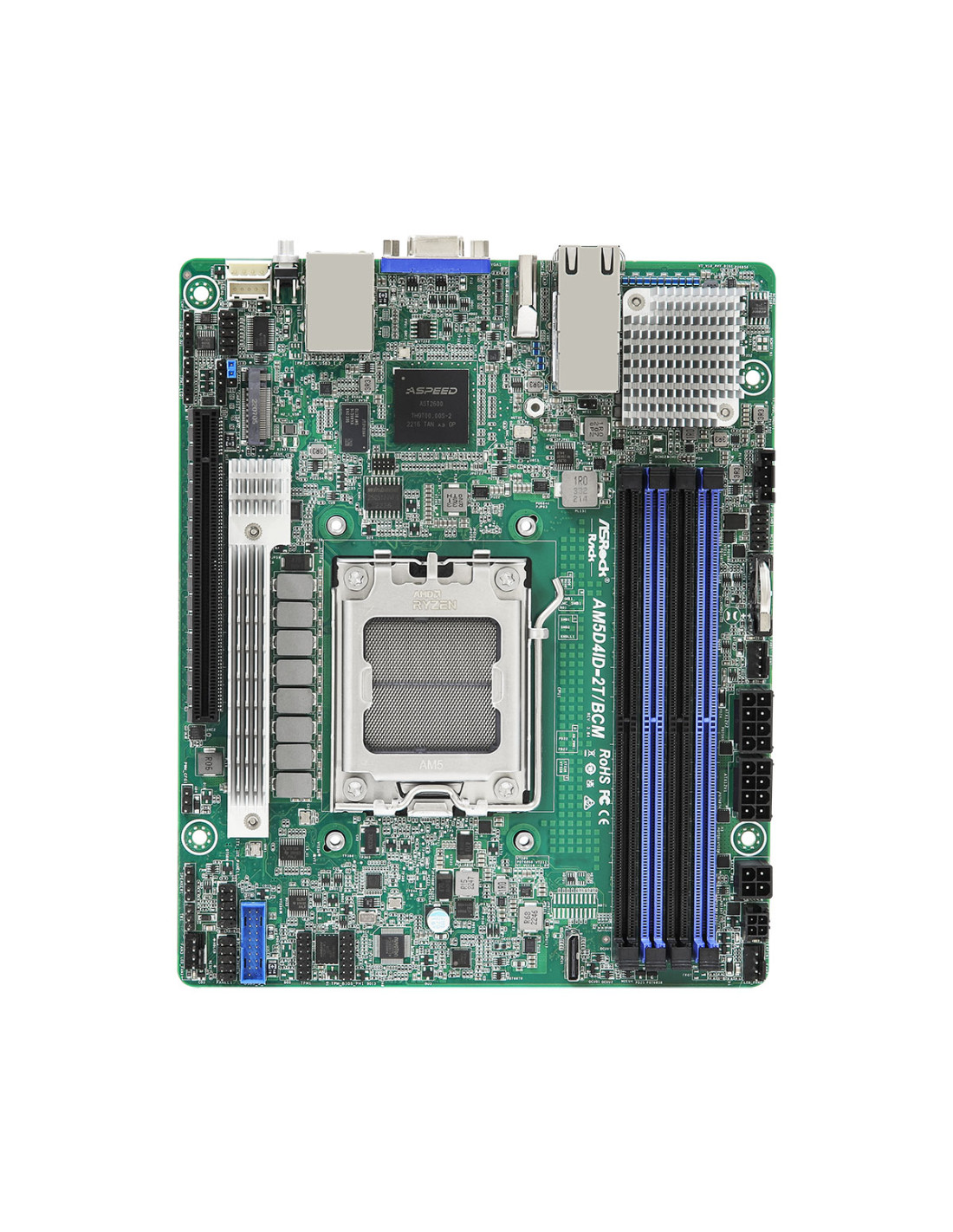

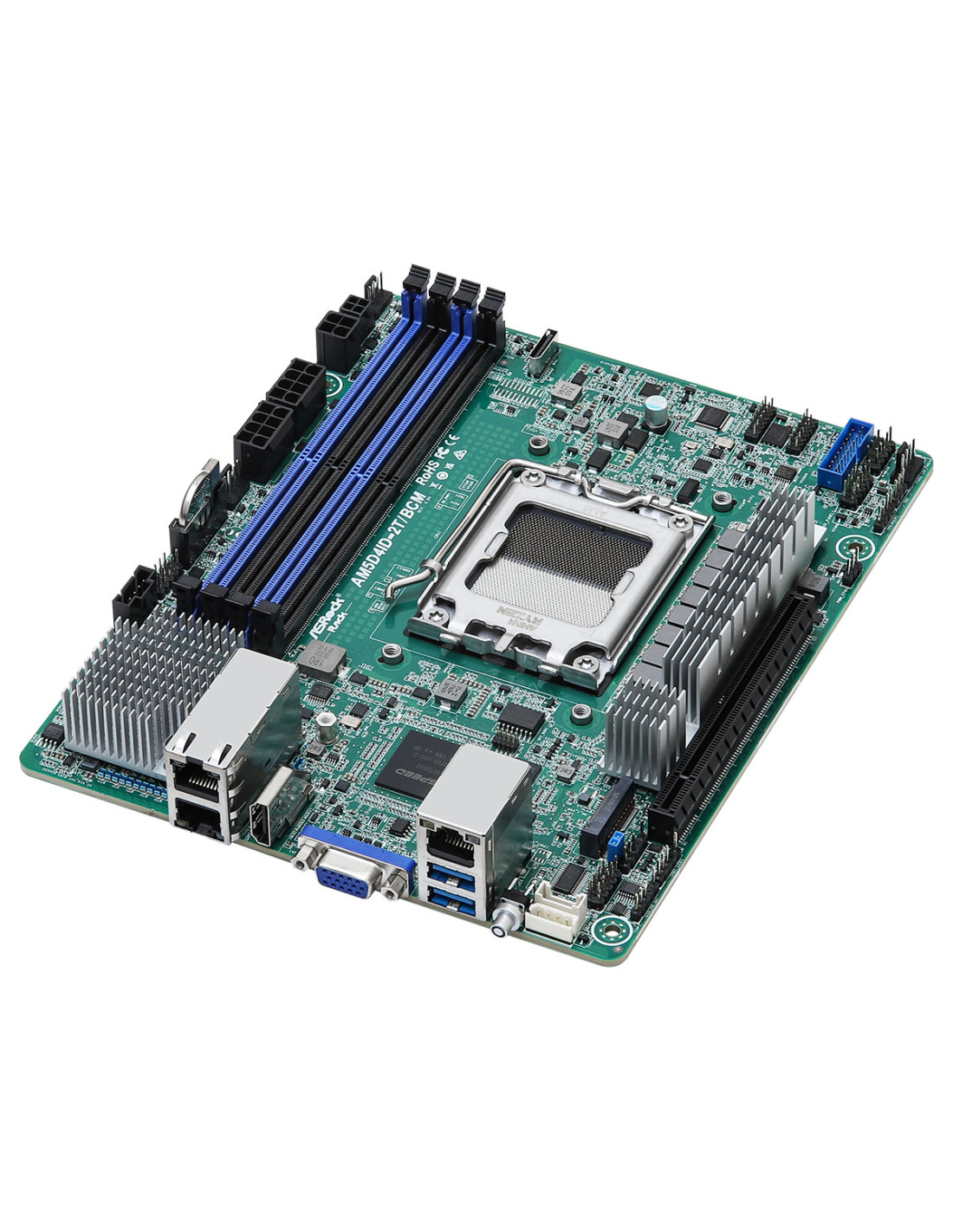

The ASRock Rack AM5D4ID-2T/BCM is an AMD Ryzen server motherboard featuring a deep mini-ITX form factor and dual 10G LAN. It supports AMD EPYC and Ryzen processors, offers multiple expansion slots, and features IPMI for remote management.

Key Features

  • Supports AMD EPYC™ 4005/4004 and AMD Ryzen™ 9000/8000/7000 Series Processors
  • Deep mini-ITX form factor (6.7"x 8.2")
  • 4 DIMM slots (2DPC), supports DDR5 ECC/non-ECC UDIMM
  • Dual 10G LAN by Broadcom BCM57416
  • 1 PCIe5.0 x16
  • 1 OCuLink (PCIe4.0 x2)
  • Supports 1 M.2 (PCIe4.0 x4)
  • 2 RJ45 (10GbE) by Broadcom BCM57416
  • 1 HDMI
  • IPMI for remote management

    Quantity Unit price You Save
    5 $760.10 $154.00

    Related Products & Accessories



    AM5D4ID-2T/BCM - ASRock Rack  Deep Mini-ITX Server Motherboard Socket AM5 Dual 10GbE IPMI

    The ASRock Rack AM5D4ID-2T/BCM is a unique AMD Ryzen server motherboard that stands out with its deep mini-ITX form factor and dual 10G LAN networking capabilities. It supports both AMD EPYC and Ryzen processors ensuring compatibility with a range of configurations. The board is ideal for building compact and high-performance servers and is known for its ability to accommodate riser cards within a 1U chassis. Featuring IPMI for remote management, this server motherboard offers excellent flexibility and control.

    Product Specifications

     Physical Status
    Form Factor Deep mini-ITX
    Dimensions 6.7" x 8.2"
     Processor System
    CPU Supports AMD EPYC™ 4005/4004 and AMD Ryzen™ 9000/8000/7000 Series Processors
    Socket Single Socket AM5 (LGA 1718)
    Thermal Design Power Up to 170W by proper cooling solution
    Chipset AMD X300
     System Memory
    Supported DIMM Quantity 4 DIMM slots (2DPC)
    Supported Type DDR5 288-pin ECC/non-ECC UDIMM
    Max. Capacity per DIMM 48GB
    Max. DIMM Frequency 5600 MHz (1DPC); 3600 MHz (2DPC)
    Voltage 1.1V
     PCIe Expansion Slots (SLOT7 close to CPU)
    PCIe x 16 PCIe5.0 x16 [CPU]
     Other PCIe Expansion Connectors
    M.2 slot 1 M-key (PCIe4.0 x4), supports 2280 form factor [CPU]
    OCuLink 1 OCuLink (PCIe4.0 x2) [CPU]
     Ethernet
    Additional GbE Controller Broadcom BCM57416: 2 RJ45 (10GbE)
     Server Management
    BMC Controller ASPEED AST2600
    IPMI Dedicated GLAN 1 Realtek RTL8211F for dedicated management GLAN
     Graphics
    Controller ASPEED AST2600:
    1 DB15 (VGA)
    AMD Processors with Graphics:
    1 HDMI

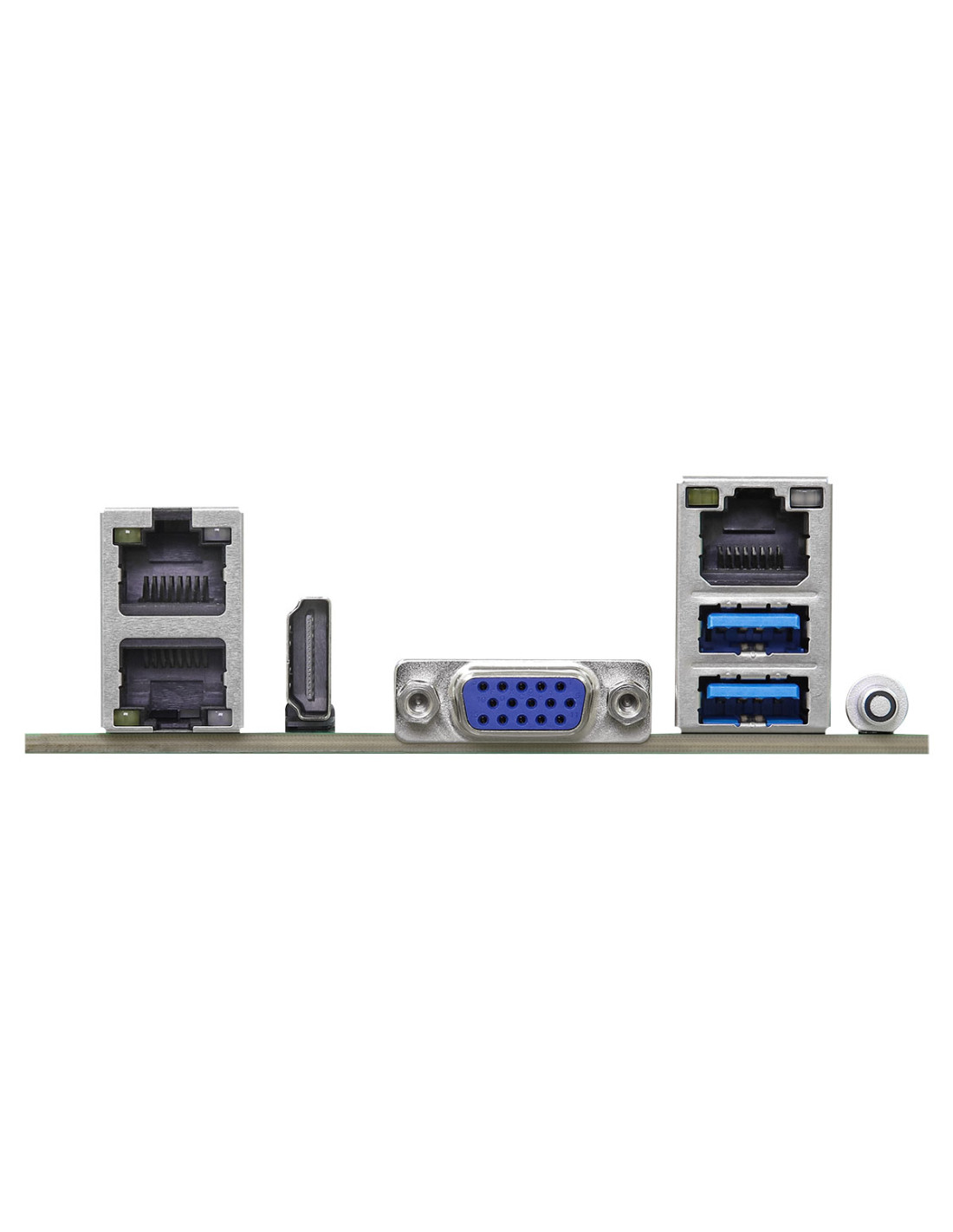

     Rear I/O
    UID Button/LED 1 UID button w/ LED
    Video Port 1 DB15 (VGA), 1 HDMI
    USB 3.2 Gen1 Port 2 Type-A (USB3.2 Gen1)
    RJ45 2 RJ45 (10GbE)
    1 dedicated IPMI
     Internal Connector/Headers
    Power Connector 1 (4-pin, ATX PSU signal) w/ ATX 24-pin adapter cable, 2 (8-pin, ATX 12V) support 12V DC-in
    Other Power Connectors 1 (4-pin) for HDD power when using 12V DC-in power source
    Auxiliary Panel Header 1 (9-pin): chassis intrusion, system fault LED, LAN activity LED
    System Panel 1 (9-pin): power switch, reset switch, system power LED, HDD activity LED
    COM Header 1
    Speaker Header 1
    Fan Header 3 (4-pin)
    Thermal Sensor Header 1
    TPM Header 1 (13-pin, SPI)
    SMBus header 1
    PMBus header 1
    IPMB Header 1
    Clear CMOS 1
    Others 1 UID header (4-pin), 1 NCSI header (4-pin), 1 IPMI LAN LED header (4-pin), 1 80 debug port header (13-pin)
    USB 3.2 (Gen1) Header 1 header (19-pin, 2 USB3.2 Gen1)
     LED Indicators
    Standby PWR LED 1 (5VSB)
    Fan Fail LED 3
    BMC heartbeat LED 1
     System BIOS
    BIOS Type AMI UEFI BIOS; 256Mb (32MB) SPI Flash ROM
    BIOS Features Plug and Play, ACPI 5.1 compliance wake up events, SMBIOS 2.3
     Hardware Monitor
    Temperature CPU, DDR, MB, Card Side
    Fan Fan Tachometer, Multi-Speed Control, CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
    Voltage 3VSB, 5VSB, VCPU, VCCM, APU VDDP, 1.05V_PROM_S5, 2.5V_PROM, 1.05V_PROM_RUN, BAT, 3V, 5V, 12V
     Supported OS
    OS Microsoft® Windows:
    Windows® 10 (64 bit)
    Windows® 11 (64 bit)

    Linux:
    UBuntu 22.04.2 (64 bit)

    * On the Windows® system, Raid mode supports UEFI Boot only.
    * The Linux system doesn't support Raid Mode.
     Environment
    Temperature Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C
    Humidity Non operation humidity: 20% ~ 90% ( Non condensing)
    4711430521060
    AM5D4ID-2T/BCM
