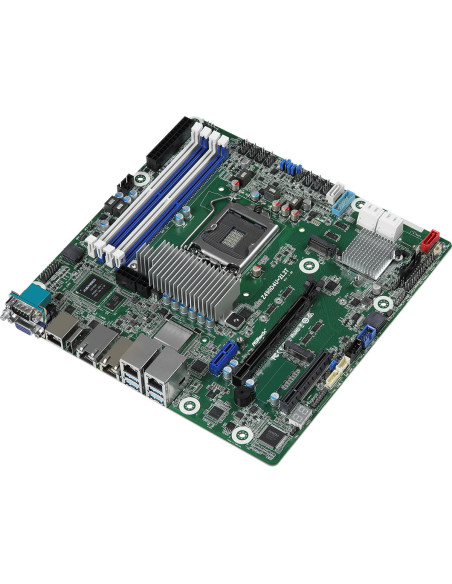

ASRock Rack Intel 10th Gen. Core™ i9/i7/i5/i3 Server Motherboard

Z490D4U-2L2T
Coming Soon!
$1,199.00
Tax included

Z490D4U-2L2T

  1. Support Intel 10th Gen. Core™ i9/i7/i5/i3, Pentium, Celeron Series Processors
  2. Support two channels DDR4 2933*/2666/2400 non-ECC DIMM
  3. Support 6 SATA3 by Intel Z490(1x SATA3 support SATA DOM)
  4. Support 1x PCIe 3.0 x16、1x PCIe 3.0 x8. 1xPCIe 3.0x1
  5. Support 2 x GLAN by Intel i210, 2 x 10G base-T by Intel X710-AT2

ASRock Rack Intel 10th Gen. Core™ i9/i7/i5/i3 Server Motherboard - Z490D4U-2L2T

Cloud-computing server leading manufacturer ASRock Rack announced its new micro-ATX server motherboard solution; the Z490D4U-2L2T supports the latest 10th Gen Intel® Core™ processors and is optimized with the best compatibility and reliability. With supporting unlocked processors and IPMI remote management, Z490D4U-2L2T could be the ideal candidate for cloud gaming server and, high-frequency trading server.

1U General Purpose Server Systems

Z490D4U-2L2T is a compact motherboard providing not only two 1GbE but also incredible dual 10GbE bandwidth via Intel® Ethernet Controller X710-AT2, as well as two M.2 with PCIe3.0 x4 interface supporting Intel® Optane™ Memory Module and Intel® Rapid Storage Technology (Intel® RST) in micro-ATX form factor. While having the HDMI supported by Intel® CPU integrated Intel® UHD Graphics, USB3.2 Gen2 and 6 SATA 6Gb/s connections, Z490D4U-2L2T will also be a perfect fit for the SMB, SOHO NAS, or content creation desktop.

Ethernet Ports
4
No reviews

Specifications

 MB Physical Status
Form Factor - mATX
Dimensions - 9.6'' x 9.6'' (24.4 cm x24.4 cm)
 Processor System
CPU - Support Intel® 10th Gen. Core™ i9/i7/i5/i3, Pentium, Celeron® Series Processors
Chipset - Intel® Z490
 System Memory
Capacity - 4 x 288-pin DDR4 DIMM slots
- Support up to 128GB DDR4 non-ECC UDIMM
Type - Dual Channel DDR4 memory technology
- Supports DDR4 non-ECC UDIMM
DIMM Size Per DIMM - non-ECC UDIMM : 32GB, 16GB, 8GB, 4GB
DIMM Frequency - Non-ECC UDIMM: 2933*/2666/2400 MHz

*Core™ (i9/i7) support DDR4 up to 2933; Core™ (i5/i3), Pentium® and Celeron® support DDR4 up to 2666.
Voltage - 1.2V
 Expansion Slot
PCIe 3.0 x 16 - Slot 6: Gen3 x16 link, auto switch to x8 link if Slot 4 is occupied (Physical x16, EE x16/x8 (from CPU), shared with Slot 4)
PCIe 3.0 x 8 - Slot 4: Gen3 x8 link (Physical x8, EE x0/x8 (from CPU), shared with Slot 6)
PCIe 3.0 x 1 - Slot 7: Gen3 x1 link (Physical x1, EEx1 (from PCH))
 Storage
SATA Controller - 6 x SATA3 6Gb/s (SATA0-5, SATA_0 supports SATA DOM)
 Ethernet
Interface - 10000/1000 /100 Mbps
LAN Controller - 2 x RJ45 GLAN by Intel® i210
- 2 x RJ45 10G base-T by Intel® X710-AT2
- 1 x RJ45 Dedicated IPMI LAN port by RTL8211E
- Supports Wake-On-LAN
- Supports Energy Efficient Ethernet 802.3az
- Supports Dual LAN with Teaming function
- Supports PXE
- LAN1 supports NCSI
 Management
BMC Controller - ASPEED AST2500
IPMI Dedicated GLAN - 1 x Realtek RTL8211E for dedicated management GLAN
Features - Watch Dog
- NMI
 Graphics
Controller - ASPEED AST2500
VRAM - DDR4 256MB

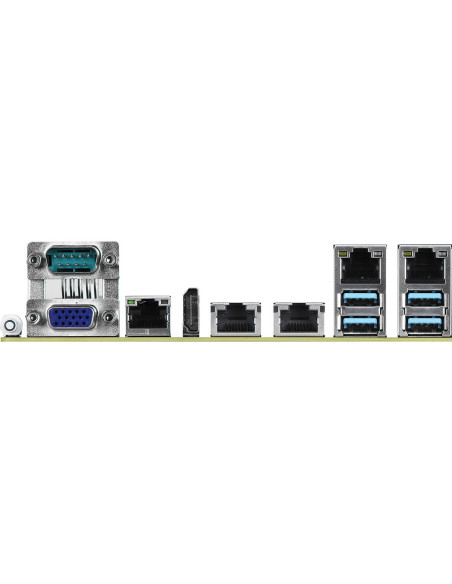

 Rear Panel I/O
HDMI - 1
VGA Port - 1 x D-Sub
USB 3.1 Gen1 Port - 2 Type-A (5Gbps)
USB 3.1 Gen2 Port - 2 Type-A (10Gbps)
Lan Port - 4 +1 RJ45 Gigabit Ethernet LAN ports
- LAN Ports with LED (ACT/LINK LED and SPEED LED)
Serial Port - 1
UID Button/UID LED - 1
 Internal Connector
SATA DOM - 1
M.2 - 2 (M2_1: 2260/2280/22110, Supports PCIE3.0(x4); M2_2:2260/2280, Supports PCIE3.0(x4))*

*The M.2 slot (M2_2) is shared with the PCIE5 slot (BTO). When M2_2 is populated with a M.2 PCIe module, PCIE5 will be disabled.
Front Lan LED Connector - 1
SPI connector - 1
Auxiliary Panel Header - 1 (includes chassis intrusion, location button & LED, and front LAN LED)
TR1 Header - 1
TPM Header - 1
IPMB Header - 1
Buzzer - 1
Fan Header - 7(1CPU/4Front/2Rear)
USB 3.1 (Gen1) Header - 1 (supports 2 USB 3.1 Gen1 ports)
USB 2.0 Header - 1 (supports 2 USB 2.0 ports)
NMI Button - 1
Front Panel - 1 (RST, PWRBTN, HDDLED, PWRLED)
Front VGA Panel - 1
BMC_SMB Header - 1
SGPIO Header - 1
Power Connector - 1x (24-pin) + 1x (8-pin)+ 1x (4-pin)
ME/SPS Recovery - 1
Clear CMOS - 1 (short pin)
PSU SMB Header - 1
 Onboard LED
80 Debug Port LED - 1
Fan Fail LED - 7 (header)
 System BIOS
BIOS Type - 256 Mb AMI UEFI Legal BIOS
BIOS Features - Plug and Play (PnP)
- ACPI 2.0 Compliance Wake Up Events
- SMBIOS 2.8.0 Support
- ASRock Rack Instant Flash
 Hardware Monitor
Temperature - CPU Temperature Sensing
- MB/Card side/TR1 Temperature Sensing
Fan - CPU/Rear/Front Fan Tachometer
- CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
- CPU/Rear/Front Fan Multi-Speed Control
Voltage - Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM, V1.0M,+BAT, 3VSB, 5VSB
 Support OS
OS Microsoft® Windows®
- Win10 (64 bit)
Linux
 Environment
Temperature Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C
