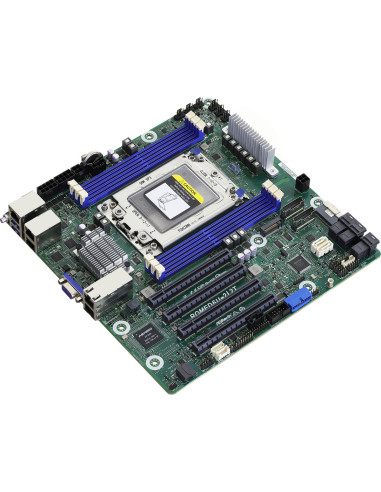

ASRock Rack AMD ROMED6U-2L2T Key Features:
Related Products & Accessories
International buyers, please email us for a shipping quote
| Physical Status | |
| Form Factor | micro-ATX |
| Dimensions | 9.6'' x 9.6'' (24.4 cm x24.4 cm) |
| Processor System | |
| CPU | AMD EPYC™ 7002 and 7001 series processor |
| Socket | Single Socket SP3 (LGA4094) |
| Chipset | System on chip |
| System Memory | |
| Capacity | 6 DIMM slots |
| Type | DDR4 288-pin RDIMM (3200Mhz), LRDIMM (2900Mhz) |
| Voltage | 1.2V |
| Expansion Slot | |
| PCIe 4.0 x 16 | Slot 7: PCIe 4.0 x16 Slot 6: PCIe 4.0 x16 Slot 5: PCIe 4.0 x16 Slot 4: PCIe 4.0 x16 |
| M.2 | 1 M-key (PCIe4.0 x4 or SATA 6Gb/s); support 2280 form factor 1 M-key (PCIe4.0 x4 or SATA 6Gb/s); support 2260 form factor [BTO] |
| Storage | |
| SATA Controller | 14 SATA 6Gb/s: 12 via mini-SAS HD, 2 via SATA 7-pin |
| Slimline for U.2 | 1 (PCIe4.0 x8), 2 (PCIe4.0 x8 or 8 SATA 6Gb/s) |
| Ethernet | |
| Additional GbE Controller | 1 Intel® X710-AT2: 2 RJ45 (10 GbE) 2 Intel® i210: 2 RJ45 (1 GbE) |
| Management | |
| BMC Controller | ASPEED AST2500 |
| IPMI Dedicated GLAN | 1 x Realtek RTL8211E for dedicated management GLAN |
| Graphics | |
| Controller | ASPEED AST2500 |

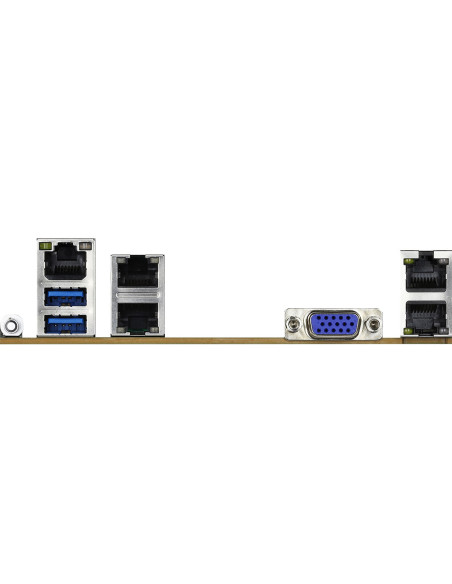

| Rear Panel I/O | |
| VGA Port | 1 DB15 |
| USB 3.2 Gen1 Port | 2 |
| Lan Port | 2 RJ45 (10GbE), 2 RJ45 (1GbE) |
| Dedicate LAN | 1 RJ45 (Dedicated IPMI) |
| UID Button/UID LED | 1 |
| Power connector in Front side | |
| Power connector | 1(4-pin) + 2 (8-pin) support 12V DC-IN, 1 (4-pin) for HDD power |
| Internal Connector | |
| COM Header | 1 |
| Front Lan LED Connector | LAN3/LAN4 LED header |
| Auxiliary Panel Header | 1 (18-pin): chassis intrusion, system fault LED, LAN1/LAN2 activity LED, locate, SMBus |
| TPM Header | 1 (17-pin, LPC) |
| Thermal Sensor Header | 2 |
| IPMB Header | 1 |
| PMBus CONN | 1 |
| Fan Header | 6 (4-pin) |
| NMI Header | 1 |
| System Panel | 1 (9-pin): power switch, reset switch, system power LED, HDD activity LED |
| Speaker Header | 1 |
| BMC_SMB Header | 1 |
| SGPIO Header | 3 |
| CPU HSBP | 1 |
| Clear CMOS | 1 (contact pads) |
| Onboard LED | |
| Standby PWR LED 5vsb | 1 |
| Fan Fail LED | 6 |
| System BIOS | |
| BIOS Type | 32MB AMI UEFI Legal BIOS |
| Hardware Monitor | |
| Temperature | CPU/Car side / MB_A/ MB_B / DDR temperature sensing |
| Fan | Fan Tachometer CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature) Fan Multi-Speed Control |
| Voltage | Voltage Monitoring: Vsoc,Vcpu, VCCM, VPPM, 3v/5v/12v, +BAT, 3VSB, 5VSB, |
| Environment | |
| Temperature | Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C |
The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
