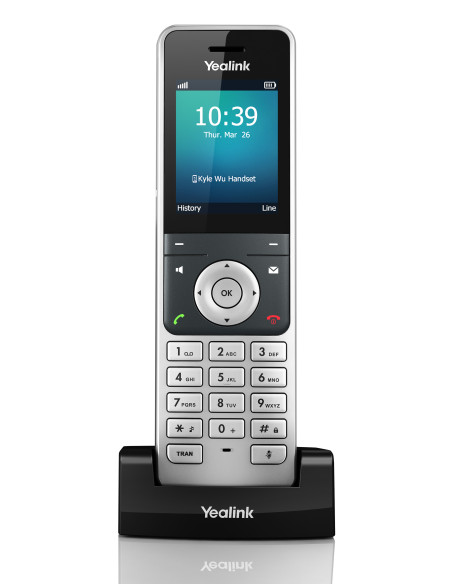

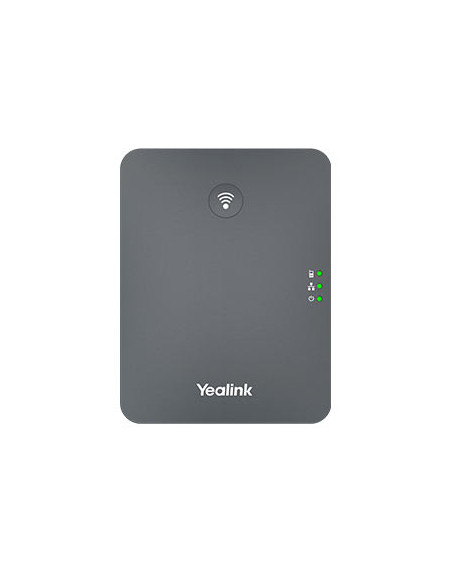

W76P Yealink High-performance DECT IP phone system with user-centric design

W76P-High-performance DECT IP phone system

High-performance DECT IP phone system with user-centric design

• High-performance SIP cordless phone system
• 2.4" 240 x 320 color screen with intuitive user interface
• Up to 20 simultaneous calls
• Up to 10 DECT cordless handsets
• Up to 10 VoIP accounts
• Support Opus audio codec
• Up to 30-hour talk time (in ideal conditions)
• Up to 400-hour standby time (in ideal conditions)
• Quick charging: 10-min charge time for 2-hour talk time
• TLS and SRTP security encryption
• Noise Reduction System
• Headset connection via 3.5 mm jack
• Charger wall mountab

Phone Features

• Up to 20 simultaneous calls
• Up to 10 handsets
• Up to 10 VoIP accounts
• Up to 2 simultaneous calls per handsetUp to 6 repeaters per base station (RT30)
• Handset selection for receiving call
• Handset and number selection for placing call
• Paging, intercom, auto answer, dial plan
• Call hold, call transfer, 3-way conference
• Switching between calls
• Call waiting, mute, silence, DND
• Caller ID with name and number
• Anonymous call/Anonymous call rejection
• Call forward: Always/Busy/No Answer
• Speed dial/Voicemail/Redial
• Message Waiting Indication (MWI)
• Music on hold (server-based)
• Local phonebook for up to 1000 entries (store in
  the base)
• Remote phonebook/LDAP/XML phonebook
• Phonebook search/import/export
• 100 call history per handset: All/Placed/Missed/Received/Forward
• Direct IP call without SIP proxy
• Reset to factory, reboot
• Keypad lock, emergency call
• Broadsoft directory, BroadSoft call log
• Broadworks feature key synchronization
• Shared Call Appearance (SCA)
• XML browser
• Action URI
• Personalization
• 9 ringer melodies
• Screen saver
• Multilingual user interface
• Management
• Auto-provision via TFTP/FTP/HTTP/HTTPS/RPS
• Auto-provision with PnP
• Handset upgrade: OTA (Over-The-Air)
• Configuration: browser/phone/auto-provision
• Trace package and system log export
• Audio Features
• Full-duplex speakerphone
• Hearing Aid Compatibility (HAC) compliant
• Receiver volume control: 5 steps
• Ringer volume control: 5 steps+off
• Multiple advisory tones
• Acoustic warning for low battery status
• DTMF
• Wideband codec: Opus, AMR-WB (optional),G.722
• Narrowband codec: AMR-NB (optional), PC-MU,PCMA, G.726, G.729, G.729A, iLBC
• VAD, CNG, AGC, PLC, AJB
• AEC (supported by W56H)
• Support VQ-RTCPXR (RFC6035), RTCP-XR

Network Features

• SIP v1 (RFC2543), v2 (RFC3261)
• SNTP/NTP
• VLAN (802.1Q and 802.1P)
• 802.1x, LLDP
• STUN Client (NAT Traversal)
• UDP/TCP/TLS
• IP assignment: Static/DHCP
• Support outbound proxy server backupSecurity
• Open VPN
• Transport Layer Security (TLS)
• HTTPS (server/client), SRTP (RFC3711)
• Digest authentication
• Secure configuration file via AES encryption
• Support SHA256/SHA512/SHA384
• Three-level configuration mode: Admin/Var/User
