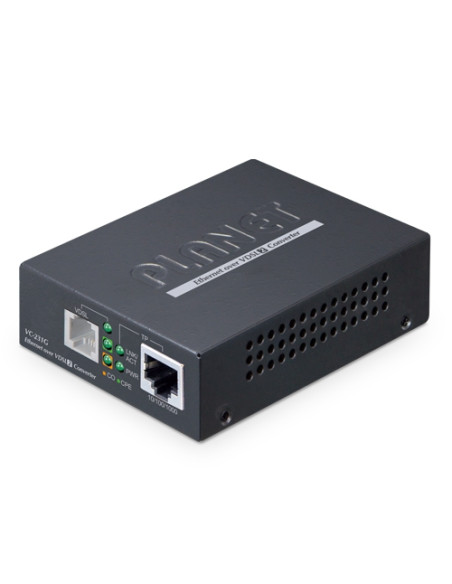

PLANET 10/100/1000T Gigabit Ethernet to RJ11 VDSL2 Converter
PLANET 10/100/1000T Gigabit Ethernet to RJ11 VDSL2 Converter
PLANET 10/100/1000T Gigabit Ethernet to RJ11 VDSL2 Converter
PLANET 10/100/1000T Gigabit Ethernet to RJ11 VDSL2 Converter

Planet 1 Port 10/100/1000T Gigabit Ethernet to VDSL2 Bridge

VC-231G
In Stock
$198.50
Tax included

VC-231G

This Ethernet over VDSL2 Converter from PLANET Technology is a high-performance Gigabit Ethernet-over-VDSL2 Converter that works well with a telephone line network with a symmetric data rate of up to 200/160Mbps (G.INP, Sym, 8dB) over a distance of 300m and 20/12Mbps over a long distance of 1.4km. The VC-231G is based on the two-core networking technology, Gigabit Ethernet and VDSL2 (Very-high-data-rate Digital Subscriber Line 2). VDSL2 technology offers the fastest data transmission speed over the existing copper telephone lines without the need of rewiring.

The minimum purchase order quantity for the product is 2.

Quantity Unit price You Save
4 $188.57 $39.70
10 $182.62 $158.80
20 $180.63 $357.29

Related Products & Accessories



VC-231G - PLANET 10/100/1000T Gigabit Ethernet to RJ11 VDSL2 Converter

High-performance Ethernet over VDSL2

Via the latest VDSL2 technology, PLANET’s VC-231G offers high-speed access to Internet, up to 190Mbps for both upstream and downstream data transmissions. With integrated support for the ITU-T’s new G.993.5 vectoring technology, the VC-231G works in conjunction with vectoring-enabled DSLAMs to remove crosstalk interference and improve maximum line bandwidth across the existing copper infrastructure.

Implementing with Existing Telephone Copper Wires

The VC-231G is also a Long Reach Ethernet (LRE) converter providing one RJ45 Ethernet port and one RJ11 phone jack, which is for VDSL2 connection. Use the additional splitter from the package of the VC-231G to share the existing phone line with POTS, thus replacing the existing copper wiring is not necessary. Just plug the VC-231G with the additional splitter into the existing RJ11 telephone jack and a high-performance VDSL2 network can be connected. It is ideal for use as an Ethernet extender to an existing Ethernet network.

Delivering High-demanding Service Connectivity for ISP/Triple Play Devices

The VC-231G provides an excellent bandwidth demand for triple play devices, home entertainment and communication. With the asymmetric data transmission of 220/120Mbps (G.INP, Asym, 8dB), the VC-231G enables many multi-media services to work on the local Internet, such as VoD (video on demand), voice over IP, video phone, IPTV, Internet caching server, distance education, and so on.

Easy and Flexible Installation

The Ethernet-over-VDSL2 converter comes with a plug-and-play design and is fully compatible with many network protocols. The operating status of each individual port and the whole system can be watched via the rich diagnostic LEDs on the front panel. The VC-231G offers two modes, CPE and CO, for application — CPE mode is used at client side and CO mode is at central side. The CPE or CO mode can be adjusted by using a built-in DIP switch. For point-to-point connection, a CPE mode VC-231G and a CO mode VC-231G must be set up as one pair of converters to perform the connection.

ADSL2+ Fallback

For those ISPs that still provide ADSL broadband service, the VC-231G can support transmission rates up to 24Mbps downstream and 1Mbps upstream with the ADSL2+ technology. The VC-231G establishes a connection with ISP and can be also directly switched over to VDSL2 after the ISP network upgrade.

Note: Please be advise that this unit is not compatible with NBN network since they made the changes and require UNI-DSL VDSL2 Equipment. If you aren't sure about compatibility, please email us or use chat to confirm.

Technical Specifications


Hardware Specifications
Hardware Version 2
LAN Ports 1 10/100/1000BASE-T RJ45 auto-MDI/MDI-X port
VDSL Port 1 VDSL2 RJ11 female phone jack
Twisted-pair telephone wires (AWG-24 or better) up to 1.4km
DIP Switch & Functionality 4-position DIP switch

CO or CPE mode selectable
Selectable G.INP and interleaved mode
Selectable target Band plan
Selectable target SNR mode
Phone Port Additional splitter for POTS connection
Dimensions (W x D x H) 94 x 70.3 x 26.2 mm
Weight 196g
Power Requirements DC 5V, 2A external power
LED Indicators 1 x power: Green
1 x 10/100/1000BASE-T LNK/ACT: Green
1 x VDSL: Green
1 x CO: Green
1 x CPE: Green
Housing Metal
Installation Wall-mount or DIN-rail installation (optional)
Switch Specifications
Switch Processing Scheme Store-and-Forward
Address Table 1K entries
Maximum Packet Size 1522 bytes
Standards Conformance
VDSL Compliance VDSL-DMT

ITU-T G.993.1 VDSL
ITU-T G.997.1
ITU-T G.993.2 VDSL2 (Profile 17a/30a/35b support)
ITU-T G.993.5 G.vectoring
ITU-T G.998
G.INP
ADSL Compliance Capable of ADSL2/2+ standard

ITU G.992.3 G.dmt.bis
ITU G.992.5 G.dmt.bisplus

Data Rate: Up to 24Mbps
Standards Compliance IEEE 802.3 Ethernet
IEEE 802.3u Fast Ethernet
IEEE 802.3ab Gigabit Ethernet
IEEE 802.1p Class of Service
ITU-T G.993.1 VDSL
ITU-T G.997.1
ITU-T G.993.2 VDSL2 (Profile 17a/30a/35b support)
ITU-T G.993.5 G.Vectoring & G.INP
ITU-T G.998
Regulatory Compliance FCC Part 15 Class A, CE
Environment
Temperature Operating: 0~50 degrees C
Storage: -10~70 degrees C
Humidity Operating: 5~95% (non-condensing)
Storage: 5~95% (non-condensing)
Performance
Performance* (Downstream / Upstream)
Interleave, Asym, 8dB Interleave, Asym, 12dB
200M → 260Mbps/56Mbps
400M → 180Mbps/53Mbps
600M → 111Mbps/48Mbps
800M → 68Mbps/39Mbps
1000M → 53Mbps/18Mbps
1200M → 42Mbps/8Mbps
1400M → 24Mbps/4Mbps		 200M → 267Mbps/57Mbps
400M → 161Mbps/49Mbps
600M → 93Mbps/46Mbps
800M → 56Mbps/33Mbps
1000M → 47Mbps/14Mbps
1200M → 34Mbps/8Mbps
1400M → 30Mbps/6Mbps
Interleave, Sym, 8dB Interleave, Sym, 12dB
200M → 175Mbps/180Mbps
400M → 109Mbps/130Mbps
600M → 75Mbps/93Mbps
800M → 50Mbps/65Mbps
1000M → 37Mbps/33Mbps
1200M → 26Mbps/22Mbps
1400M → 20Mbps/13Mbps		 200M → 165Mbps/172Mbps
400M → 107Mbps/115Mbps
600M → 65Mbps/82Mbps
800M → 43Mbps/55Mbps
1000M → 31Mbps/29Mbps
1200M → 21Mbps/16Mbps
1400M → 12Mbps/8Mbps
G.INP, Asym, 8dB G.INP, Asym, 12dB
200M → 316Mbps/60Mbps
400M → 185Mbps/56Mbps
600M → 110Mbps/51Mbps
800M → 68Mbps/38Mbps
1000M → 51Mbps/18Mbps
1200M → 39Mbps/10Mbps
1400M → 37Mbps/6Mbps		 200M → 291Mbps/60Mbps
400M → 161Mbps/51Mbps
600M → 91Mbps/44Mbps
800M → 55Mbps/34Mbps
1000M → 47Mbps/15Mbps
1200M → 35Mbps/8Mbps
1400M → 32Mbps/2Mbps
G.INP, Sym, 8dB G.INP, Sym, 12dB
200M → 187Mbps/190Mbps
400M → 108Mbps/134Mbps
600M → 74Mbps/95Mbps
800M → 50Mbps/66Mbps
1000M → 34Mbps/35Mbps
1200M → 24Mbps/22Mbps
1400M → 21Mbps/13Mbps		 200M → 174Mbps/184Mbps
400M → 99Mbps/119Mbps
600M → 63Mbps/84Mbps
800M → 40Mbps/55Mbps
1000M → 30Mbps/30Mbps
1200M → 22Mbps/18Mbps
1400M → 20Mbps/10Mbps
* The performance data above is for reference only. The actual data rate will vary depending on the quality of the copper wire and environmental factors.
Device Features
TAA Compliant
Max. Distance
300m
Max. Speed
D 200/U 160 Mbps (G.INP, Sym, 8dB)
VDSL Profile
17a, 30a
VDSL Standard
ITU-T G.993.2 VDSL2, ITU-T G.993.5 G.vectoring
4711605282826
VC-231G
