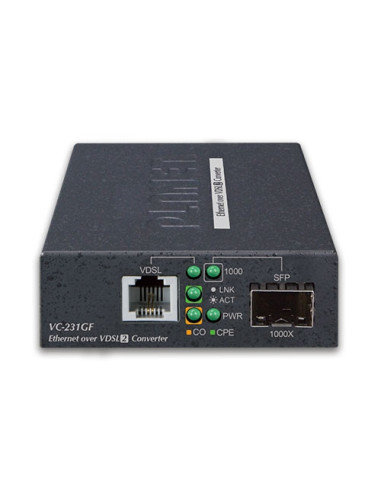

Planet 1000X SFP Gigabit Ethernet to RJ11 VDSL2 Converter

VC-231GF

The VC-231GF realizes ISPs (internet service providers) and SIs (system integrators) to deploy Gigabit Ethernet optical fiber cables in the front of the building or subscriber’s house and provide high-speed triple play services over existing telephone wire. They can simply upgrade their current networks without any difficulty.  Besides, its compact-sized metal housing makes the installation in a telecom box convenient.

Fiber-Optic Link Capability Enables Extension of FTTx Deployment

With the built-in 1000BASE-X SFP (small form-factor pluggable) fiber interface, the VC-231GF supports different optic types for network extension and the distance can be up to 120 km through the fiber connection. Thus, building a network solution of FTTH (Fiber to the Home), FTTC (Fiber to the Curb) for ISPs or FTTB (Fiber to the Building) becomes so easy when long-distance deployment is employed.

VDSL2 Delivering High-demanding Service Connectivity for ISP/Triple Play Devices

The VC-231G provides an excellent bandwidth demand for the triple play devices for home entertainment and communication. Via the latest VDSL2 (Very-high-data-rate Digital Subscriber Line 2) technology, the VC-231GF offers selectable asymmetric/symmetric data rate capability. It works well with a pervasive telephone line network with a symmetric data rate of up to 150/150Mbps (G.INP, Sym, 8dB) over a distance of 300m and 25/15Mbps over a long distance of 1km. The VC-231G enables many multi-media services to work on the local Internet, such as VoD (video on demand), voice over IP, video phone, IPTV, Internet caching server, distance education, and so on.

Versatile, Flexible and Easy Installation

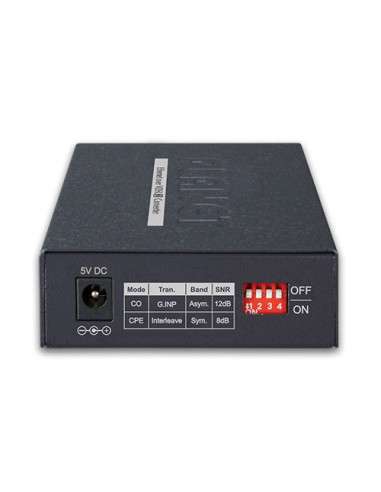

PLANET Gigabit Ethernet-over-VDSL2 converters come with a Plug and Play design. The VC-231GF offers two operation modes, CPE for client side and CO for central side. The CPE or CO mode can be adjusted by using a built-in DIP switch.

For point-to-point connection, the VC-231GF’s CO mode and the VC-231G’s, VC-234G’s or VDR-301N’s CPE mode must be set up as one pair of converters to perform the connection. It gives administrators the ability to reply a fresh local Intranet in various locations by utilizing the original network structure without additional costs.

Implementing with Existing Telephone System

Use the additional splitter from the package of the VC-231GF to share the existing phone line with POTS, thus replacing the existing copper wiring is not necessary. Just plug the VC-231GF with the additional splitter into the existing RJ11 telephone jack and a high-performance VDSL2 network can be connected. It is ideal for use as an Ethernet extender to an existing Ethernet network.
