The UniFi UAP-AC-Lite Enterprise WiFi Access Point from Ubiquiti Networks is a scalable enterprise access point solution designed to be easily deployed and managed, especially for use in schools, universities, companies, large buildings, hospitals, etc. It supports the 802.11ac Wi-Fi standard with speeds of up to 867Mb/s in the 5GHz radio band and up to 300Mb/s in the 2.4GHz radio band. This WiFi system offers simultaneous dual-band operation with 2x2 MIMO technology for each band. It has a range of up to 120m and 1 Gigabit Ethernet port. This UniFi AP has a sleek design and can be easily mounted to a ceiling tile or wall using the included mounting hardware.
The WUnifi UAP-AC-Lite includes UniFi Controller software that can be installed on a PC, Mac or Linux machine within the network and is easily accessible through a standard web browser. Using the UniFi Controller software, an Enterprise WiFi network can be quickly configured and administered without any special training. Real-time status, automatic UAP device detection, map loading, and advanced security options are all seamlessly integrated in the system.

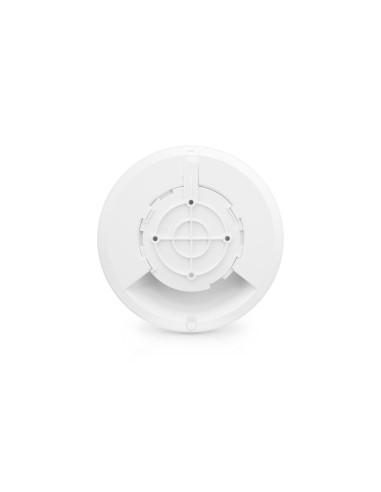

UAP-AC-Lite - Ubiquiti UniFi Lite Dual Band 2x2 Access Point
The UniFi UAP-AC-Lite delivers 5x the performance of first-generation UniFi Access Points while still maintaining Ubiquiti's pricing strategy.
The UniFi AC Lite AP features a cleaner design in a reduced footprint – half the size compared to the standard UniFi AP.
The UniFi Controller v5 software is a powerful, enterprise wireless software engine ideal for high-density client deployments requiring low latency and high uptime performance. With its software-based capabilities, the UniFi virtual control plane allows for unlimited scalability under one centralized controller. Remotely access the UniFi Controller to upgrade deployed UniFi APs while in the field.
UniFi APs can run by themselves without the controller unless features like guest portal is enabled (as UniFi controller also functions as a captive portal). Restarting the controller won't restart your APs.
Networking Interface: (1) 10/100/1000 Ethernet Ports
Antennas: (2) Dual-Band Antennas, 3 dBi Each
Max TX Power: 2.4GHz: 20 dBm - 5GHz: 20 dBm
Wifi Standards: 802.11 a/b/g/n/ac
Power Method: Passive Power over Ethernet (24V), (Pairs 4, 5+; 7, 8 Return)
Power Supply: 24V, 0.5A Gigabit PoE Adapter
Maximum Power Consumption: 6.5W
BSSID: Up to Four Per Radio
Power Save: Supported
Wireless Security: WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
Mounting: Wall and Ceiling
- Product includes Australian AU-style power cable
- Antenna Gain (dBi)
- 3, 3
- Device Features
- Mountable, PoE Powered, Mountable
- Device Type
- Access Point
- Wireless System
- 5GHz, 2.4GHz
- Ethernet Ports
- 1, 1
