Ubiquiti UniFi Express Cloud Gateway WiFi 6 Access Point
Ubiquiti UniFi Express Cloud Gateway WiFi 6 Access Point
Ubiquiti UniFi Express Cloud Gateway WiFi 6 Access Point
Ubiquiti UniFi Express Cloud Gateway WiFi 6 Access Point

Ubiquiti UniFi Express Cloud Gateway WiFi 6 Access Point

UX
*** Out of stock ATM, Available On Backorder ***
$253.00
Tax included

UX

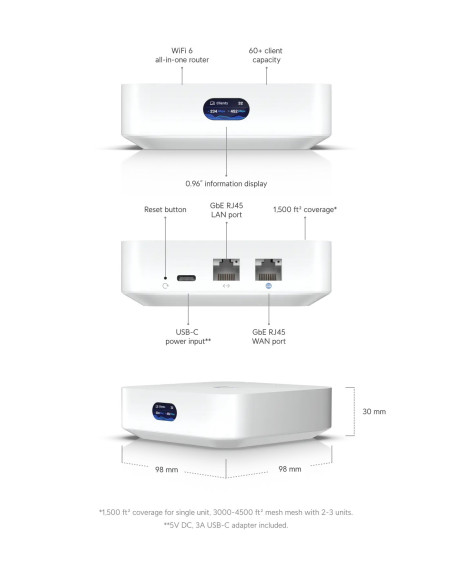

Impressively compact UniFi Cloud Gateway and WiFi 6 access point that runs UniFi Network. Powers an entire network or simply meshes as an access point.

Features:

  • Built-in WiFi 6 AP

  • 140 m² (1,500 ft²) single-unit coverage

  • 50+ connected WiFi devices*

  • (1) GbE RJ45 WAN port

  • (1) GbE RJ45 LAN port to extend network

  • 0.96" LCM status display

  • Manages up to four additional UniFi Network devices when operated as a gateway

  • Managed with UniFi Network 8.0.7 and later



UX - Ubiquiti UniFi Express Cloud Gateway WiFi 6 Access Point

Technical Specifications
Mechanical
Dimensions 98 x 98 x 30 mm (3.6 x 3.6 x 1.2")
Weight 302 g (10.7 oz)
Enclosure material Polycarbonate
Hardware
Management interface Ethernet
Bluetooth
Networking interface LAN:
(1) GbE RJ45 port

WAN:
(1) GbE RJ45 port
Power method USB type C (5V DC/3A)
Max. power consumption 10W
Max. TX power
2.4 GHz
5 GHz

22 dBm
25 dBm
MIMO
2.4 GHz
5 GHz

2 x 2 (DL/UL MU-MIMO)
2 x 2 (DL/UL MU-MIMO)
Throughput rate
2.4 GHz
5 GHz

573.5 Mbps
2.4 Gbps
Antenna gain
2.4 GHz
5 GHz

4 dBi
5.15 dBi
Antennas (2) Internal 2.4G/5G WiFi dual-band antenna
(1) Internal 2.4G single-band BT antenna
LCM display 0.96" status display
Button Factory reset
Operating temperature -10 to 45° C (14 to 113° F)
Operating humidity 5 to 95% noncondensing
Certifications CE, FCC, IC
Software
WiFi standards 802.11a/b/g/n/ac/ax
Wireless security WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
BSSID Console mode: 3 per band
Standard AP: 8 per band
VLAN 802.1Q
Advanced QoS Per-user rate limiting
Guest traffic isolation Supported
Concurrent clients 60+
Zero wait DFS Yes
Supported Data Rates
802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b 1, 2, 5.5, 11 Mbps
802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n (WiFi 4) 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
802.11ac (WiFi 5) 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
802.11ax (WiFi 6) 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
Application Requirements
UniFi Network Version 8.0.7 and later
Device Features
Managed
0810084692035
UX
