Create the endpoint of a high-performance, Point-to-Point (PtP) bridge or network backhaul.
Pair an airFiber® X antenna with an airFiber X radio to create the endpoint of a high-performance, Point-to-Point (PtP) bridge or network backhaul (airFiber X radio sold separately). The airFiber X antenna delivers 2x2, dual-polarity performance. On the right is one example of how the airFiber X antenna with an airFiber X radio can be deployed as endpoints in a backhaul link to deliver bandwidth from a WISP network out to a neighborhood tower. From there, an airMAX® Sector antenna with a Rocket® radio delivers bandwidth to the WISP’s customers.

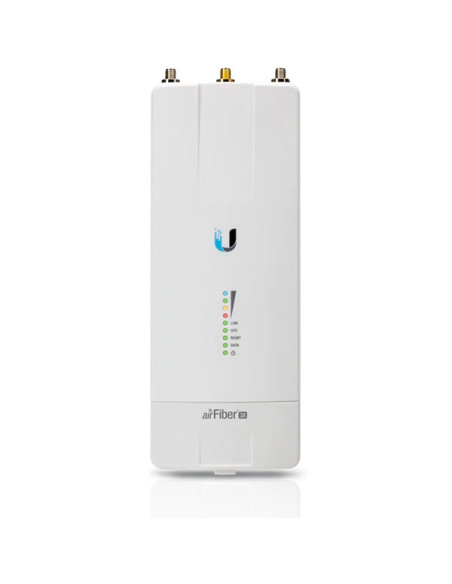

The AF-3X features industry-leading spectral efficiency, line‑rate data packet processing for up to 500+ Mbps of real data throughput, and innovative xtreme Range Technology (xRT™) for up to 200+ km in range.
Related Products & Accessories
Product Features:
| airFiber 3 GHz Radio | |
|---|---|
| Dimensions Radio Box |
224 x 82 x 48 mm (8.82 x 3.23 x 1.89") 261 x 107 x 107 mm (10.28 x 4.21 x 4.21") |
| Weight Radio Box |
0.35 kg (0.77 lb) 1.1 kg /2.473 lb) |
| GPS Antenna | External, Magnetic Base |
| RF Connecstors | (2) RP-SMA Weatherproof (CH0, CH1) (1) SMA Weatherproof (GPS) |
| Operating Frequency | 3300-3900 MHz (Dependent on Regulatory Region) |
| Power Supply | 24V, 1A PoE Gigabit Adapter (Included) |
| Power Method | Passive Power over Ethernet Pins 1, 2, 4, 5 (+) and Pins 7, 8, 3, 6 (-) |
| Maximum Power Consumption | 17W @ Max. Power/Duty Cycle |
| Supported Voltage Range | +18 to +54VDC |
| Mounting |
airFiber X Mount (Rocket Mount Compatible) |
| Certifications | CE, FCC, IC |
| Operating Temperature | -40 to 55° C (-40 to 131° F) |
| Interface | |

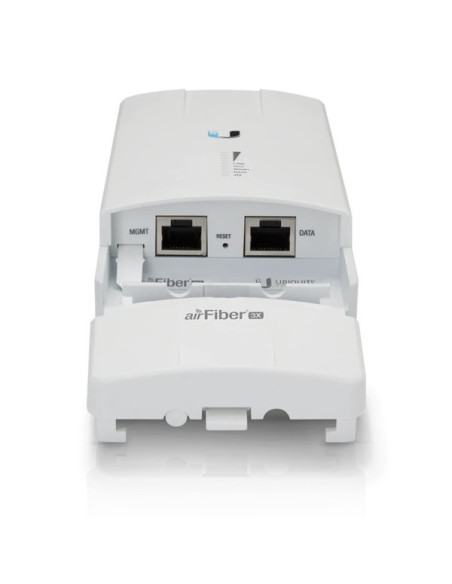

| Data Port | (1) 10/100/1000 Ethernet Port |
| Configuration Port | (1) 10/100 Ethernet Port |
| System | |
| Processor | INVICTUS IC |
| Maximum Throughput | 687 Mbps |
| Maximum Range | 200+ km |
| Encryption | 128-bit AES |
| Operating System | airOS F |
| Packets per Second | 1+ Million |
| Wireless Modes | Master/Slave |
|
Latency Half Duplex Mode |
< 2 ms at Full Throughput |
| MTU (Maximum Transmission Unit) | Up to 9600 |
| Radio Frequency | |
| Max TX Power | 29 dBm (Dependent on Regulatory Region) |
| Frequency Accuracy | ± 2.5 ppm without GPS Synchronization ± 0.2 ppm with GPS Synchronization |
| Channel Bandwidth | 3.5/5/7/10/14/20/28/30/40/50/56 MHz Selectable Programmable Uplink and Downlink Duty Cycles Independently Programmable TX and RX Frequencies |
