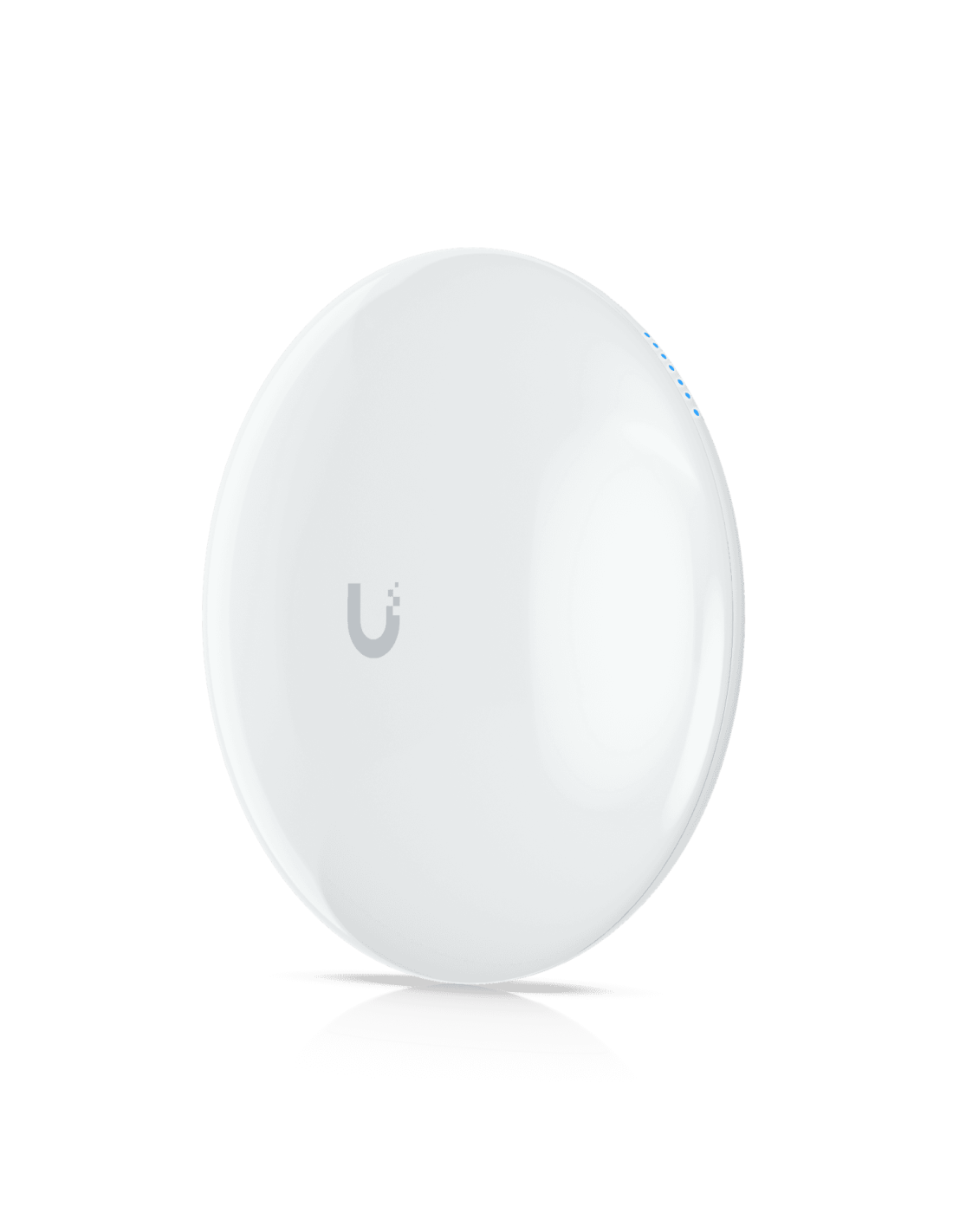

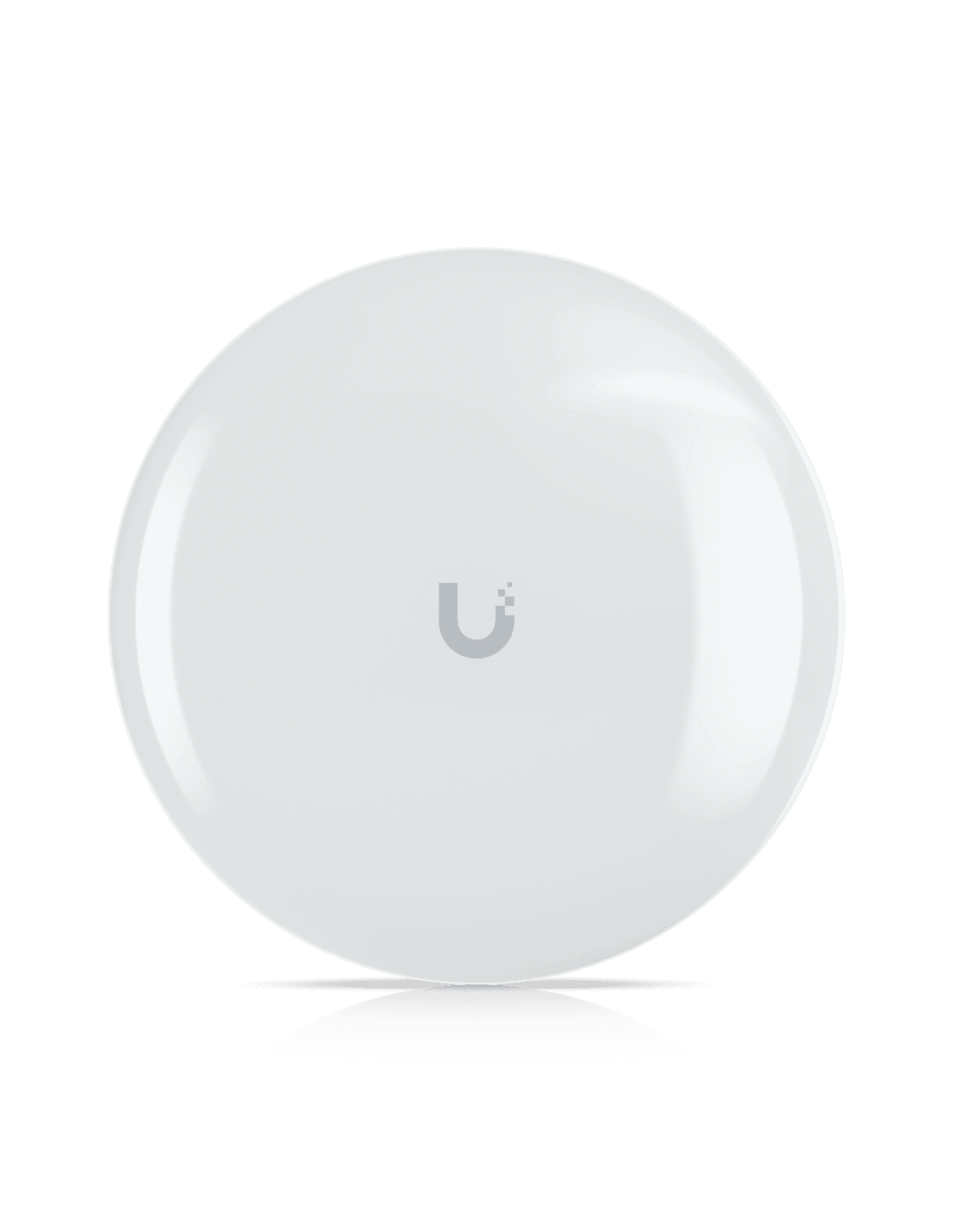

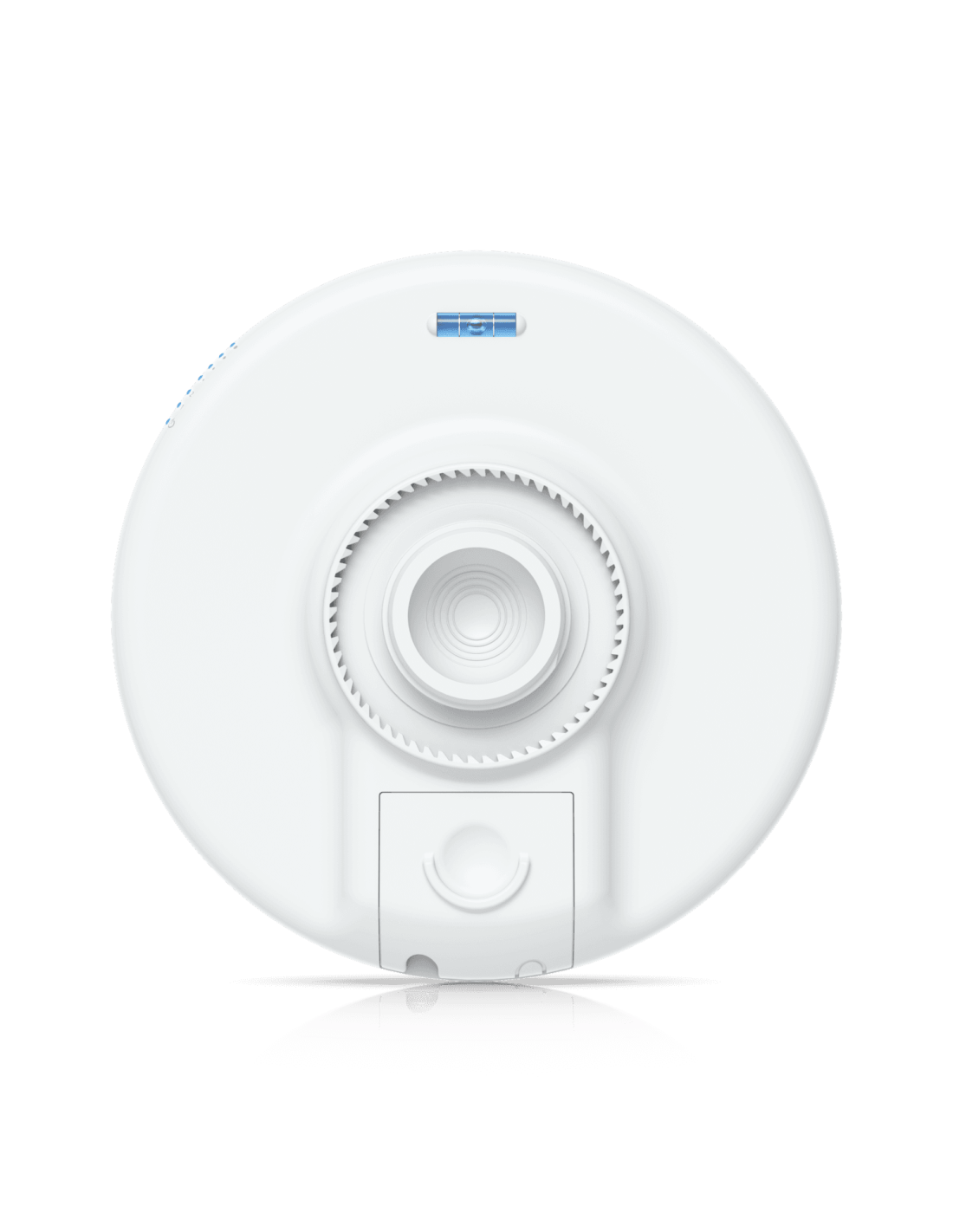

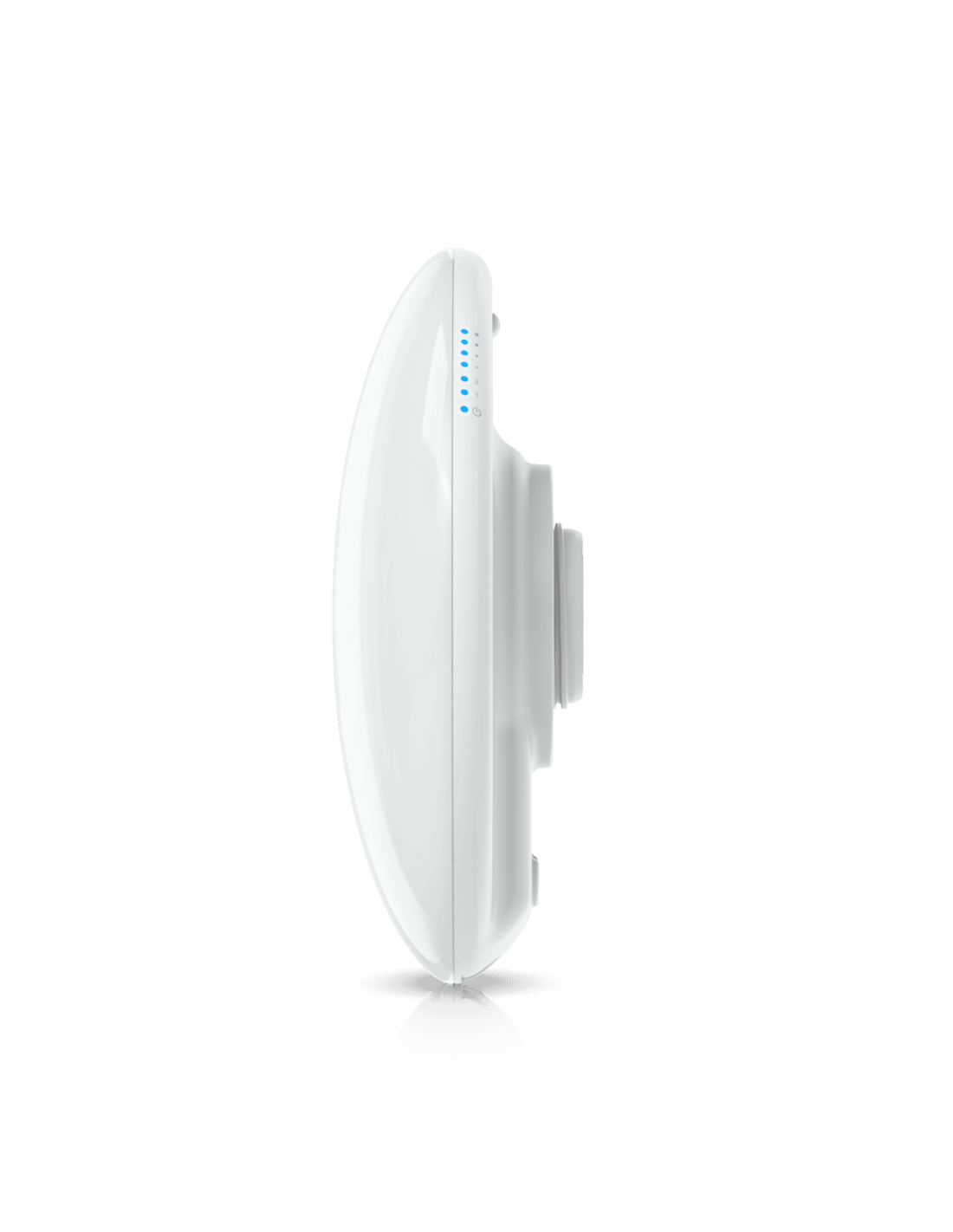

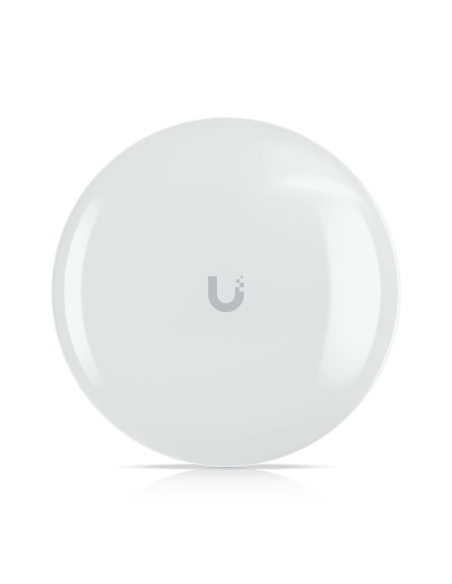

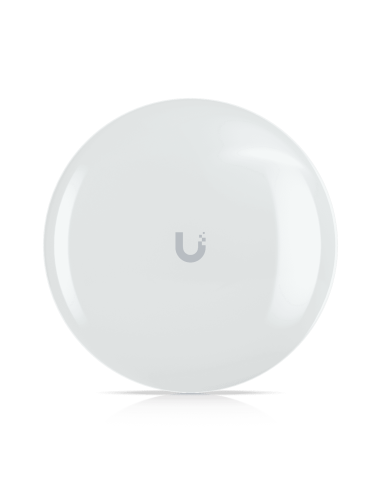

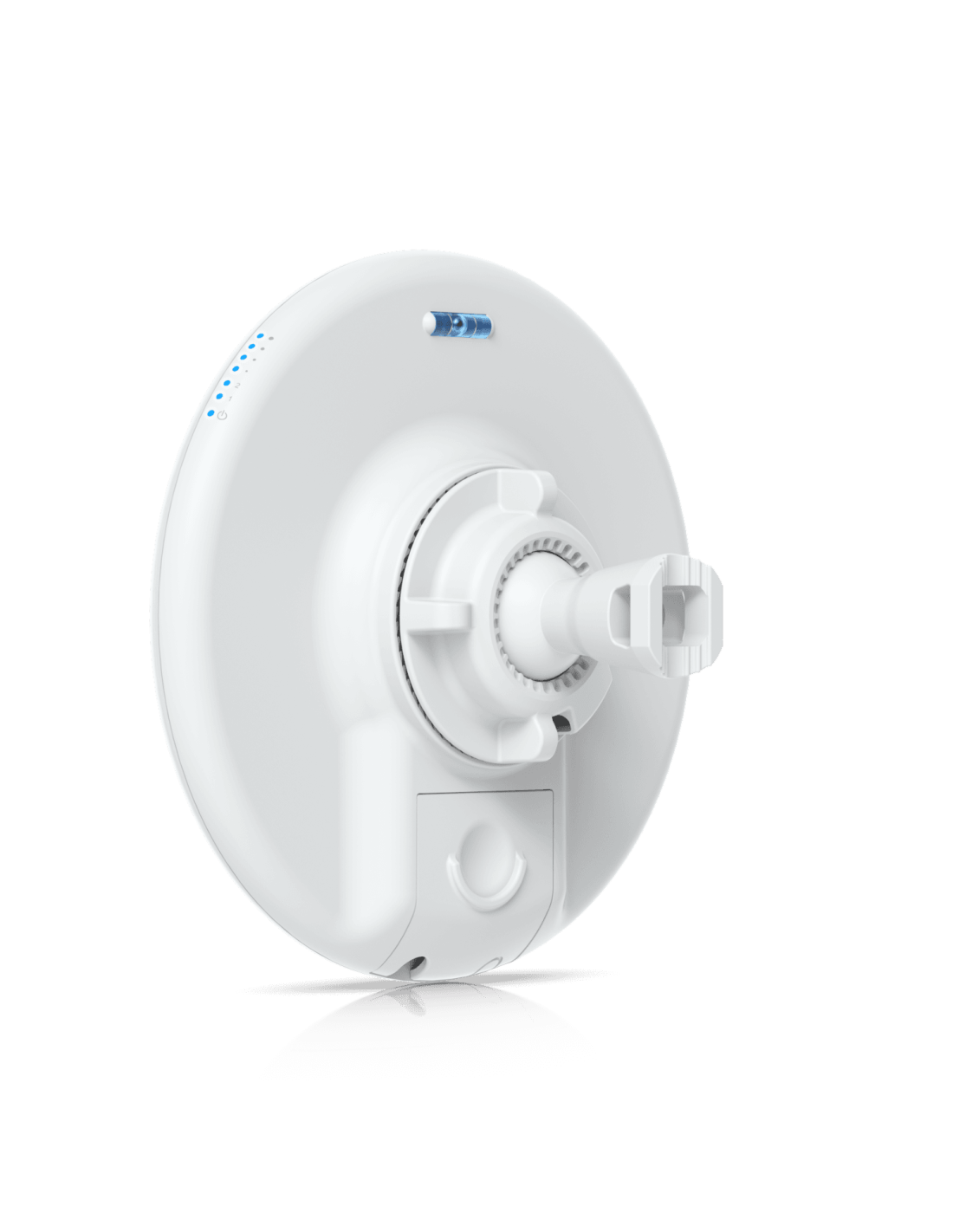

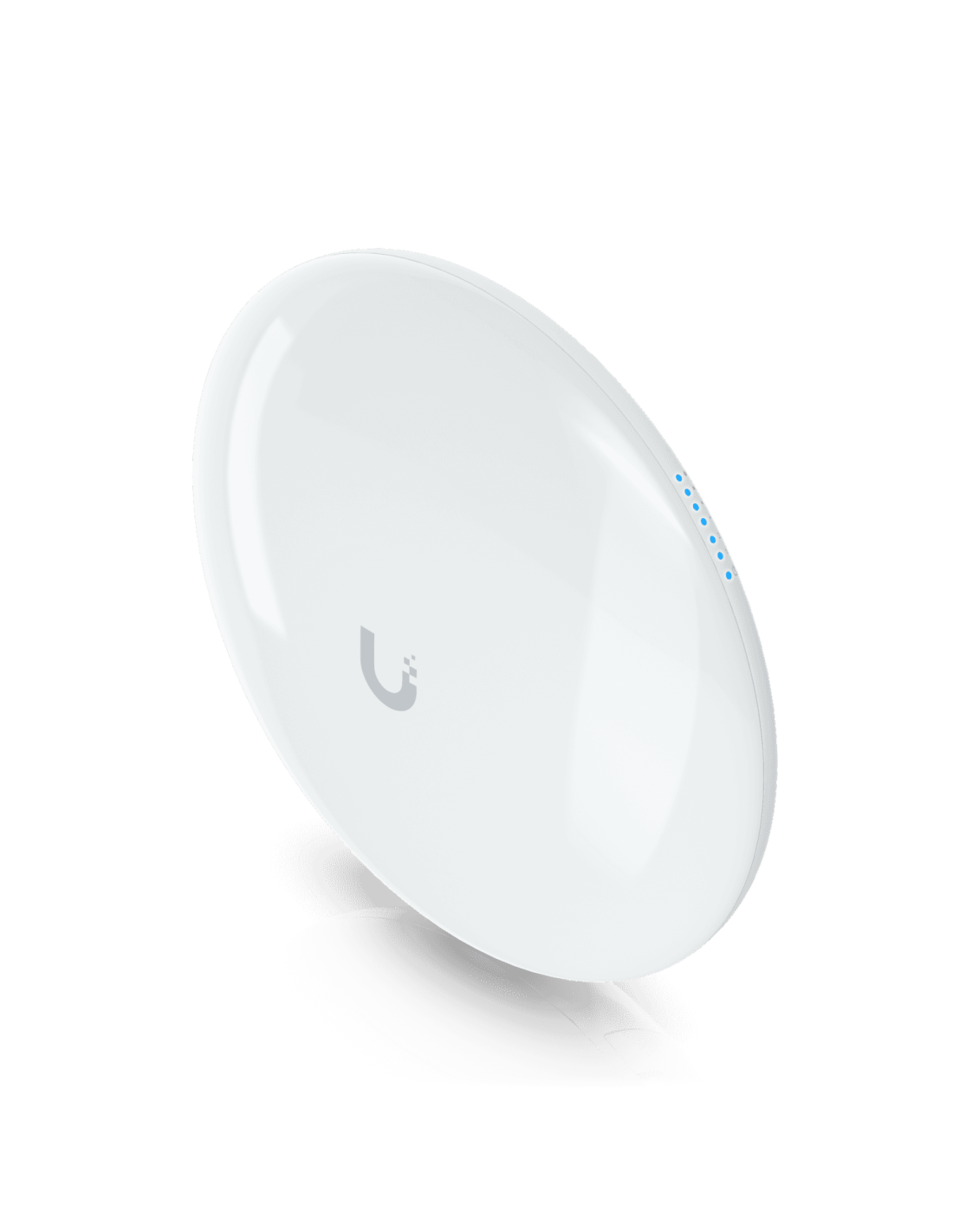

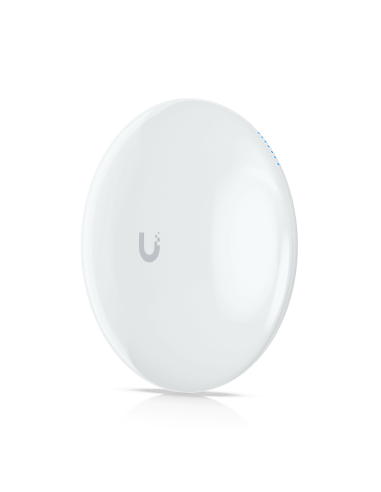

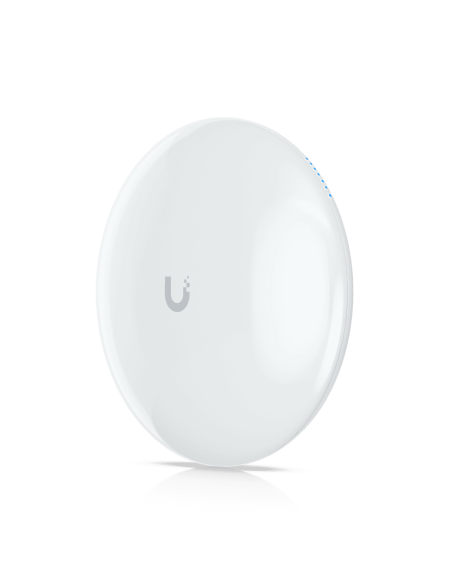

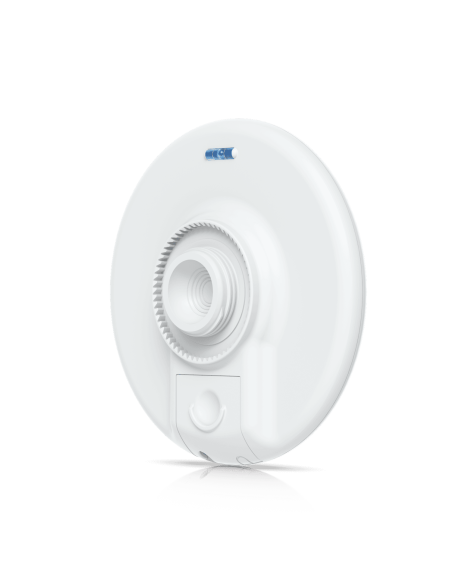

Ubiquiti UniFi UDB-Pro Device Bridge Pro

Name: Ubiquiti UniFi UDB-Pro Device Bridge Pro
Brand: Ubiquiti
SKU: UDB-Pro
Price: 360.8 AUD
Availability: InStock

Reference UDB-Pro

In Stock

$360.80

Tax included

UDB-Pro

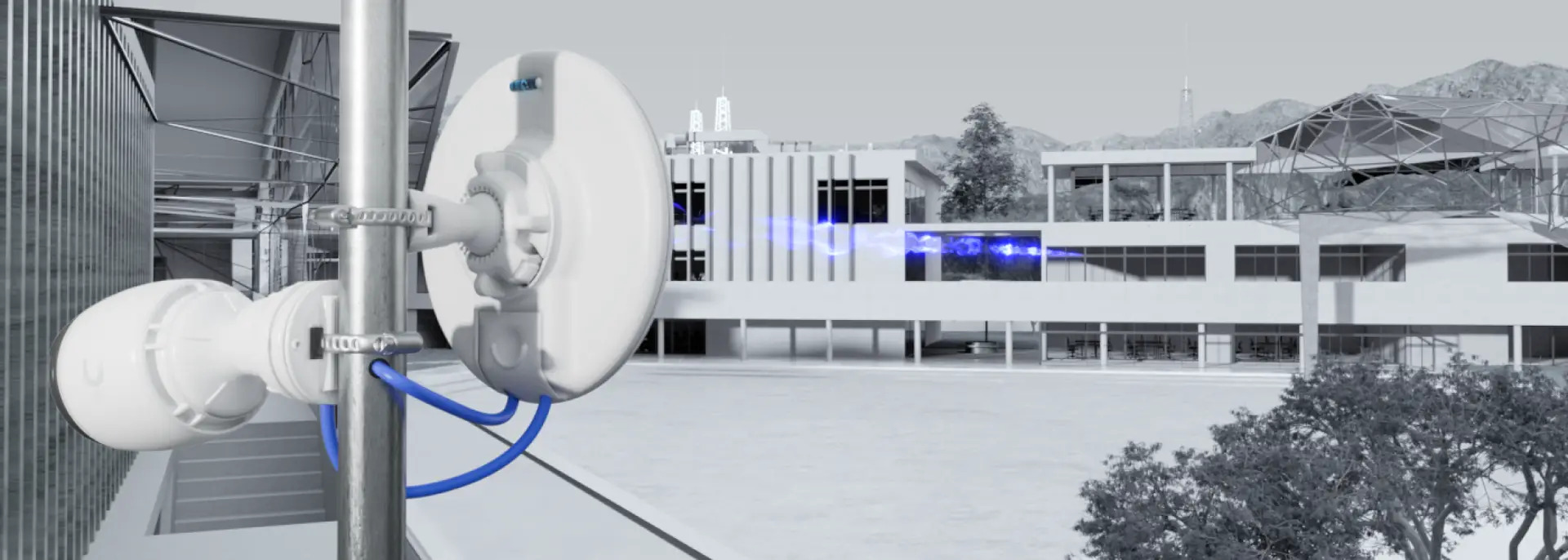

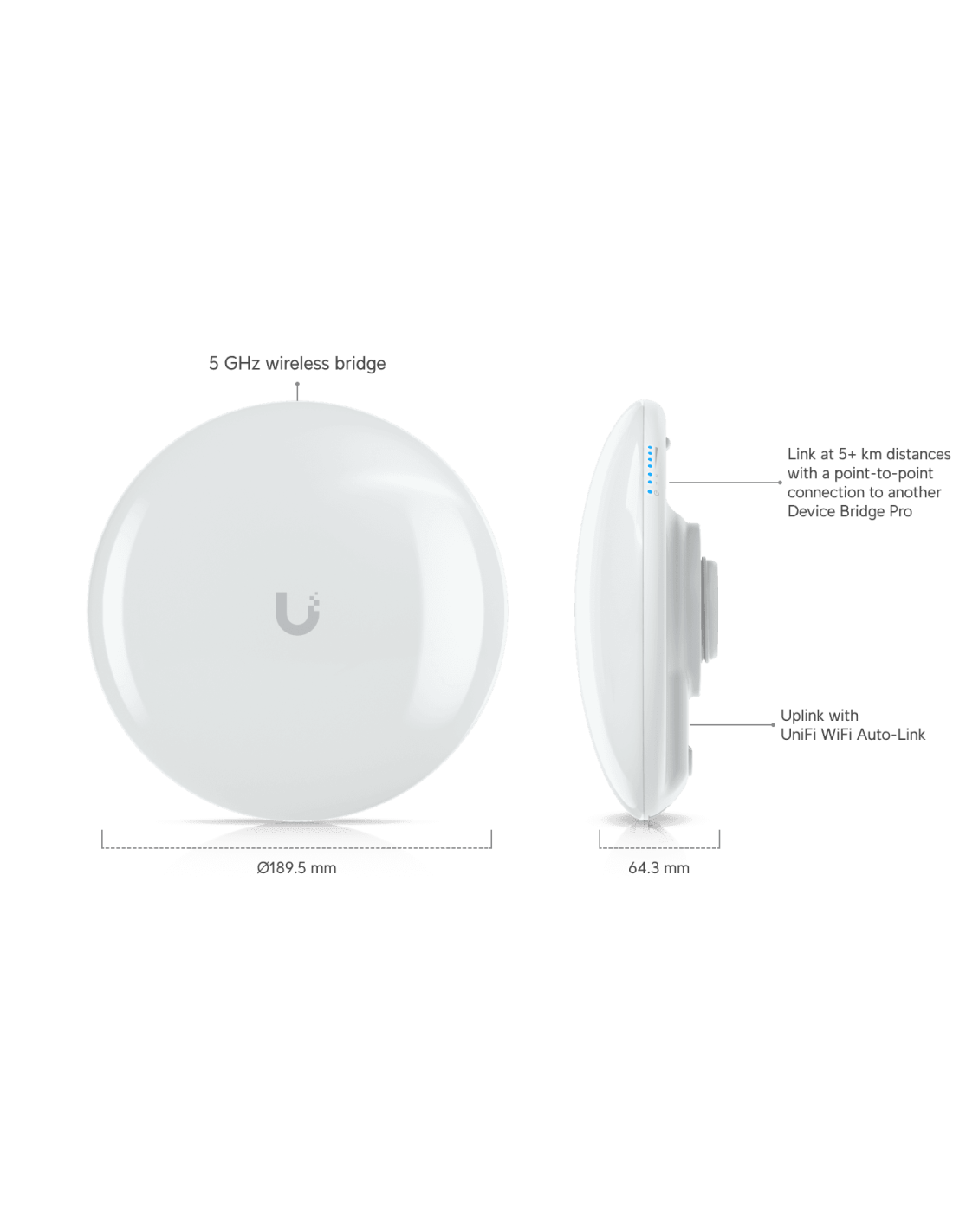

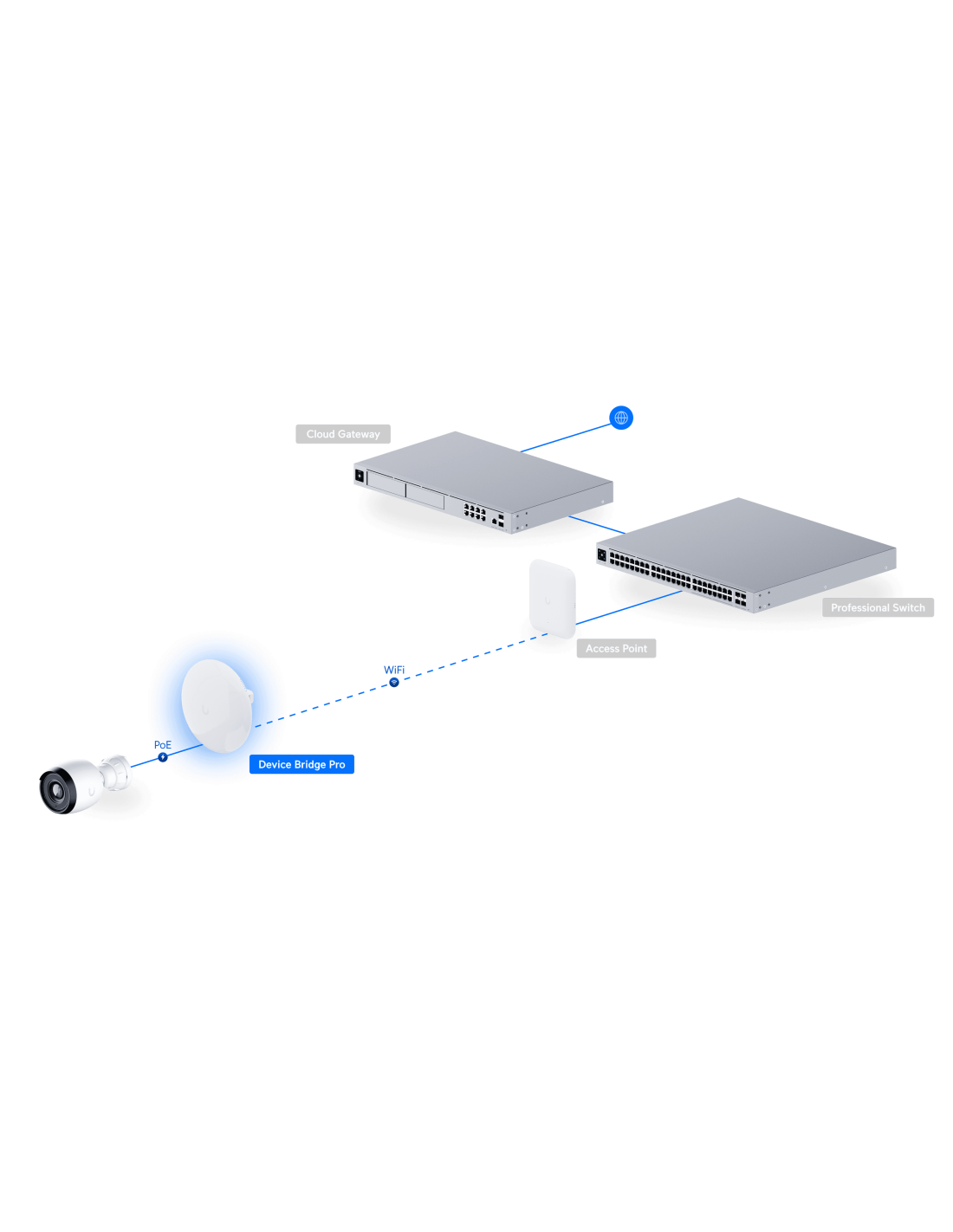

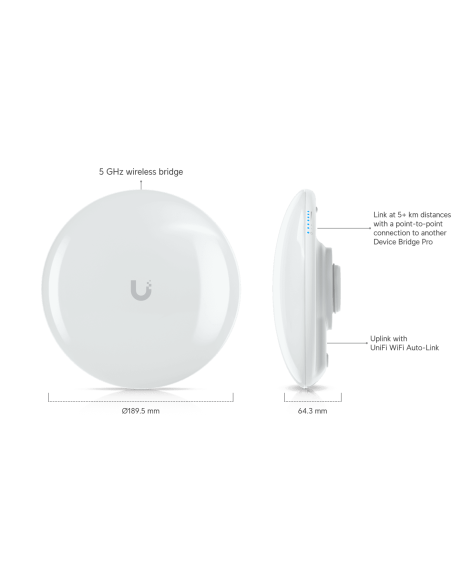

5 GHz wireless bridge with PoE output that connects at 5+ km distances or seamlessly uplinks to UniFi WiFi.

Note. Cannot be set up standalone and must be managed by a UniFi Console, Official UniFi Hosting, or a Self-Hosted UniFi Network Server.

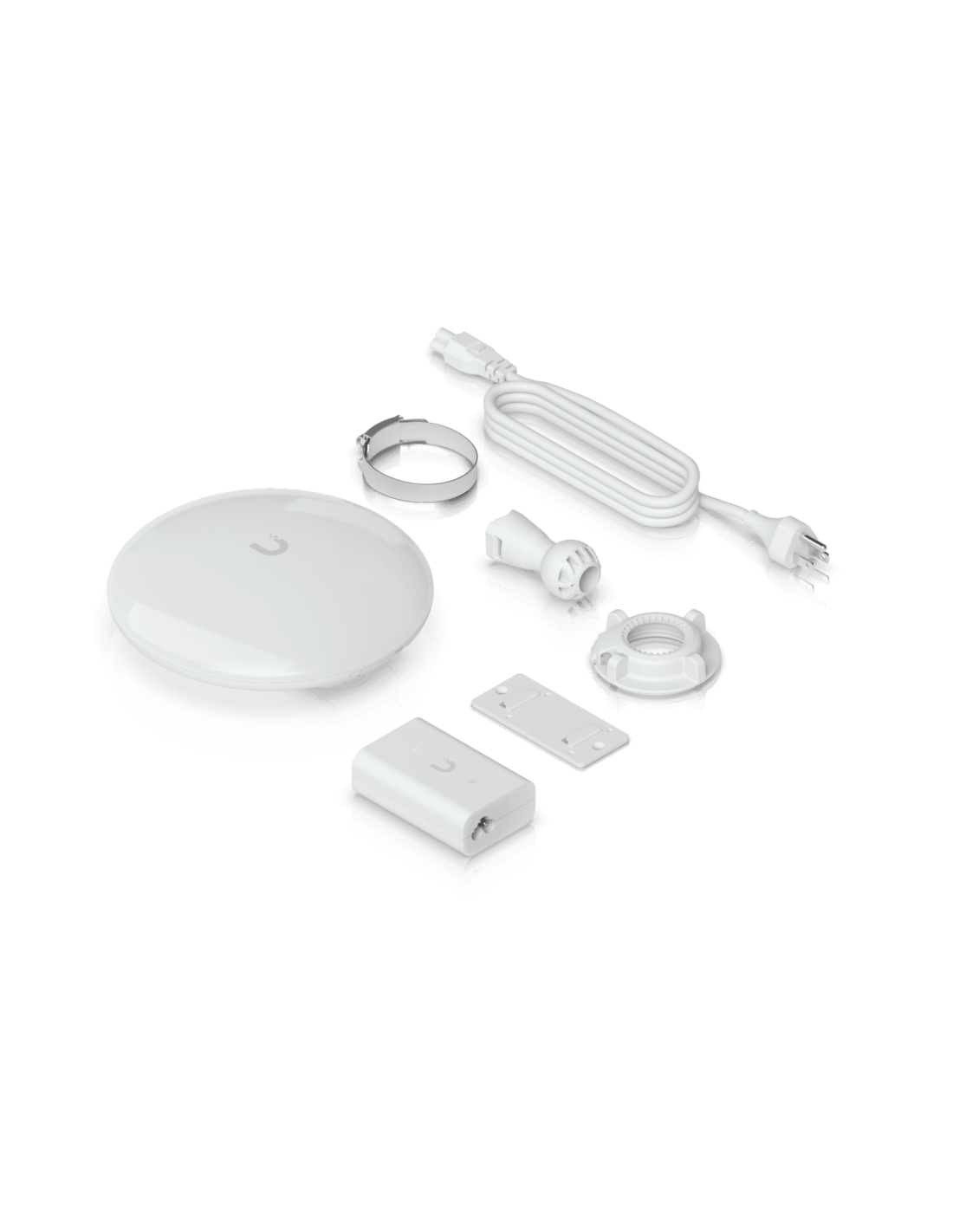

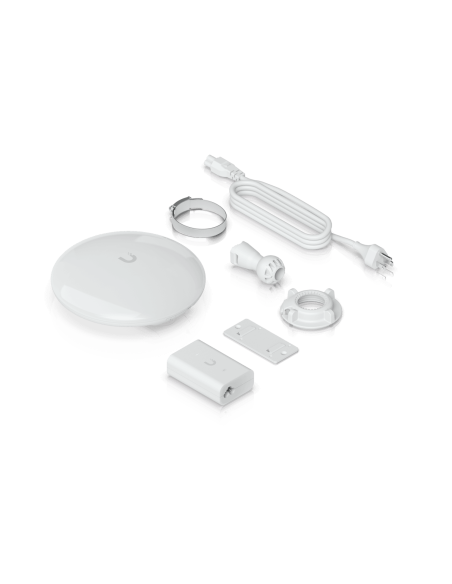

PoE adapter included. PoE+ input required for PoE passthrough.

Accessories

ETH-SP-G2 Ubiquiti 1000Mbit Ethernet Surge Protector

$25.33

Mount Options

Ubiquiti Quick-Mount

$41.84

Ubiquiti UniFi UDB-Pro Device Bridge Pro

Dimensions

Ø189.5 x 64.3 mm (Ø7.4 x 2.5")

WiFi Standard

WiFi 5

Spatial Streams

2

Coverage Area

5 km (3.1 mi)

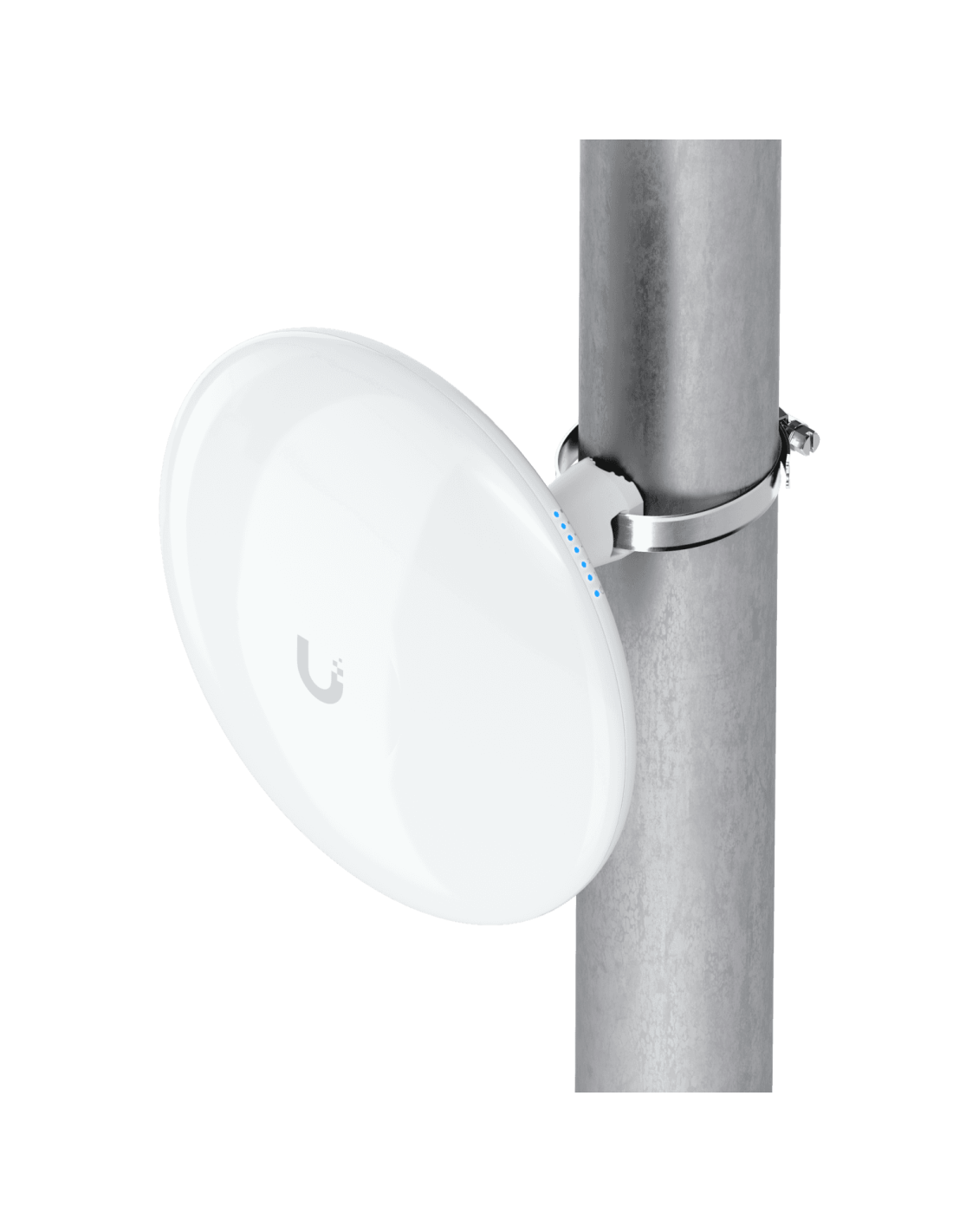

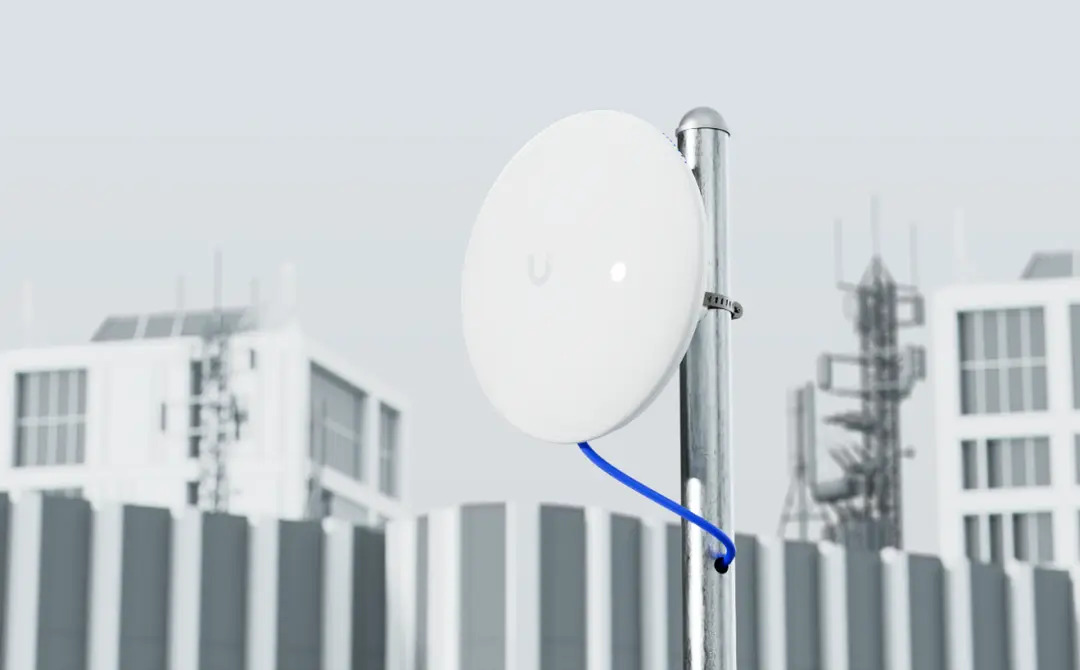

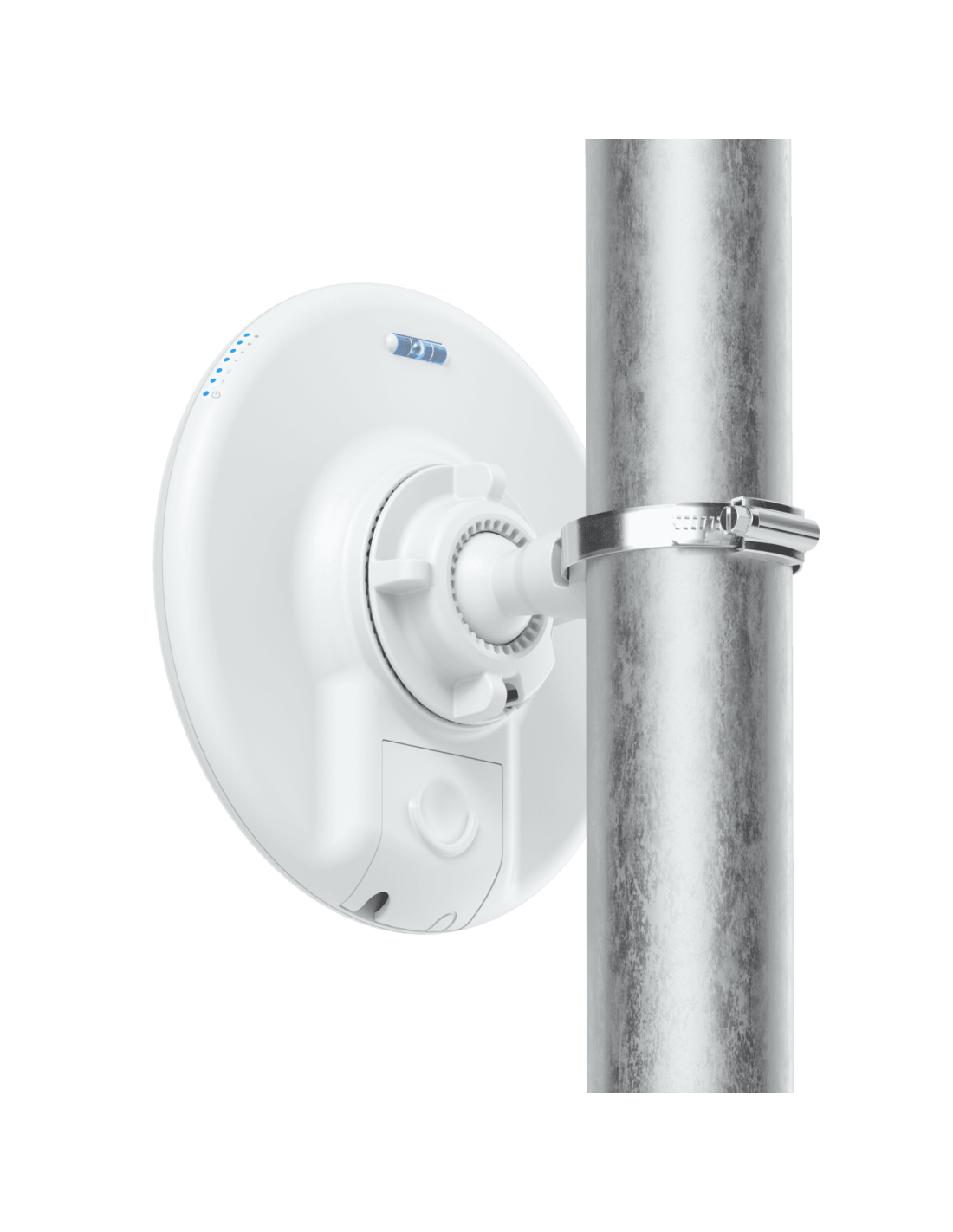

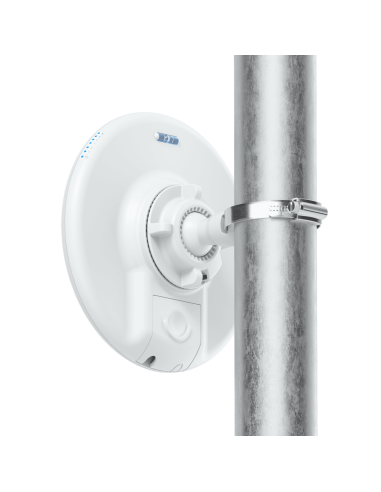

Mounting Locations

Wall, pole

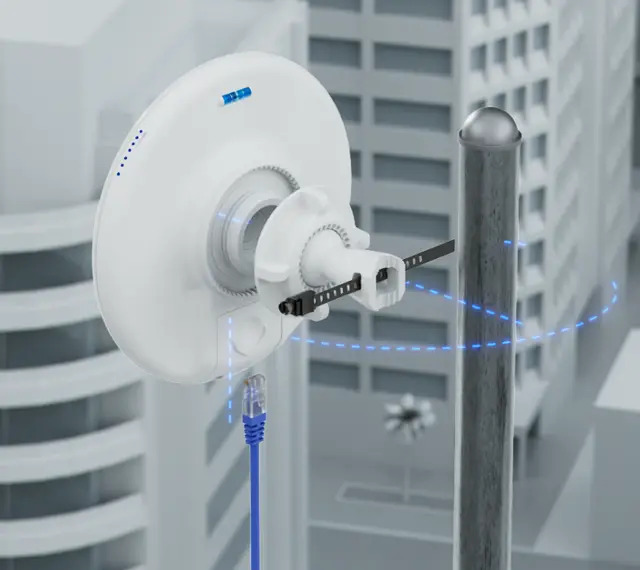

Mounting

Pole (Included)

Weatherproofing

IPX6

Power Method

PoE PoE+ (Required for PoE output)

Power Supply

48V, 0.32A PoE adapter (Included)

MIMO

5 GHz

2 x 2

Max. Data Rate

5 GHz

867 Mbps (BW80)

Antenna Gain

5 GHz

19 dBi

Max. TX Power

5 GHz

25 dBm

Max. Conducted TX Power

25 dBm (Combined)

Supported Data Rates

802.11ac (WiFi 5)

6.5 Mbps to 866.7 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80)

802.11n

6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)

802.11a

6, 9, 12, 18, 24, 36, 48, 54 Mbps

Wireless Security

WPA2 AES (Always On)

Max. Power Consumption

9W

Supported Voltage Range

42.5—57V DC

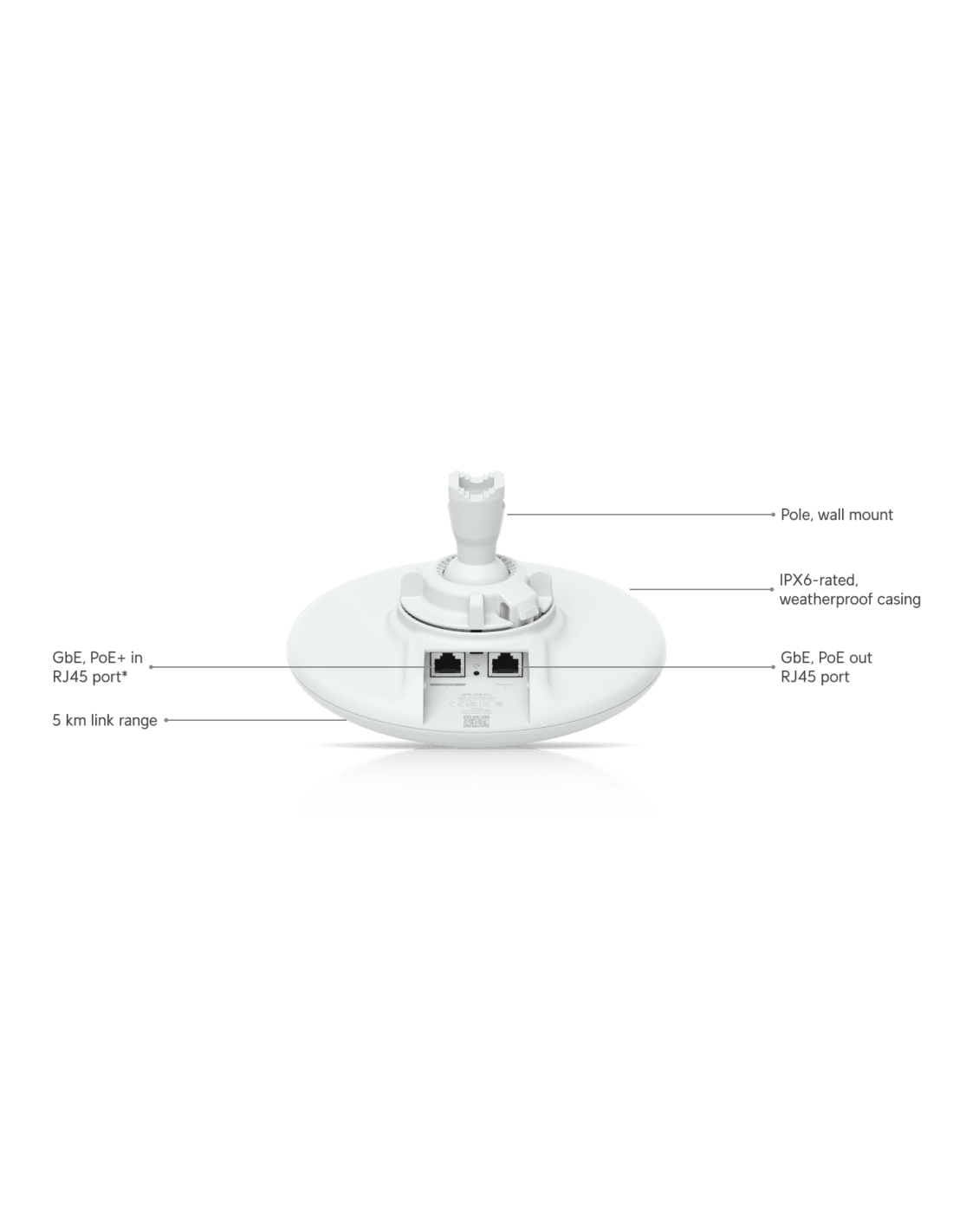

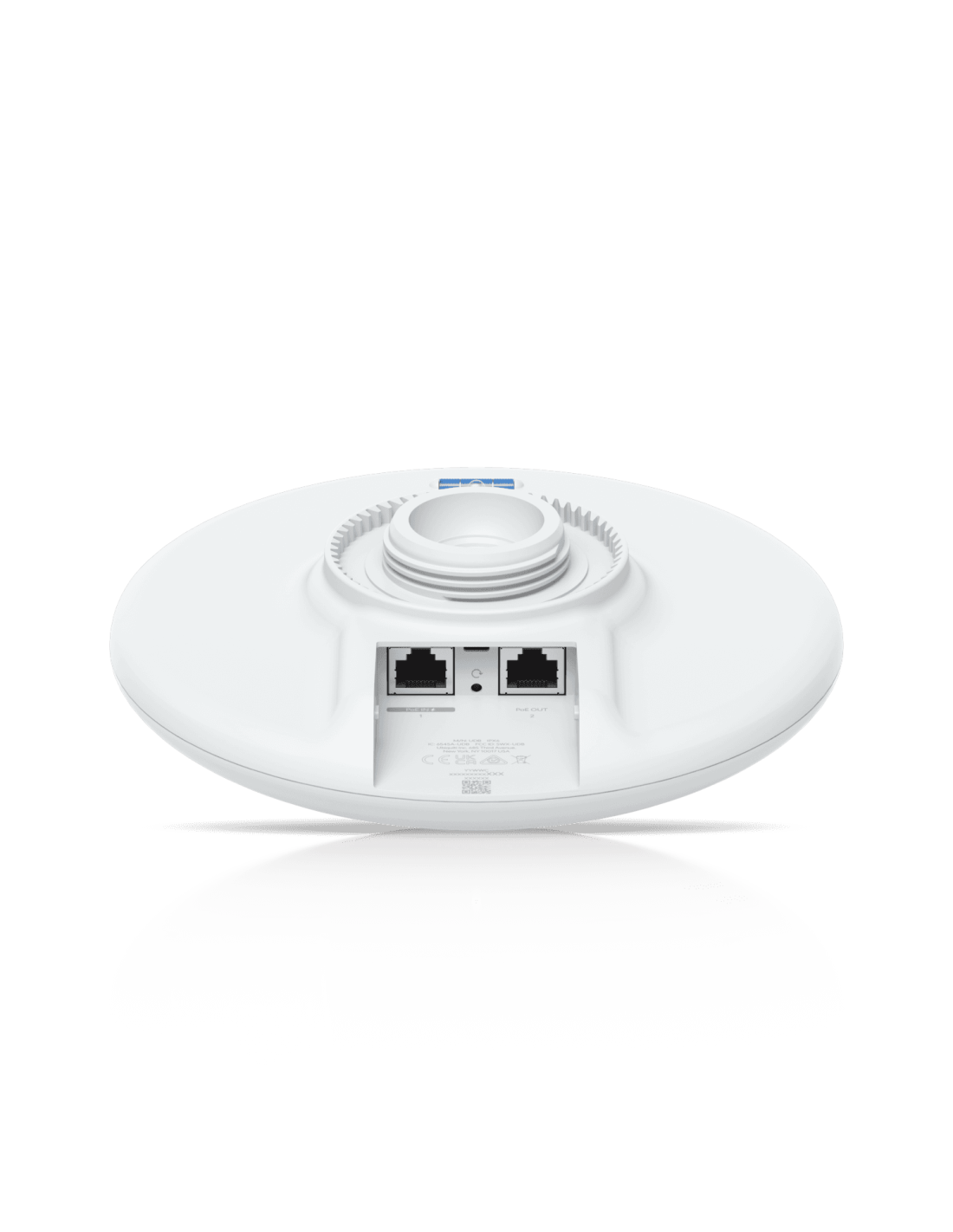

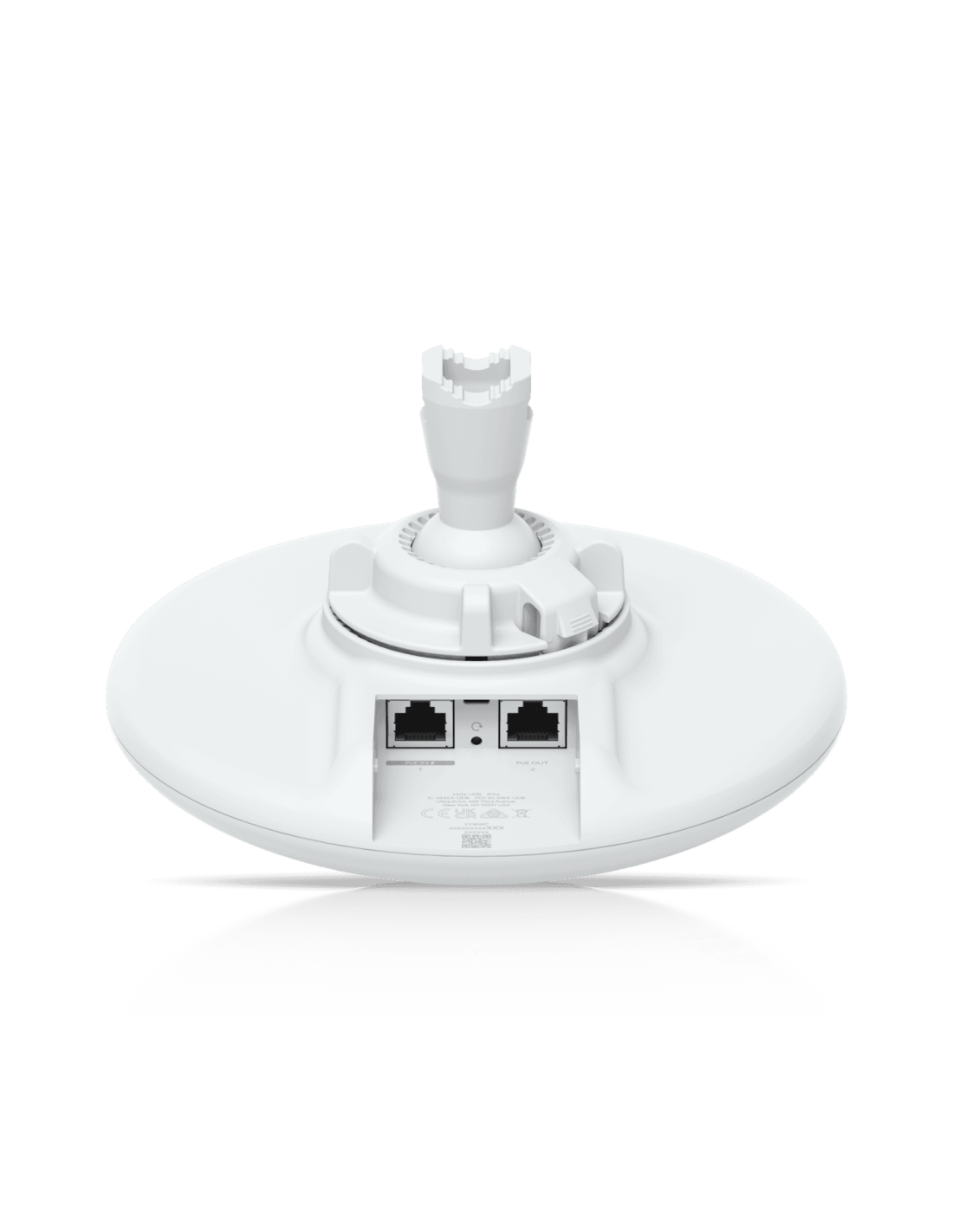

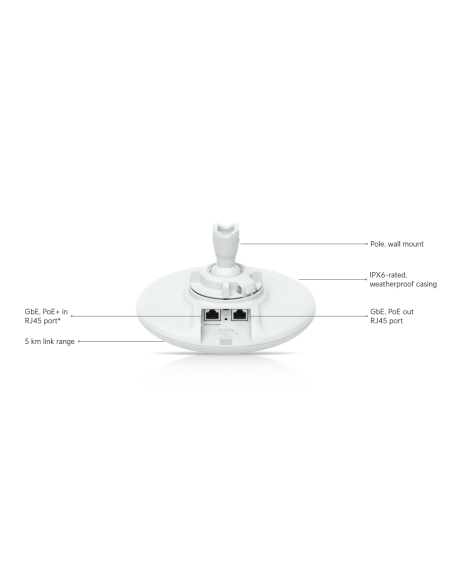

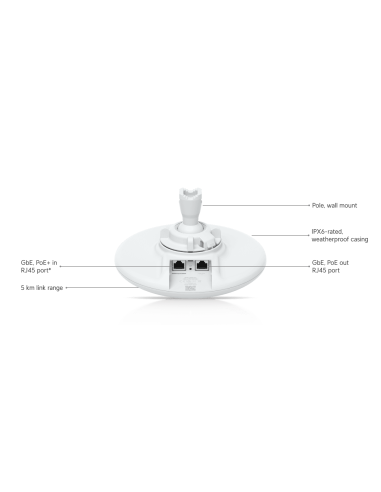

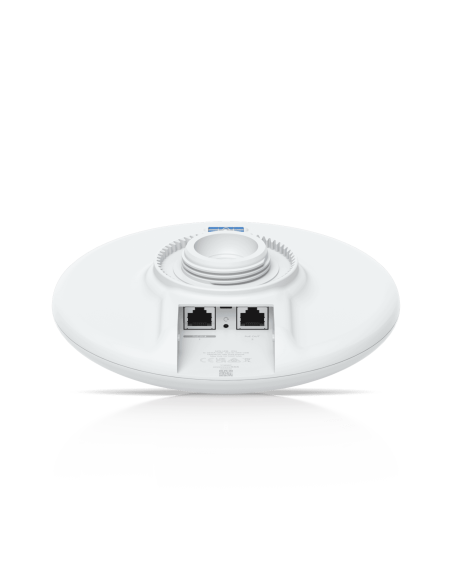

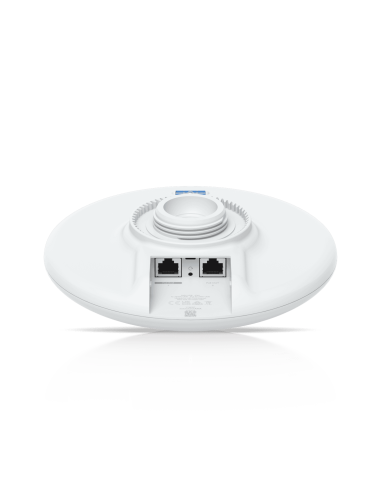

Networking Interface

(2) GbE RJ45 ports

Antennas

Internal

Management

(1) PoE in (PoE output not used) (1) Passive PoE output

Wind Loading

69 N at 200 km/h (15.5 lbf at 125 mph)

Weight

Device: 431 g (0.95 lb) With mount: 515 g (1.1 lb)

Mount Material

UV-stabilized polycarbonate, stainless steel

Enclosure Material

UV-resistant polycarbonate

Pole Mount Diameter

0.8–2.1" (20–53.1 mm)

Button

(1) Factory-reset

LEDs

System

Power, Ethernet, (4) signal strength

Channel Bandwidth

20/40/80 (MHz)

NDAA Compliant

✓

Certifications

CE, FCC, IC

Operating Frequency

US/CA: U-NII-1 5150 - 5250 MHz U-NII-2A 5250 - 5350 MHz U-NII-2C 5470 - 5725 MHz U-NII-3 5725 - 5850 MHz Worldwide: 5150 - 5875 MHz

Ambient Operating Temperature

-40 to 60° C (-40 to 140° F)

Ambient Operating Humidity

5 to 95% noncondensing

Device Type: PTP/PTMP Link
Device Features: Outdoor
Weather-Proof
Wireless System: 5GHz
Ethernet Ports: 2

EAN13 810084698013

MPN UDB-Pro
