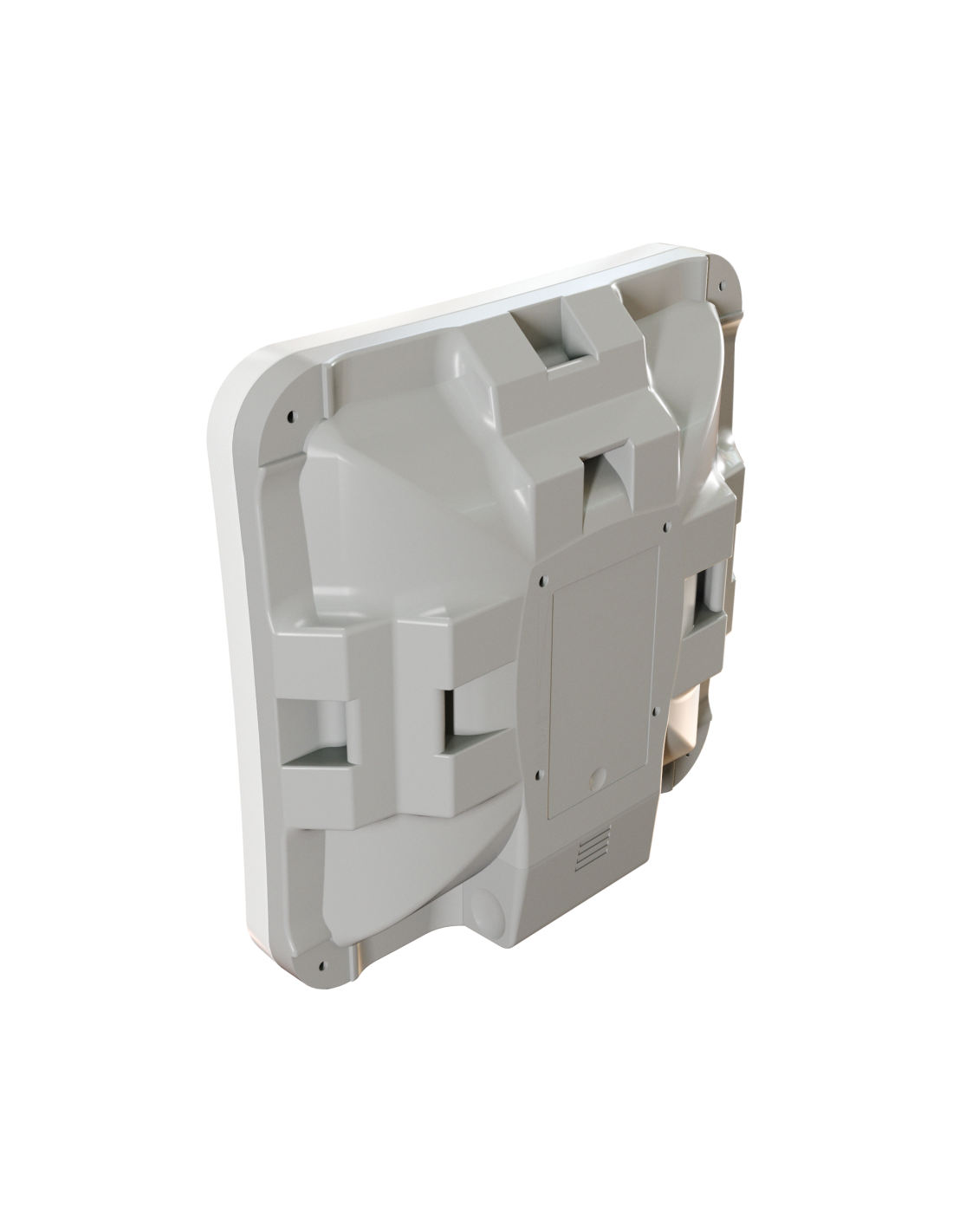

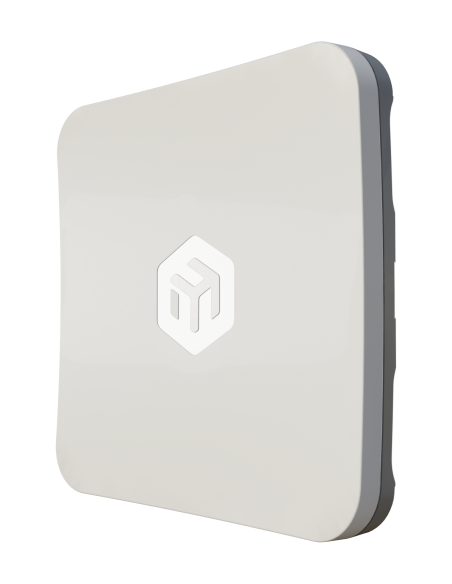

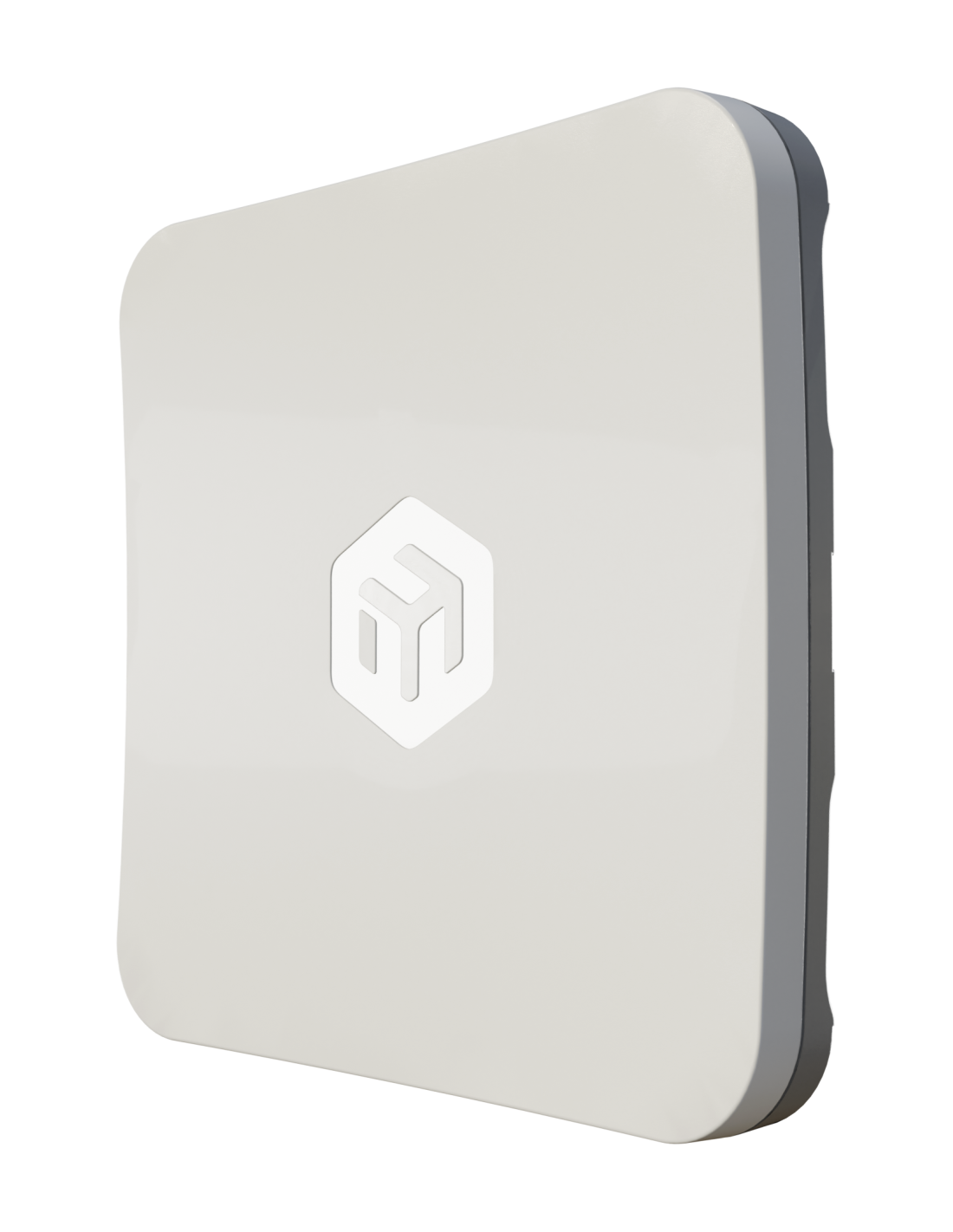

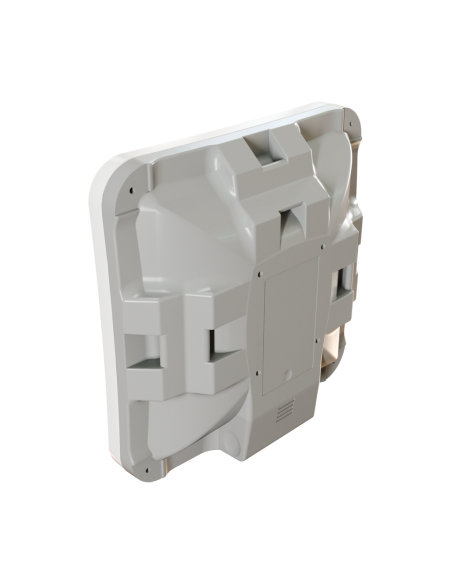

MikroTik SXTsq-5axD Outdoor Wi-Fi 6 CPE, Access Point with 5GHz 802.11ax, 16 dBi Antenna, PoE-In

SXTsq-5axD
In Stock
$111.00
Tax included

SXTsq-5axD

A compact outdoor Wi-Fi 6 CPE with a powerful 16 dBi antenna, AP mode, and multiple mounting options — perfect for masts, poles, or rooftop deployments.

Key Features:

  • Modern Dual-Core ARM CPU
  • Gigabit Ethernet
  • 5GHZ Wi-Fi 6
  • Passive Poe-In
  • 16 DBI Antenna Gain

Quantity Unit price You Save
5 $99.57 $57.17
10 $96.57 $144.30
15 $94.91 $241.43
20 $94.35 $333.00

Related Products & Accessories



SXTsq-5axD - MikroTik Outdoor Wi-Fi 6 CPE, Access Point with 5GHz 802.11ax, 16 dBi Antenna, PoE-In

Product Specifications

Details
Product code SXTsq-5axD
Architecture ARM 64bit
CPU IPQ-5010
CPU core count 2
CPU nominal frequency 800 MHz
RouterOS license 4
Operating System RouterOS v7
Size of RAM 256 MB
Storage size 128 MB
Storage type NAND
MTBF Approximately 100'000 hours at 25C
Tested ambient temperature -40°C to 70°C

Powering

Details
Number of DC inputs 1 (PoE-IN)
Max power consumption 6 W
Cooling type Passive
PoE in Passive PoE
PoE in input Voltage 12-28 V

Wireless specifications

Details
Wireless 5 GHz Max data rate 1200 Mbit/s
Wireless 5 GHz number of chains 2
Wireless 5 GHz standards 802.11a/n/ac/ax
Antenna gain dBi for 5 GHz 16
Wireless 5 GHz chip model QCN-6102
Wireless 5 GHz generation Wi-Fi 6

Ethernet

Details
10/100/1000 Ethernet ports 1

Other

Details
CPU temperature monitor Yes

Certification & Approvals

Details
Certification CE, FCC, IC, EAC, ROHS
IP 55

Wireless specifications

5 GHz Transmit (dBm) Receive Sensitivity
6MBit/s 24 -96
54MBit/s 21 -80
MCS0 24 -96
MCS7 20 -75
MCS9 18 -70
MCS11 16 -67
2.4 GHz Transmit (dBm) Receive Sensitivity
1MBit/s
11MBit/s
6MBit/s
54MBit/s
MCS0
MCS7
MCS9
MCS11

Antenna Gain (dBi)
16
Device Type
Antenna Integrated Radio
Device Features
Outdoor
PoE Powered
Wireless System
5GHz
Ethernet Ports
1 Port 10/100/1000
PoE in
Passive
4752224009494
SXTsq-5axD
