Ubiquiti SM-SP-40 SunMAX 24V Smart Solar MPPT Controller & 4-Port PoE Switch 7A Charger 40W Output Weather Prediction

SM-SP-40
In Stock
$257.40
Tax included

SM-SP-40

Smart Solar MPPT Controller/Charger unit

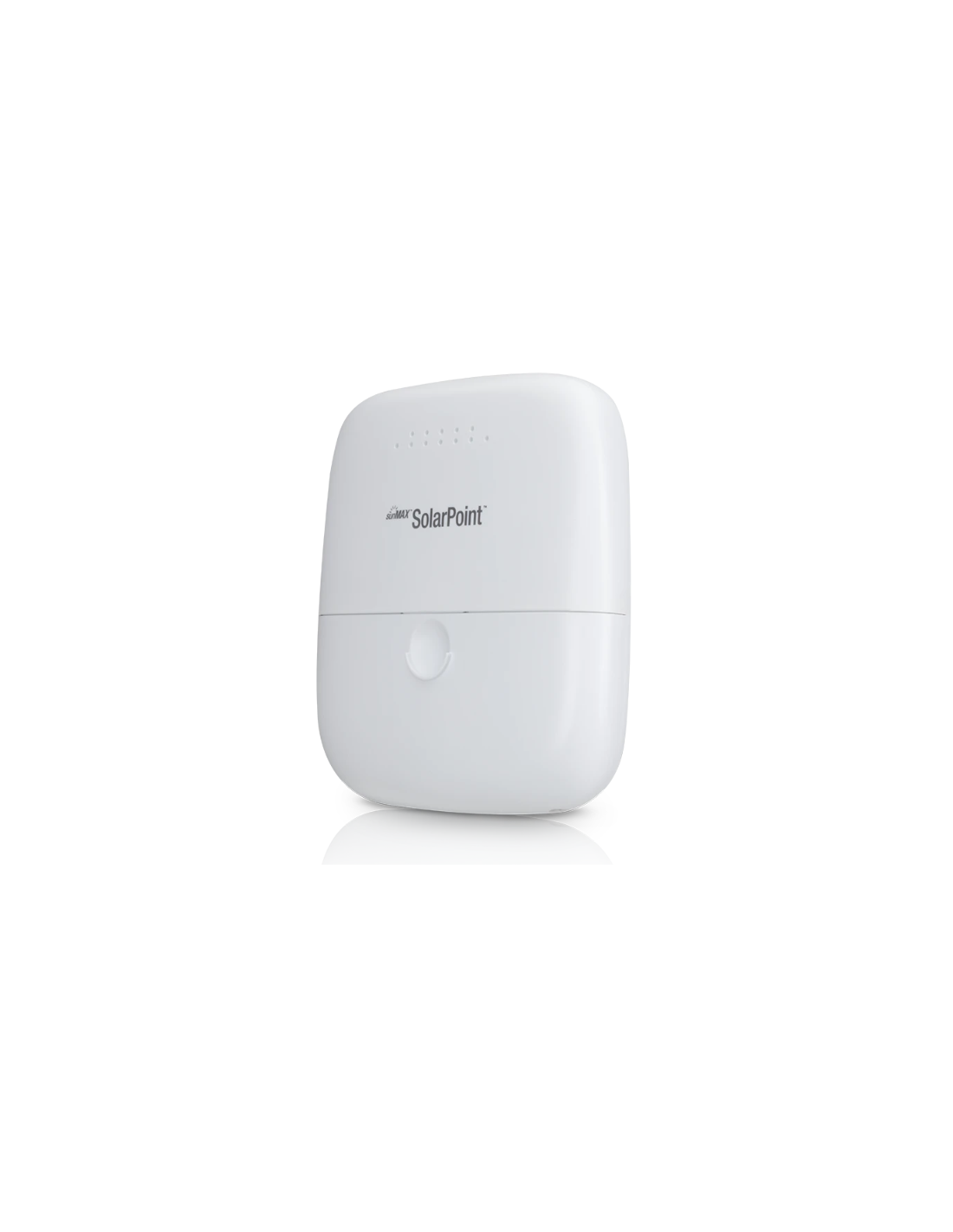

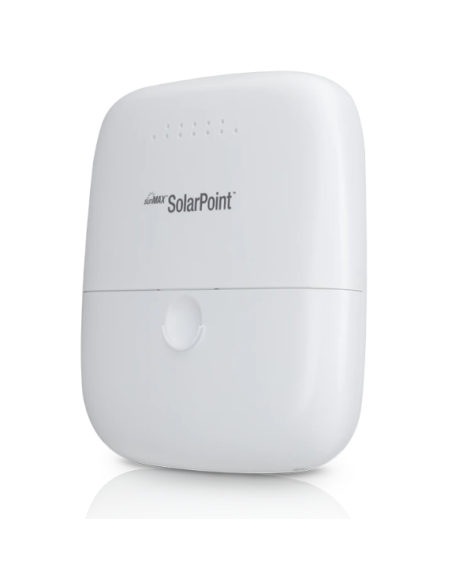

The SunMAX SolarPoint is a remote managed maximum power point tracker (MPPT) 24 V 7 A charge controller with a built-in 4 port 24 V PoE 10/100 Mbps switch and one DC output delivering up to 40 W. It comes with built-in weather prediction service, which together with AI algorithms will provide you with critical information about your solar site's existing and future performance.

Key Features:

  • 40W Output Power / 7A Charger
  • PV Input:10-60V
  • 4 PoE and 1 DC Outputs
  • Ethernet Switch
  • Weather prediction service

Related Products & Accessories



SM-SP-40 Ubiquiti SunMAX 24V Smart Solar MPPT Controller & 4-Port PoE Switch 7A Charger 40W Output Weather Prediction

SM-SP-40 Specifications
Dimensions 202 × 186 × 50 mm (7.95 × 7.32 × 1.97 in)
Weight 650 g (1.43 lb)
Enclosure Characteristics UV-Resistant Polycarbonate, Outdoor Use
Max. Power Consumption 2 W
Networking Interface (4) 10/100 Fast Ethernet Ports
Management Interface Ethernet + Wi-Fi (2.4 GHz)
Button Reset
LEDs System, Output

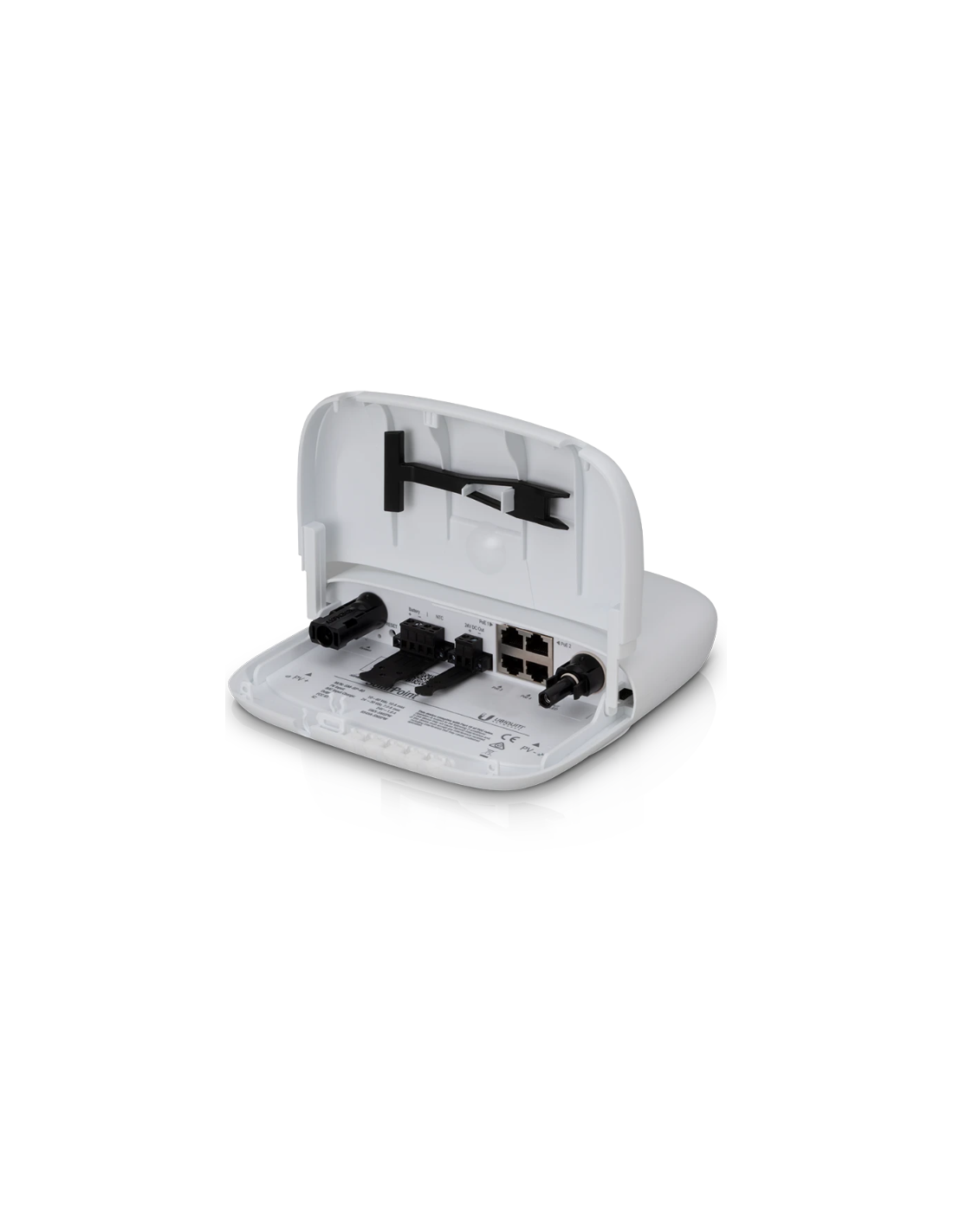

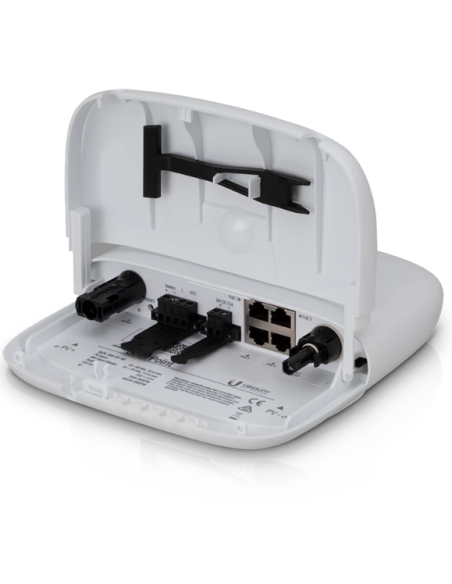

Power Source PV Panel (H4 Connectors)
PV Input Voltage Range 10–60 V (Reverse Protection, Surge Protection)
PV Maximum Current 10 A
PV Power Control MPPT
Output Interfaces 24VDC Passive PoE (Pins 4,5+; 7,8-)
24VDC Terminal Block
Output Voltage Battery Voltage Limited to 24V (Surge Protection)
Maximum Power Output PoE: 17W, DC Output: 24W, Maximum 40W Total
Battery Type 24V SLA, AGM, Gel Lead Battery
Boost Voltage Steps 27.4V / 28.2V / 29.1V / 30V
Float Charge Voltage 95% of Boost Voltage
Max. Charge Current 7 A
Undervoltage Protection 22–23.6V (Software Configurable)
22V Hardware Protection
2 Priority Levels for Output Disable
Operating Temperature -20 to 50°C (-4 to 122°F)
Certifications FCC, IC, CE
