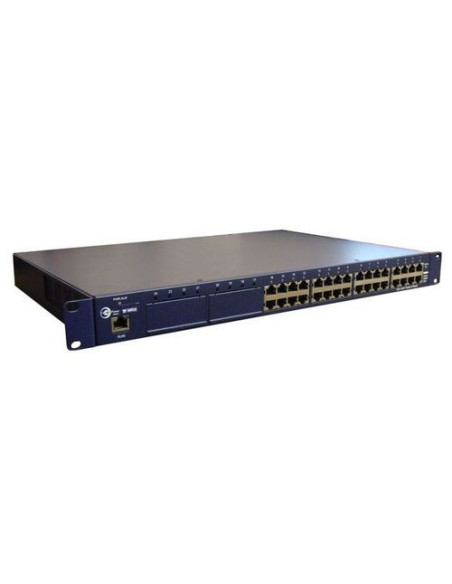

TP-MS616-ISO 16-Port Gigabit PoE Midspan Injector 1U Rackmount

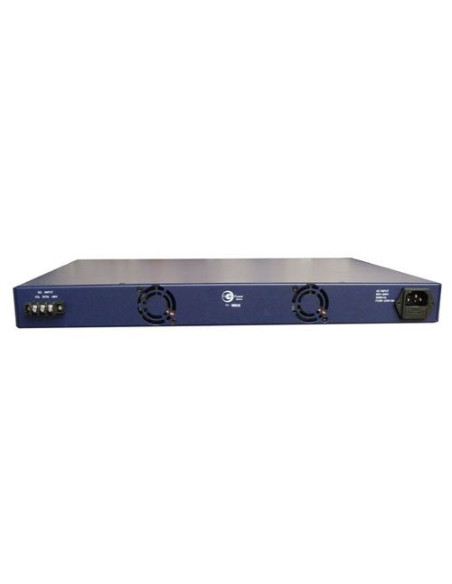

TP-MS616-ISO, 16 Port RackMt 802.3at/Pasv PoE Isolated
TP-MS616-ISO 16-Port Gigabit PoE Midspan Injector 1U Rackmount
TP-MS616-ISO, 16 Port RackMt 802.3at/Pasv PoE Isolated

Tycon TP-MS616-ISO 16-Port Gigabit PoE Midspan Injector 1U Rackmount

TP-MS616-ISO
Last items in stock
$1,552.16
Tax included

TP-MS616-ISO

The Tycon TP-MS616-ISO is a 16-port rackmount Gigabit PoE midspan injector designed to add PoE power to standard Ethernet networks. It allows you to power up to 16 IP cameras, wireless access points, VoIP phones, or other PoE devices from a central rack location without replacing your existing network switch.

Supporting IEEE 802.3at/af and Passive PoE modes, each port delivers up to 35W of power with intelligent management through the front RJ45 console or network interface. Its 1U rackmount chassis and AC/DC power input make it ideal for security systems, WISP deployments, enterprise networks, and industrial installations.

Features:

  • 16-Port Gigabit PoE Midspan Injector
  • Adds PoE to non-PoE network switches
  • Up to 35W per port
  • IEEE 802.3at/af + Passive PoE support
  • Managed via RJ45 console or network
  • 1U 19" rackmount chassis
  • AC or isolated DC input  Ideal for IP cameras, WiFi APs and VoIP phones

Quantity Unit price You Save
5 $1,505.59 $232.82

Related Products & Accessories



TP-MS616-ISO 16-Port Gigabit PoE Midspan Injector 1U Rackmount

The TP-MS616-ISO rack mount 16 port mid span PoE power sources are used for supplying PoE and data to up to 16 devices multiple devices from a central location such as an operations room. The PoE devices feature a separate data-in port coupled with a data out/PoE port. The PoE function is fully IEEE802.3at/af compliant and supports Gigabit Ethernet. DC input is isolated to be able to accept + or – voltage. The included PC software allows for configuration of the individual ports and for displaying port status through the RJ45 management port or network. Ports can be enabled/disabled and configured for forced PoE output (Passive PoE) or IEE802.3at/af detection. PoE DC Voltage (55V) is supplied on 2 pairs. Maximum power output per rack mount unit is 576W. The individual outputs are overload and short circuit protected. The 1U rack mounting accommodates 19" racks with included brackets.

Technical Specifications

Specification Value
Ethernet Standard IEEE802.3 / IEEE802.3u / IEEE802.3ab (10Base-T / 100Base-T / 1000Base-T)
PoE Standard IEEE802.3at/af or Passive PoE
Shielded RJ45 Ports 16 Data-In ports ; 16 Data/PoE-Out ports
Console Port RJ45 Management Port (can also be managed via network)
Maximum Device Distance 100 m (328 ft)
Maximum PoE Power 35W per port, 625mA @ 56V
PoE Protection Over Temperature, Over Current, Over / Under Voltage
LED Indicators Power On (Green On)
Power Alarm (Red On)
PoE Power On (Green On)
PoE Detect Error (Red On)
PoE Unknown Device (Off)
PoE Detecting (Orange Blinking)
PoE Port Off (Orange On)
AC Power Input 100~240VAC, 50/60Hz
Fuse Type IEC 60127-2 Type T, 5x20mm 250V 6.3A TimeLag
DC Power Input ±42VDC to ±57VDC, Isolated Input
Maximum Power Output 516W (AC Powered) ; 258W (DC Powered)
Operating Temperature -20 to +65°C (-4 to 149°F)
Operating Humidity Up to 95% RH (non-condensing)
MTBF 103,546 Hours
Storage Temperature -20 to +80°C (-4 to +176°F)
Dimensions (L x W x H) 430 x 290 x 44 mm (16.9 x 11.4 x 1.7")
Mounting 1U Rack Mount, 19"
Weight 4.9 kg (10.8 lb)
Power Input
DC
Power Over Ethernet
56VDC 802.3af/at PoE Output
802.3af/at
Ethernet Ports
16
Environment Temperature
-10℃~60℃
810017121816
TP-MS616-ISO
