ICS-110 PLANET RS-232 / RS-422 / RS-485 Serial to 10/100TX Ethernet Converter

ICS-110 - PLANET RS-232 / RS-422 / RS-485 Serial to 10/100TX Ethernet Converter

Remote Manageable:

The ICS-110 makes connected serial equipment become the IP-based type. That also makes them able to connect to a TCP / IP networking immediately. Each Web-Smart converter is able to manage Web interface. The powerful Web-Smart Media Converter supports application mode and serial operation mode, connecting alarm, IP address, etc. It helps reduce the amount of valuable time that a network administrator spends detecting and locating network problems; otherwise, it requires visual inspection of cabling and equipment. Multiple connection options for large networking environment are available as well.

Serial Interface:

• One RS-232 / 422 / 485 port to one 10/100Base-TX or 100Base-FX Media Converter

• Cost-effective solution for RS-232 to Ethernet application

• Supports RS-232, 4-wire RS-422 or 2/4-wire RS485 operation

• Asynchronous serial data rates up to 921600b/s

Ethernet Interface:

• Complies with IEEE 802.3, IEEE 802.3u 10/100Base-TX standard

• Supports auto MDI/MDI-X function on RJ-45 Port Smart Functions

• Standard TCP / IP interface and versatile operation modes

• Software Protocol Support ARP, ICMP,TCP / IP, UDP, HTTP server, DHCP client, 　Telnet server/client

• Built-in IP-base Web interface for remote management • Serial operation mode selected via Web management

• Pair connection mode for connecting two serial devices over a network

• PLANET Smart Discovery utility automatically finds PLANET devices on the network

• Firmware upgrade via HTTP protocol

Hardware:

• Compact size for easy Installation:

  -Standalone - Wall mountable or DIN-rail mounting (optional accessory)

  -Co-work with PLANET MC family Media Chassis ( MC-700/1000R/1500)

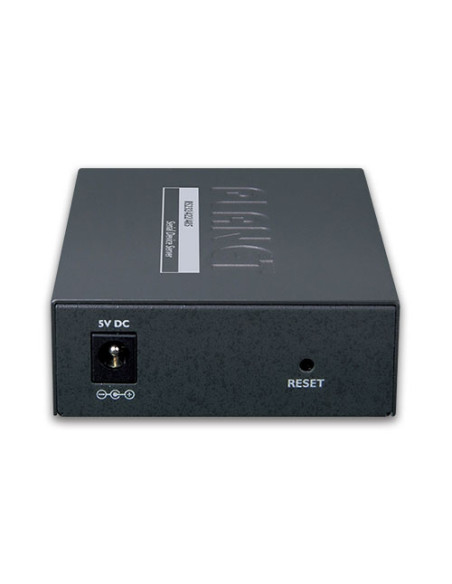

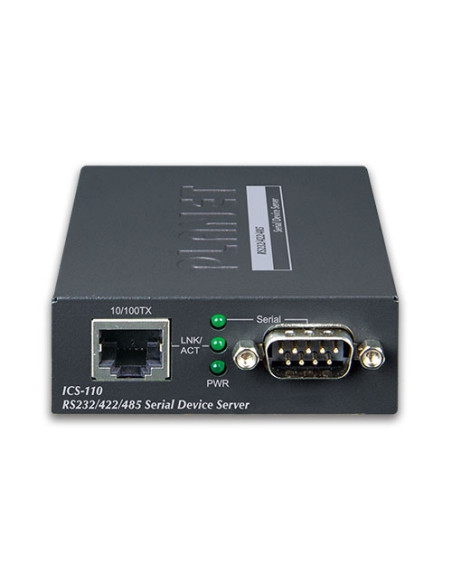

• LED indicators for easy network diagnose • Reset button on the front panel for reset to factory defaut
