RBwAPG-5HacD2HnD - MikroTik wAP ac Small dual-band 2.4 / 5GHz white weatherproof wireless access point for mounting on a ceiling, wall or pole

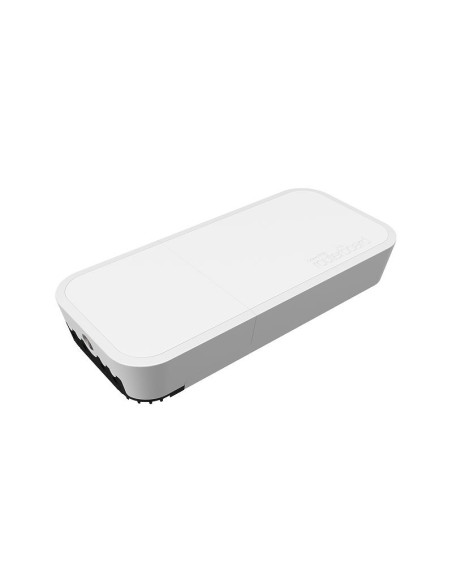

The wAP ac is a small weatherproof wireless access point for your mobile devices, perfect for installation outside your house, in the garden, on your porch or anywhere else where you need wireless access from your phone or computer.

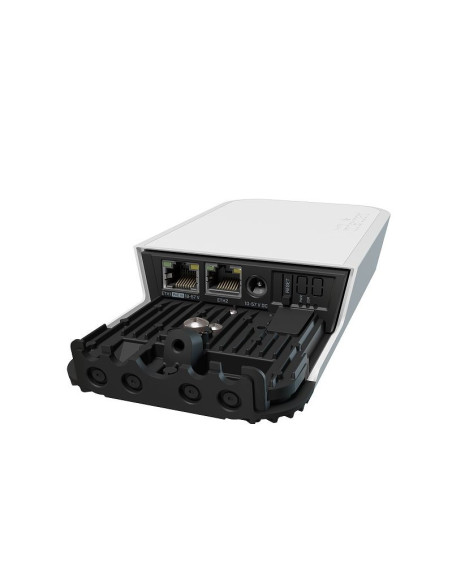

wAP ac – a small dual-band weatherproof wireless access point for mounting on a pole, wall, or the ceiling. The new revision features 2x Gigabit Ethernet ports, enhanced wireless antenna performance, more RAM, and a powerful quad-core CPU!

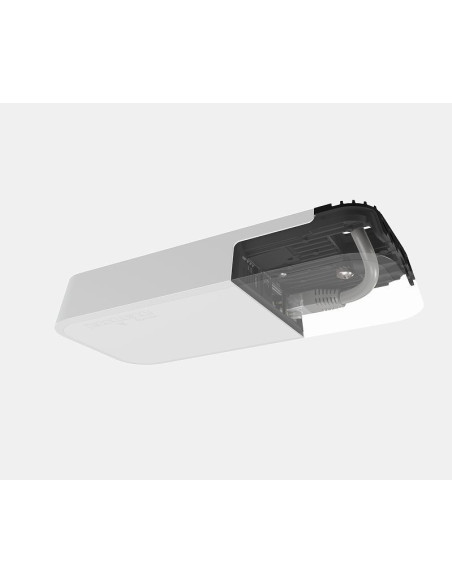

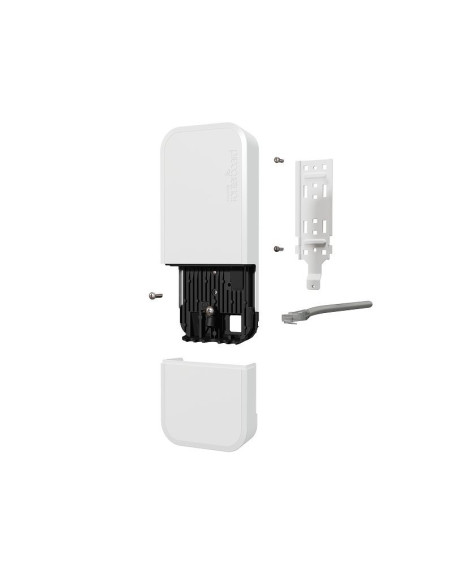

The wAP ac is weatherproof and can be fixed to any external wall from the inside of the case - so that it is securely attached to it’s mounting location.
Specifications
Details |
Product code |
RBwAPG-5HacD2HnD |
Architecture |
ARM 32bit |
CPU |
IPQ-4018 |
CPU core count |
4 |
CPU nominal frequency |
488-896 (auto) MHz |
Switch chip model |
IPQ-4018 |
Dimensions |
185 x 85 x 30 mm |
RouterOS license |
4 |
Operating System |
RouterOS |
Size of RAM |
128 MB |
Storage size |
16 MB |
Storage type |
FLASH |
MTBF |
Approximately 100'000 hours at 25C |
Tested ambient temperature |
-40°C to 70°C |
IPsec hardware acceleration |
Yes |
Suggested price |
$89.00 |
Wireless capabilities
Details |
Wireless 2.4 GHz Max data rate |
300 Mbit/s |
Wireless 2.4 GHz number of chains |
2 |
Wireless 2.4 GHz standards |
802.11b/g/n |
Antenna gain dBi for 2.4 GHz |
2.5 |
Wireless 2.4 GHz chip model |
IPQ-4018 |
Wireless 2.4 GHz generation |
Wi-Fi 4 |
Wireless 5 GHz Max data rate |
867 Mbit/s |
Wireless 5 GHz number of chains |
2 |
Wireless 5 GHz standards |
802.11a/n/ac |
Antenna gain dBi for 5 GHz |
2.5 |
Wireless 5 GHz chip model |
IPQ-4018 |
Wireless 5 GHz generation |
Wi-Fi 5 |
WiFi speed |
AC1200 |
Ethernet
Details |
10/100/1000 Ethernet ports |
2 |
Powering
Details |
Number of DC inputs |
2 (PoE-IN, DC jack) |
DC jack input Voltage |
10-57 V |
Max power consumption |
10 W |
Max power consumption without attachments |
9 W |
Cooling type |
Passive |
PoE in |
802.3af/at |
PoE in input Voltage |
18-57 V |
Certification & Approvals
Details |
Certification |
CE, FCC, IC, EAC, ROHS |
IP |
IP54 |
Other
Details |
PCB temperature monitor |
Yes |
Voltage Monitor |
Yes |
Wireless specifications
2.4 GHz |
Transmit (dBm) |
Receive Sensitivity |
1MBit/s |
25 |
-100 |
11MBit/s |
25 |
-94 |
6MBit/s |
25 |
-96 |
54MBit/s |
19 |
-78 |
MCS0 |
25 |
-96 |
MCS7 |
18 |
-73 |
5 GHz |
Transmit (dBm) |
Receive Sensitivity |
6MBit/s |
24 |
-96 |
54MBit/s |
20 |
-80 |
MCS0 |
24 |
-96 |
MCS7 |
19 |
-75 |
MCS9 |
17 |
-70 |
