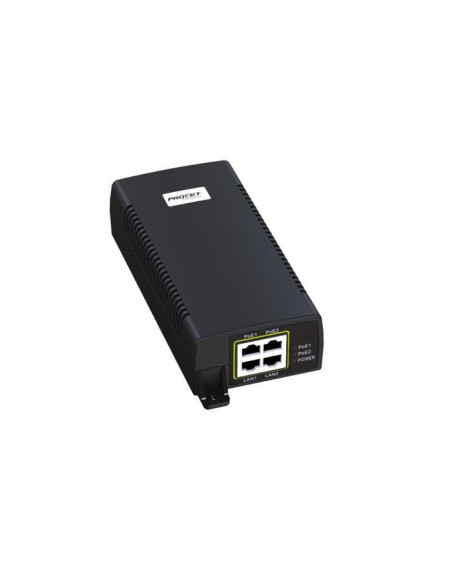

PT-PSE206GWN-A Procet Dual Port PoE Injector

PT-PSE206GWN-A -Dual Port PoE Injector 30W per port

Standard Specifications:

• IEEE802.3 10Base-T Ethernet
• IEEE802.3u 100Base-Tx Fast Ethernet
• IEEE802.3ab 1000Base-T Gigabit Ethernet
• Support terminal equipment with IEEE802.3af/at
• RoHS Compliance
• WEEE Compliance

Interface Specifications:

• Input: 100-240Vac 1.5A 50/60Hz
• Output: 55Vdc 1100mA(Total)
• Power Pins: 4/5(+), 7/8(-) and 3/6(+),1/2(-)
• Data Speed: 10/100/1000 Mbps

Working Environment Specifications:

• Operating Temperature: -30 to 55C
• Operating Humidity: 5 to 95%, non-condensation
• Storage Temperature: -30 to 70C
• Storage Humidity: 10 to 90%, non-condensation
• Operating Altitude: up to 5000 meters

AC Surge Protection:

• 2.0KV (5P/5N)
• L-N 1.2/50 (8/20) Tr/Th us
• 4.0KV (5P/5N)
• L-PE 1.2/50 (8/20) Tr/Th us
• N -PE

Mechanical Characteristics:

• Case: Plastic
• Color: Black
• Mounting: Wall-mounted
• IP Rated: IP20
• Size: 208 x 85 x 46mm
• Weight: 462g
