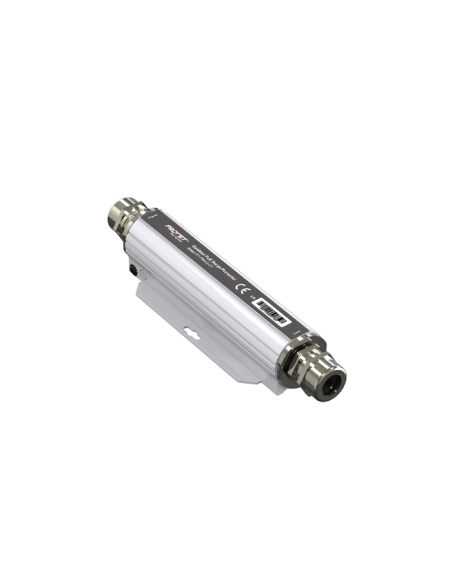

PT-PR01B-10G-OT 44-57V DC IN 100W 802.3bt Outdoor PoE Surge Protector
PT-PR01B-10G-OT 44-57V DC IN 100W 802.3bt Outdoor PoE Surge Protector
PT-PR01B-10G-OT 44-57V DC IN 100W 802.3bt Outdoor PoE Surge Protector
PT-PR01B-10G-OT 44-57V DC IN 100W 802.3bt Outdoor PoE Surge Protector

PT-PR01B-10G-OT 44-57V DC IN 100W 802.3bt Outdoor PoE Surge Protector

PT-PR01B-10G-OT
In Stock
$165.06
Tax included

PROCET PT-PR01GB-OT

1.PT-PR01B-10G is a single-port PoE surge protector designed for exterior complex backhaul and networking applications with an IP 40 rated Aluminum alloy shell. It supports 8 lines of network signals and provides surge protection for PoE wires. 10KV surge protection and four Level protection for SPD technology. Peak Surge Current up to 20KA. It supports not only 10/100/1000Mbps of data rates, but also 2.5/5/10GbE NBase-T. Ideal for 100W(max) PoE wires and well protects your devices against surge damage.


2.PT-PR01B-10G operates from -40℃ to +65℃ and works with a voltage of 44-57Vdc. PoE In port should always be connected to the device which you want it to be protected.


3.Both RJ45 ports connect to the network over Cat5e/Cat6 cables which is very conveniently and tightly. It can be easily installed with 2 mounting holes.

Related Products & Accessories



PT-PR01B-10G-OT - PT-PR01B-10G-OT 44-57V DC IN 100W 802.3bt Outdoor PoE Surge Protector

Parameter Description
Key Features 10GbE data rates
Provide 10KV surge protection and 4 Level protection for 4 PoE wires simultaneously
Peak Surge Current up to 20KA per PoE wire

Wide temperature at -40℃ to 65℃ even up to 85℃ can be   outdoor use by covered with waterproof case

No local power is needed.
Part Number PT-PR01B-10G-OT
Ports condition PoE In Port*1, PoE Out Port*1
Regulatory Compliance

IEEE802.3bt

RoHS Compliance

WEEE Compliance
Pass Through Data Rates 10/100/1000 Mbps & 2.5/5/10GbE
Input & Output Pin Assignment and Polarity:
4/5 (+), 7/8 (–) and 3/6(+),1/2(-)
Operating Voltage :44-57Vdc, (Max 60Vdc)
Maximum Operating DC Current :1A for 2 pairs,
                                                       2A for 4 pairs
                                                       Maximum 100W
Working   Environment Operating Temperature: -40℃ to 65℃
Operating Humidity: 20% to 80%, non-condensation
Storage Temperature: -40℃ to 85℃
Storage Humidity: 10% to 90%, non-condensation
Operating Altitude: up to 5000meters
PoE Surge   Protection Max Discharge Current: 20KA(8/20us,2.5KA per line)
Protected Line: 1,2,3,4,5,6,7,8
Common Mode Protection Level(10/700us): 10KV
Differential Mode Protection Level(10/700us): 6KV
Clamping Voltage(Line to GND): 300V
Clamping Voltage(Line to Line): 10V
Insertion Loss @10MHz/100MHz -1db
Return Loss @10MHz/100MHz: -20db
Response Time 5ns
Mechanical Characteristics Case: Aluminium alloy
Color: White
Mounting: Wall-mounted
IP Rated: IP67
Connectors: Shielded RJ-45
Size: 209mm X 53mm X 37.5mm
Weight: 380g（0.84lb）
Device Type
Power Over Ethernet
Surge Arrester
Device Features
Outdoor
POE Ports
1
Power Input
DC
Power Over Ethernet
48V 15W 802.3af
48V 30W 802.3at
48V 60W 802.3at
Ethernet Ports
1 Eth port
4712331726880
PT-PR01B-10G-OT
