Procet PT-PSE105GWHN-E One port DC Input 95W Boost PoE Injector 802.3at/af

Procet PT-PSE105GWHN-E One port DC Input 95W Boost PoE Injector 802.3at/af

Standard

- IEEE802.3 10Base-T Ethernet

- IEEE802.3u 100Base-Tx Fast Ethernet

- IEEE802.3ab 1000Base-T Gigabit Ethernet

- Support terminal equipment with IEEE802.3af/at, PoE++

- RoHS Compliance

- WEEE Compliance

Input & Output

- Input :12-55Vdc, 10A MAX

- Output: 55Vdc 1.75

- Power Pins: 4/5(+), 7/8(-) & 1/2(-), 3/6(+)

- Data Speed: 10/100/1000Mbps

Working Environment

- Operating Temperature: -40°C to 65°C

- Operating Humidity: 20% to 80%, non-condensation

- Storage Temperature: -40°C to 85°C

- Storage Humidity: 10% to 90%, non-condensation

- Operating Altitude: up to 5000meters

PoE Surge Protection

- Protected line: 1,2,3,4,5,6,7,8

- Common mode surge protection(10/700us): 6KV

- Differential mode surge protection (10/700us): 1.5KV

Mechanical Characteristics

- Case: Metal

- Color: Black

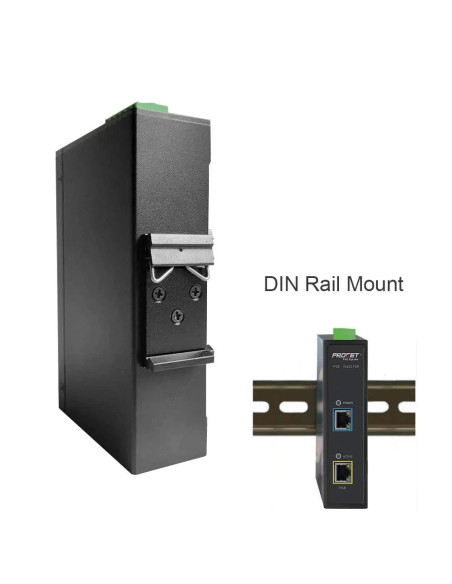

- Mounting: DIN-rail

- IP Rated: IP40

- Size: 115mm X 75mm X 32mm

- Weight: 600g

EMI

- FCC CFR47 Part 15, EN55024, EN55032

EMS

- IEC61000-4-2(ESD) ± 6kV(contact), ±8kV(air)

- IEC61000-4-3(RS) 10V/m(80MHz~2GHz)

- IEC61000-4-4(EFT) Power Port: ±2kV; Data Port:±1kV

- IEC61000-4-5(Surge) Power Port:±1kV/DM, ±2kV/CM

- IEC61000-4-6(CS) 10V(150kHz~80MHz)

Immunity

- IEC60068-2-6(Vibration)

- IEC60068-2-27(Impact)

- IEC60068-2-32(Free Fall)

LED Indicator

- Power Indicator : Green

- PoE Load Indicator : Yellow
