Procet PT-PEX02GB-OT 50-57V DC 90W 802.3bt IP67 Outdoor PoE Extender

PT-PEX02GB-OT
In Stock
$280.50
Tax included

PT-PEX02GB-OT

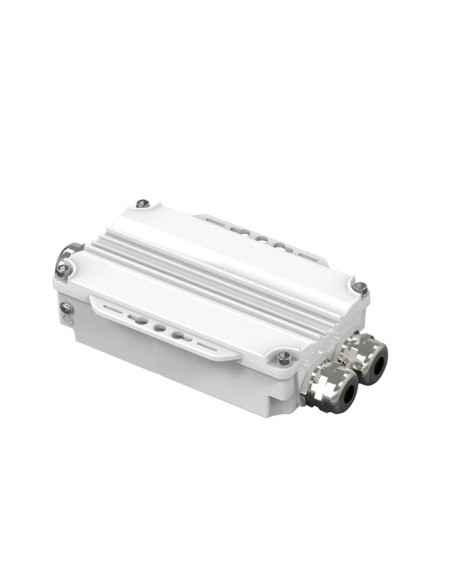

PT-PEX-02GB-OT is an outdoor rated PoE Extender with two PoE output ports, specially designed for exterior, complex backhaul and networking applications. Enclosed in an IP67 Reflective Aluminum alloy housing.

The 3 ports 10/100/1000Mbps includes: 1 x PoE powered input port with 802.3bt at 95W and 2 x PoE output ports with 6KV (10/700us) surge protection. Each output port delivers 45W(Max) power for remote two PDs, totaling up to 90W. PoE Input port requiring more power which is powered by ultra 802.3bt PoE, works with input voltage of 50- 57Vdc, and operates under -40℃ to +65℃. The output ports equipped detecting chip which are compliant with IEEE802.3af/at/bt PDs, such as wireless APs, IP cameras, Microwave radio, base stations and other power Ethernet backhaul devices.

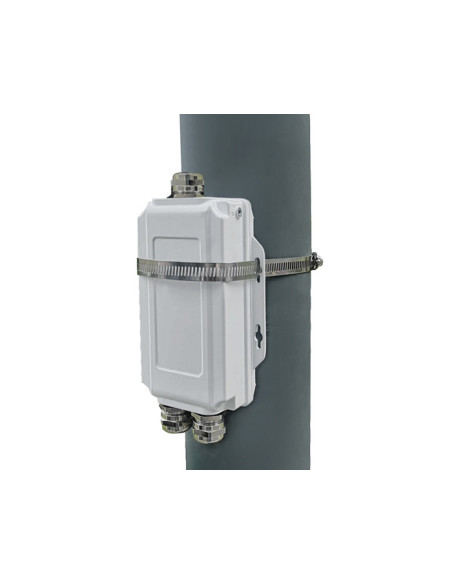

For planning purposes, the total effective distance from Ultra PoE to PDs is 200 meters over CAT5e/CAT6 cables without local power. It is easy to install with mounting hole, no need to open the equipment. With Stainless Steel Cable ties can be fixed on a Pole.



PT-PEX02GB-OT - Procet 50-57V DC 90W 802.3bt IP67 Outdoor PoE Extender

Product Features

Key Features

- Outdoor PoE Extender

- Dual PoE Output Port

- Gigabit Data Rates

- Waterproof Aluminum Alloy housing,IP67

- Extend Temperature from -40℃ to 65℃

- Diagnostic LEDs

- Input and Output equipped 802.3bt detecting chip backward compatible to IEEE 802.3af/at PoE standard

Part Number

- PT-PEX-02GB-OT

Ports condition

- PoE Input Port*1, PoE Output Port*2

Regulatory Compliance

- IEEE802.3bt

- RoHS Compliance

- WEEE Compliance

Pass Through Data Rates

- 10/100/1000 Mbps

Output

- Pin Assignment and Polarity:

- 4/5(+), 7/8(-) and 3/6(+),1/2(-)

- Output Power Voltage: 44-57Vdc

- User Port Power: 45W*2  Total 90W

Input

- Input Voltage:50-57Vdc  802.3bt PoE

- Pin Assignment and Polarity:

- 4/5(+), 7/8(-) and 3/6(+),1/2(-)

Working Environment

- Operating Temperature: -40℃ to 65℃

- Operating Humidity: 20% to 80%, non-condensation

- Storage Temperature: -40℃ to 85℃

- Storage Humidity: 10% to 95%, non-condensation

- Operating Altitude: up to 5000meters

PoE Surge Protection

- Protected line: 1,2,3,4,5,6,7,8

- Common mode surge protection(10/700us): 6KV

- Differential mode surge protection (10/700us): 1.5KV

Mechanical Characteristics

- Case: Aluminum Alloy

- Color: White

- Mounting:Wall-mounted/Pole-mounted

- IP Rated: IP67

- Connectors: Shielded RJ-45*3

- Size: 187 X 104.79 X 45mm

- Weight:565g(1.25lb)

Device Type
Power Over Ethernet
Power Input
DC
Device Features
Outdoor, Unmanaged
Power Over Ethernet
48V 60W 802.3bt, 48V 90W 802.3bt, 802.3bt PoE
