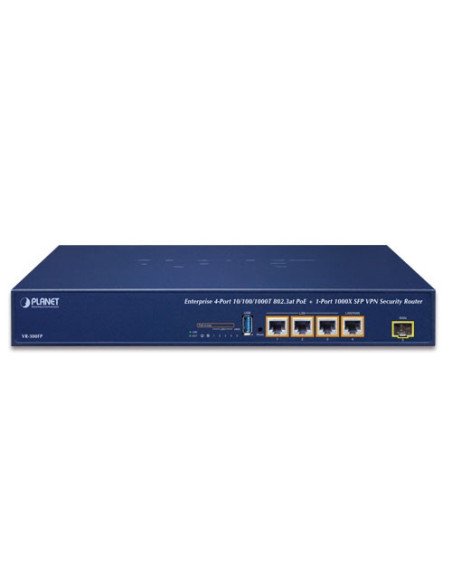

PLANET VR-300FP Enterprise 4-Port 10/100/1000T 802.3at PoE + 1-Port 1000X SFP VPN Security Router

Last items in stock
Tax included


Flexible VPN Security Solution with Fiber Capability

The innovation of the Internet has created tremendous worldwide opportunities for e-business and information sharing. It has become essential for businesses to focus more on network security issues. The demand for information security and wireless connection has become the primary concern for the enterprises. To fulfill this demand, PLANET has launched the all-in-one VR-300F and VR-300FP VPN Security Routers that carry several main categories across your network security deployments: copper/fiber WAN interface, cybersecurity, SPI firewall security protection, policy auditing (content filtering, VPN tunnel and MAC/IP filtering), AP controller, captive portal, RADIUS and easy management (Setup Wizard, DHCP Server and Dashboard). Furthermore, its Dual-WAN Failover, Outbound Load Balance and High-Availability features can improve the network efficiency while the web-based interface provides friendly and consistent user experience.


VR-300FP - PLANET Enterprise 4-Port 10/100/1000T 802.3at PoE + 1-Port 1000X SFP VPN Security Router

Flexible WAN interface Enables Extension of Network Deployment

The VR-300F and VR-300FP provide both copper and fiber connectors for WAN interface. With one SFP slot, it supports fiber extension for FTTX application. It allows the administrator to flexibly choose the suitable SFP transceiver according to the transmission distance required to extend the network efficiently. The distance can be extended from 550 meters to 2 kilometers (multi-mode fiber) and 10/20/30/40/50/60/70/120 kilometers (single-mode fiber or WDM fiber). They are well suited for applications to uplink to backbone switch and monitoring center in long distance.

Intelligent SFP Diagnosis Mechanism

The VR-300F and VR-300FP support SFP-DDM (digital diagnostic monitor) function that greatly helps network administrator to easily monitor real-time parameters of the SFP, such as optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage.

Built-in Unique PoE Functions for Powered Devices Management

The VR-300FP is capable of having a maximum of up to 120 watts of power output and can deliver up to 36W for each port. It also features the following special PoE management functions:

PoE Usage Monitoring

With PoE usage monitoring, it can show the PoE loading of each port, total PoE power usage and system status, such as overload, low voltage, over voltage and high temperature. User can obtain detailed information about the real-time PoE working condition of the VR-300FP directly.

PoE Schedule

Under the trend of energy savings worldwide and contributing to environmental protection, the VR-300FP can effectively control the power supply besides its capability of giving high watts power. The “PoE schedule” function helps you to enable or disable PoE power feeding for each PoE port during specified time intervals and it is a powerful function to help SMBs or enterprises save power and budget. It also increases security by powering off PDs that should not be in use during non-business hours.

Scheduled Power Recycling

The VR-300FP allows each of the connected PoE IP cameras or PoE wireless access points to reboot at a specific time each week. Therefore, it will reduce the chance of IP camera or AP crash resulting from buffer overflow.

PD Alive Check

The VR-300FP can be configured to monitor connected PD status in real time via ping action. Once the PD stops working and responding, the VR-300P will resume the PoE port power and bring the PD back to work. It will greatly enhance the network reliability through the PoE port resetting the PD’s power source and reducing administrator management burden.

Wi-Fi Deployments and Authentication with Simplified Management

The VR-300F and VR-300FP provide a built-in AP Controller, Captive Portal, RADIUS and a DHCP server to facilitate small and medium businesses to deploy secure employee and guest access services without any additional server. The VR-300F and VR-300FP can offer a secure Wi-Fi network with easy installation for your business.

Centralized Remote Control of Managed APs*

The VR-300F and VR-300FP provide centralized management of PLANET Smart AP series via a user-friendly Web GUI. It's easy to configure AP for the wireless SSID, radio band and security settings. With a four-step configuration process, different purposes of wireless profiles can be simultaneously delivered to multiple APs or AP groups to minimize deployment time, effort and cost.

For example, to configure multiple Smart APs of the same model, the VR-300F and VR-300FP allow clustering them to a managed group for unified management. According to requirements, wireless APs can be flexibly expanded or removed from a wireless AP group at any time. The AP cluster benefits bulk provision and bulk firmware upgrade through single entry point instead of having to configure settings in each of them separately.

Ideal High-Availability VPN Security Router Solution for SMBs

The VR-300F and VR-300FP provide complete data security and privacy for accessing and exchanging the most sensitive data, built-in IPSec VPN function with DES/3DES/AES encryption and MD5/SHA-1/SHA-256/SHA-384/SHA-512 authentication, and GRE, SSL, PPTP and L2TP server mechanism. The full VPN capability in the VR-300FP makes the connection secure, more flexible, and more capable.

Excellent Ability in Threat Defense

The VR-300F and VR-300FP are built-in SPI (stateful packet inspection) firewall and DoS/DDoS attack mitigation functions provide high efficiency and extensive protection for your network. Thus, virtual server and DMZ functions can let you set up servers in the Intranet and still provide services to the Internet users.

Cybersecurity Network Solution to Minimize Security Risks

The cybersecurity feature included to protect the switch management in a mission-critical network virtually needs no effort and cost to install. For efficient management, the VR-300F and VR-300FP are equipped with HTTPS web and SNMP management interfaces. With the built-in web-based management interface, the VR-300F and VR-300FP offer an easy-to-use, platform independent management and configuration facility. The VR-300F and VR-300FP support SNMP and it can be managed via any management software based on the standard SNMP protocol.

Improving Network Efficiency

It is applicable to the small-scale sector (from 60 to 100 people), using a 13-inch desktop design, with five Gigabit ports (WAN/LAN). It provides higher performance with all Gigabit Ethernet interfaces which offer faster speeds for your network applications. The Gigabit user-defined interfaces flexibly fulfill the network requirement nowadays, and the High-Availability and Dual-WAN interfaces enable the VR-300F and VR-300FP to support outbound load balancing and WAN fail-over features.

Furthermore, the VR-300F and VR-300FP can connect dual IPv4/v6 WANs with up to two different ISPs and supports many popular security features including Content Filtering to block specific URL feature that can automatically resolve the IP address corresponding to all. Users’ network can be easily managed by just typing the URL of the websites like Facebook, YouTube and Yahoo.

The VR-300F and VR-300FP both have link redundancy, MAC/IP filtering, outbound load balancing, QoS and many more functions to make the entire network system better. It creates a stable and qualified VPN security connection for many important applications such as VoIP, video conferencing and data transmission. The VR-300F’s and VR-300FP’s economical price with complete network security management features make it an inevitable choice for the next-generation office network load balancer.

Hardware Specifications
Ethernet 4 10/100/1000BASE-T RJ45 Ethernet ports including
1 1000BASE-X SFP slot
3 LAN ports (Ports 1 to 3)
1 LAN/WAN port (Port 4)
1 WAN port (Port 5)
USB Port 1 USB 3.0 port for system configuration backup and restore
Reset Button Reset to factory default
Thermal Fan 1
LED Indicators PWR (Green)
Internet (Green)
LAN/WAN (Green)
PoE-in-Use LED (Amber)
Installation Desktop installation or rack mounting
Power Requirements 100~240V AC, 50/60Hz, auto-sensing
Power Consumption / Dissipation VR-300F: Max.3.7 watts/ BTU
VR-300FP: Max.132 watts/ BTU
Weight VR-300F: 1.3kg
VR-300FP: 1.5kg
Dimensions (W x D x H) 330 x 155 x 43.5 mm, 1U height
Enclosure Metal
Power over Ethernet
PoE Standard IEEE 802.3af / 802.3at PoE+ PSE
PoE Power Supply Type End-span
PoE Power Output Per port 52V DC, 36 watts (max.)
Power Pin Assignment 1/2 (+), 3/6 (-)
PoE Power Budget 120 watts (max.) @ 25 degrees C
100 watts (max.) @ 50 degrees C
Max. Number of Class 4 PDs 4
PoE Management PD Alive Check
Scheduled Power Recycling
PoE Schedule
PoE Usage Monitoring
Security Service
Firewall Security Cybersecurity
Stateful Packet Inspection (SPI)
Blocks DoS/DDoS attack
ALG (Application Layer Gateway) SIP, RTSP, FTP, H.323, TFTP
NAT Port forwarding
DMZ Host
Content Filtering MAC filtering
IP filtering
Web filtering
Bandwidth Management Outbound load balancing
Failover for dual-WAN
QoS (Quality of Service)
Operation Mode Routing mode
Routing Protocol Static Route, Dynamic Route (RIP), OSPF
VLAN 802.1q Tag-based, Port-based, Multi-VLAN
Multicast IGMP Proxy
NAT Throughput Max. 900Mbps
Outbound Load Balancing Supported algorithms: Weight
Key Features HA (High Availability)
Captive Portal
RADIUS Server/Client
AP Control
VPN Function IPSec/Remote Server (Net-to-Net, Host-to-Net)
PPTP Server
L2TP Server
SSL Server/Client (Open VPN)
VPN Tunnels Max. 60
VPN Throughput Max. 60Mbps
Encryption Methods DES, 3DES, AES or AES-128/192/256 encrypting
Authentication Methods MD5/SHA-1/SHA-256/SHA-384/SHA-512 authentication algorithm
Basic Management Interfaces Web browser
SNMP v1, v2c
PLANET Smart Discovery utility/UNI-NMS supported
Secure Management Interfaces SSHv2, TLSv1.2, SNMP v3
System Log System Event Log
Others Setup wizard
System status/service
Connection status
Auto reboot
Standards Conformance
Regulatory Compliance CE, FCC
Environment Specifications
Operating Temperature: 0 ~ 50 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
Storage Temperature: -10 ~ 60 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
Device Type
Device Features
Managed, IPv6 Routing, PoE Powered, Rackmount
POE Ports
SFP Ports
Power Input
Yes, 1G SFP
Ethernet Ports
