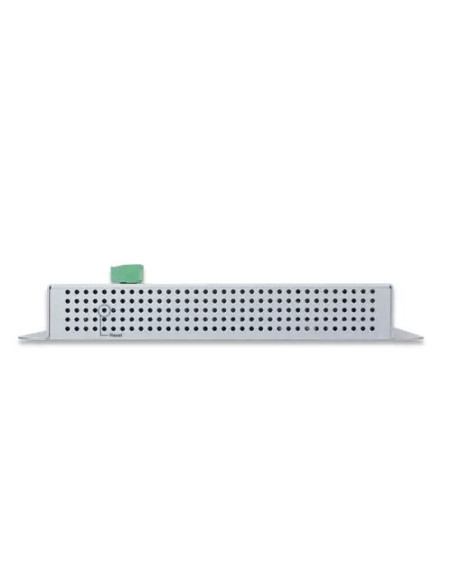

PLANET WGR-500-4PV Industrial Wall Mount 4-Port 30W 802.3at PoE Gigabit Router with LCD Touch Screen

PLANET Industrial Wall Mount 4-Port 30W 802.3at PoE Gigabit Router with LCD Touch Screen

WGR-500-4PV
Available On Backorder
$372.90
Tax included

PLANET WGR-500-4PV is an industrial router with 802.3at PoE+ capability, designed for Internet of Things (IoT) networks. It comes with an intuitive touch panel on its front panel that facilitates the Ethernet PoE PD management that greatly promotes management efficiency in Industrial networks, such as factory, transportation, government buildings, and other public areas. It also features the following special management and operation functions. The WGR-500-4PV is the best solution for industry router application.

The WGR-500-4PV is capable of having a maximum of up to 120 watts of power output and can deliver up to 36W for each port. The compact, flat and wall-mounted design fits easily in any space-limited location. It adopts the user-friendly “Front Access” design, making the installing, cable wiring, LED monitoring and maintenance of the WGR-500-4PV placed in an enclosure very convenient for technicians. The WGR-500-4PV can be installed by fixed wall mounting, magnetic wall mounting or DIN rail, thereby making its usability more flexible.

Physical Port

  • 4-port 10/100/1000BASE-T RJ45 with IEEE 802.3af / 802.3at PoE injector
  • 1-port 10/100/1000BASE-T RJ45 for WAN port or LAN port interface (router mode or switch mode)
  • 1 x USB 3.0 port for backup and restoration of configuration file

Power over Ethernet

  • Up to 4 ports of IEEE 802.3af/802.3at devices powered
  • Supports PoE power up to 36 watts for each PoE port
  • Auto detects powered device (PD)
  • Remote power feeding up to 100 meters
  • PoE Management

Industrial Case and Installation

  • Compact size with fixed wall mounting, magnetic wall mounting or DIN-rail mounting
  • IP30 metal case
  • Supports -10 to 60 degrees C operating temperature
  • Supports ESD 6KV DC Ethernet protection
  • Dual 48V~56V DC wide power input with polarity reverse protect function
  • 3-pin terminal block or DC jack connector



Device Type
Power Over Ethernet, Router
Device Features
Industrial
Power Input
DC
POE Ports
4
Power Over Ethernet
48V 30W 802.3at, 48V 15W 802.3af
Ethernet Ports
5
No reviews

Hardware Specifications
Interface LAN: 4 x 10/100/1000 BASE-T, auto-negotiation, auto MDI/MDI-X RJ45 port
WAN: 1 x 10/100/1000 BASE-T, auto-negotiation, auto MDI/MDI-X RJ45 port
LCD Monitor (W x H) 50mm x 37mm, 2.4-inch TFT color touchscreen
USB Port 1 x USB 3.0 for backup and restoration of configuration file
Reset Button < 5 sec: System reboot
> 5 sec: Factory default
ESD Protection 6KV DC
Enclosure IP30 metal case
Installation DIN-rail or wall mounting
Connector Removable 3-pin terminal block for power input
 - Pin 1/2 for Power (Pin 1: V+ / Pin 2: V-)
 - Pin 3 for earth ground
DC power jack with 2.1mm central pole
LED Indicator System:
 Internet (Green)
 PWR (Green)
 SYS (Green)
Per 10/100/1000T RJ45 Ports:
 10/100 LNK/ACT (Green)
 1000 LNK/ACT (Orange)
Dimensions (W x D x H) 180 x 140 x 24.4 mm
Weight 728 g
Power Requirements Dual 48~56V DC (>51V DC for PoE+ output recommended)
Power Consumption Max. 7.6 watts/25.9 BTU (Power on without any connection)
Max. 134 watts/457 BTU (Full loading with PoE)
Router Features
Internet Connection Type Shares data and Internet access for users, supporting the following internet accesses:
■ PPPoE
■ Static IP
■ Dynamic IP
Routing Protocol Static routing
RIPv1/2
Security DOS protection
MAC/IP/Port/URL filtering
Protocol / Feature 802.1Q tag-based VLAN
802.1d spanning tree
QoS
NAT and HW NAT
Port Forwarding
DMZ
UPnP and PLANET DDNS
System Management Web-based (HTTP) configuration
SNTP time synchronization
System log supports remote log
SNMP v1, v2c
Power Over Ethernet
PoE Standard IEEE 802.3at Power over Ethernet Plus/PSE
PoE Power Supply Type End-span
PoE Power Output IEEE 802.3af Standard
 - Per port 48V~51V DC (depending on the power supply), max. 15.4 watts
IEEE 802.3at Standard
 - Per port 51V~56V DC (depending on the power supply), max. 36 watts
Power Pin Assignment 1/2(+), 3/6(-)
PoE Power Budget 120W maximum (depending on power input)
Max. Number of Class 4 PDs 4
Standards Conformance
Regulatory Compliance FCC Part 15 Class A, CE
Stability Testing IEC60068-2-32 (free fall)
IEC60068-2-27 (shock)
IEC60068-2-6 (vibration)
Standards Compliance IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX/100BASE-FX
IEEE 802.3ab Gigabit 1000T
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1p Class of Service
IEEE 802.1Q VLAN tagging
RFC 768 UDP
RFC 793 TFTP
RFC 791 IP
RFC 792 ICMP
RFC 2068 HTTP
Environment
Operating Temperature -10 ~ 60 degrees C
Storage Temperature -20 ~ 70 degrees C
Humidity 5 ~ 95% (non-condensing)
