POE-TESTER+

Quick and easy test on RJ45 outlet for Power over Ethernet existence in a second

PLANET POE-TESTER+ is a new generation easy-to-use PoE diagnostic adapter for network installers, system integrator, company MIS and even home users to quickly identify the existence of Power over Ethernet on applications network. It is designed to detect if the IEEE 802.3af/at/bt PoE voltage runs over the UTP cable and identify the type of PSE (Power Source Equipment) for troubleshooting.



POE-TESTER+ - PLANET IEEE 802.3af/at/bt Power over Ethernet Tester

Plug and Show LED Indicators

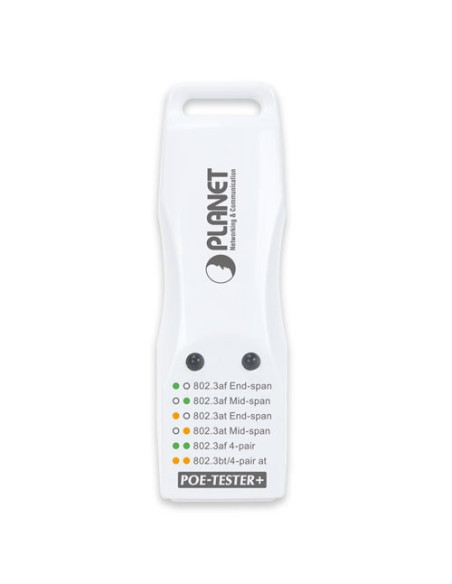

Simply connect the POE-TESTER+ to the PSE or the RJ45 outlet and the LED will light up when it detects the PoE voltage via the UTP cable and identifies the PSE to be mid-span, end-span, 802.3af PoE mode, 802.3at PoE+ mode or even the latest 4-pair 802.3bt PoE++ mode in a second.

Identify PoE PSE Modes and Standards

The POE-TESTER+ provides two bi-color LEDs for quick and easy PSE mode identification. A Power over Ethernet system comprises a PSE (Power Sourcing Equipment) and a PD (Powered Device). The PSE is a device that will provide power in a PoE setup. There are three types of PSE, Mode A, Mode B and 4-pair mode. The PSE may be a Mode A, end-span PoE switch or a Mode B, mid-span PoE injector or a 4-pair mode PSE that is end-span plus mid-span.

PoE PSE Modes
UTP Power
Pin Assignment
PSE Devices
Mode A
End-span
Pins 1, 2, 3 and 6
PoE Switch
PoE Media Converter
PoE Extender
Mode B
Mid-span
Pins 4, 5, 7 and 8
PoE Single-port Injector
PoE Multi-port Injector Hub
4-pair PSE
All pins
802.3bt/PoH PoE Switch
802.3bt/PoH Media Converter
802.3bt/PoH PoE Extender
802.3bt/PoH PoE Injector
802.3bt/PoH PoE Injector Hub

The PD is a PoE-enabled terminal by PSE and thus consumes energy, such as IP network cameras, VoIP phones and wireless access points and more.

PoE Installation Troubleshooting

Although PDs that implement only Mode A with end-span or Mode B with mid-span are disallowed by the IEEE 802.3af/at standard, there are still some of the PDs that are designed to work with only one of the modes. Thus, it will cause the PoE PSE and PD not to be compatible with each other in the applications. For example, an end-span designed PoE switch cannot power on the remote mid-span only wireless access point. But most of the time, the installers would not exactly know what the remote PSE devices are. PLANET POE-TESTER+ checks your UTP cable for power and identifies its source, mid-span, end-span or mid-span + end-span. Make sure at the end of UTP cable there is existence of PoE, and then the next step is to check if the PD is compatible with the PSE, or it is a malfunctioned PD.

Applications

With compact size and configure free design, the POE-TESTER+ is truly the best handy PoE test tool for the installation of PD device to test if IEEE 802.3af/at/bt PoE power is sent to wireless access points, IP surveillance cameras, VoIP phones and other PoE devices. It offers plug-and-play PoE diagnostic and PoE installation for installers and system integrators.

  • Quickly tests RJ45 outlet for Power over Ethernet existence
  • Two bi-color LEDs indicate the PoE standards and types of PSE (power source equipment)
    - IEEE 802.3af PoE
    - IEEE 802.3at PoE+
    - IEEE 802.3bt PoE++
    - End-span PoE switch
    - Mid-span PoE injector / injector hub
    - 4-pair, end-span + mid-span 802.3bt PoE++ switch/injector
  • Compliant with IEEE 802.3bt/at/af PoE standard
  • Compact size, Plug and Play design

Device Type
Power Over Ethernet
POE Ports
1
4711605285803
POE-TESTER+
