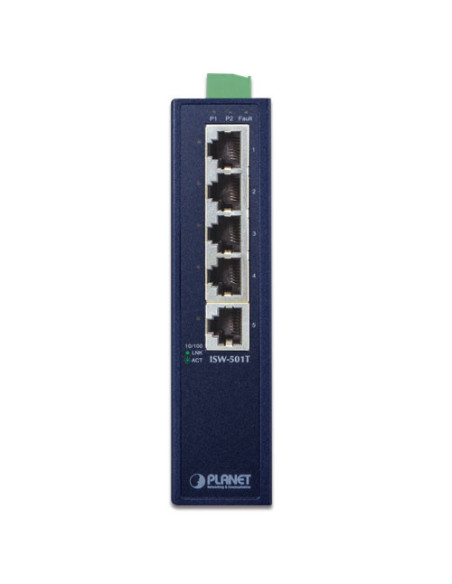

PLANET ISW-501T 5-Port 10/100TX Industrial Fast Ethernet Switch

ISW-501T
*** Out of stock ATM, Available On Backorder ***
$143.00
Tax included

ISW-501T

Slim Type with more Practicability and Convenience
PLANET ISW-501T, an Industrial 5-port Fast Ethernet Switch, provides non-blocking wire-speed performance in harsh industrial environment. It also provides 5-port 10/100BASE-TX RJ45 copper interfaces delivered in an IP30 rugged, strong case with redundant power system. Its slim case is suitable for such applications as surveillance system deployments, control management and wireless service in climatically demanding environments with wide temperature range from -40 to 75 degrees C.



ISW-501T - PLANET 5-Port 10/100TX Industrial Fast Ethernet Switch

Energy Saving with Lower Power Consumption
The ISW-501T, adopting the advanced green networking technology, provides the IEEE 802.3az protocol based power saving. This feature makes the ISW-501T consume very low power in full load operation mode, which helps conserve energy effectively but maintains high performance efficiently.

Stable Performance under Difficult Environments
The ISW-501T provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curb-side traffic control cabinets. Being able to operate under the temperature range from -40 to 75 degrees C, the ISW-501T can be placed in almost any difficult environment. The ISW-501T also possesses an integrated power supply source with wide range of voltages (12 to 48V DC, 24V AC) for worldwide high availability applications requiring dual or backup power inputs.


Robust Switch Performance
Built in a high-performance switch architecture, the ISW-501T comes with five 10/100Mbps Fast Ethernet ports providing non-blocking switch fabric and wire-speed throughput as high as 1Gbps, and the 1K MAC address. Thus, the ISW-501T can transfer wire-speed packets without the risk of packet loss. The flow control function enables the ISW-501T to provide fast and reliable data transfer.

All of the RJ45 copper interfaces in the ISW-501T support 10/100Mbps auto negotiation for optimal speed detection through RJ45 Category 5 or 5e cables. The standard auto-MDI/MDI-X support can detect the type of connection to any Ethernet device without requiring special straight-through or crossover cables.

Industrial Area Switch for Data Collection and Forwarding
The ISW-501T’s IP30-rated metal case is particularly designed for the most heavy industrial demanding environments, such as factories, harbors, warehouses, and more. When installed at these establishments, it can enhance the work performance of these establishments by speedily transferring incoming and outgoing data.

Hardware Specifications
10/100BASE-TX Auto MDI/MDIX Ports 5
LED Indicators 3 x LED for System and Power:
■ Green: DC Power 1
■ Green: DC Power 2
■ Green: Power Fault

1 x LED for each Copper Port
■ Green: 10/100 LNK/ACT
Enclosure IP30-rated metal case
Dimensions (W x D x H) 135 x 87 x 32 mm
Weight 400g
ESD Protection 6KV DC
EFT Protection 6KV DC
Power Requirements 12~48V DC, redundant power with polarity reverse protection function, 24V AC power support
Power Consumption/Dissipation 1.6 watts/5.4BTU
Installation DIN rail kit and wall-mount ear
Alarm Provides one relay output for power failure
Alarm relay current carry ability: 3A @ DC 30V

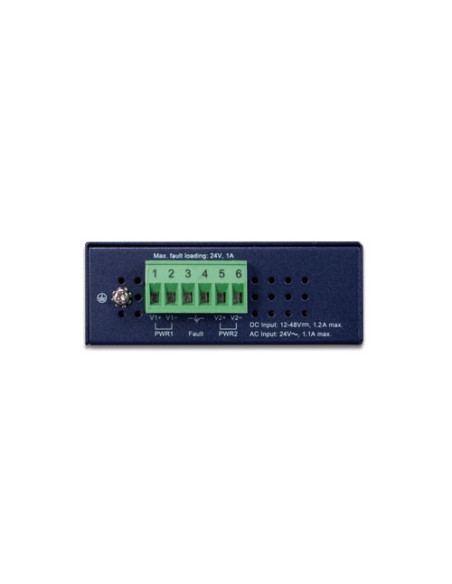

Connector Removable 6-pin terminal block
Pin 1/2 for Power 1; Pin 3/4 for fault alarm; Pin 5/6 for Power 2
Switch Specifications
Switch Processing Scheme Store-and-Forward
Address Table 1K
Buffer Memory Embedded 448K bits packet buffer
Flow Control Back pressure for half duplex,
IEEE 802.3x pause frame for full duplex
Switch Fabric 1Gbps
Throughput (packet per second) 0.74Mpps
Network Cables 10BASE-T: 2-pair UTP Cat. 3, 4, 5, up to 100 meters
100BASE-TX: 2-pair UTP Cat. 5, 5e up to 100 meters
Standards Conformance
Standards Compliance IEEE 802.3 Ethernet
IEEE 802.3u Fast Ethernet
IEEE 802.3x Full Duplex Flow Control
IEEE 802.3az Energy Efficient Ethernet
Temperature Operating: -40~75 degrees C
Storage: -40~75 degrees C
Humidity Operating: 5% to 95%, Storage: 5% to 95% (non-condensing)
Regulatory Compliance FCC Part 15 Class A, CE
Stability Testing IEC60068-2-32 (free fall)
IEC60068-2-27 (shock-proof)
IEC60068-2-6 (vibration-proof)
Device Type
Network Switch
Device Features
Unmanaged, Industrial
Power Input
AC, DC
Ethernet Ports
5
Environment Temperature
-40℃~75℃
Installation Type
DIN-rail, Wall-mount
