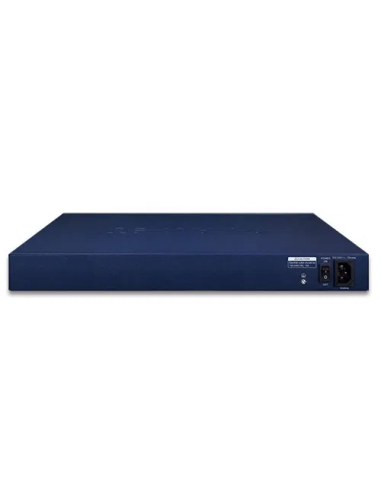

PLANET HPOE-2400G 24-Port Gigabit IEEE 802.3at PoE+ Managed Injector Hub (720W)

HPOE-2400G
Last items in stock
$880.00
Tax included

HPOE-2400G

The HPOE-2400G is a 24-port we management injector hub with PoE capabilities.


• Ports: 24 Data In, 24 Data + Power Out, 1 10/100/1000T Mgmt.
• Standard: 802.3at
• PoE Power Budget: 720W @ 0~39°C
• Power Consumption: 800W max.
• Power Requirement: 100-240V AC, 50/60Hz, 8A
• Operating Temperature: 0 to 50°C
• TAA Compliant



HPOE-2400G - PLANET 24-Port Gigabit IEEE 802.3at PoE+ Managed Injector Hub (720W)

PoE+ Injector Hub

A Perfect Managed PoE+ Injector Hub with Full Power Budget
The HPOE-2400G is a high-density, rack-mountable managed PoE+ injector hub featuring PLANET intelligent PoE functions through web user interface for remote management. It provides 24 10/100/1000BASE-T Ethernet ports featuring 802.3at PoE+ injector with a total PoE budget of 720 watts. Each PoE port can deliver up to 36-watt power over Cat.5/5e/6 Ethernet UTP cables which allow data and power to transmit simultaneously to a remote 802.3at/af powered device (PD).

The HPOE-2400G enables centralization of the power supply and optimizes the installation and power management of remote network devices, and provides a quick, safe and cost-effective Power over Ethernet network solution for small businesses and enterprises.

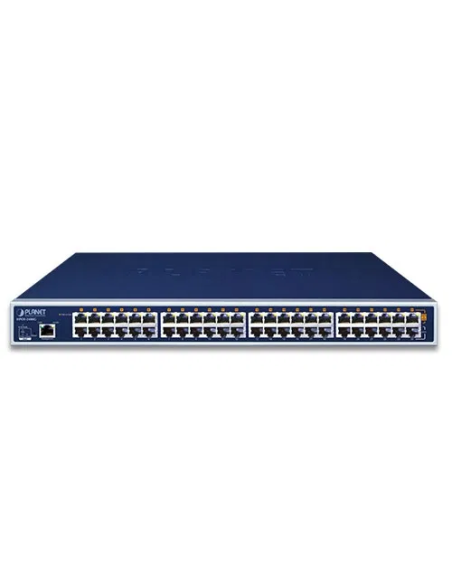

HPOE-2400G front panel

Quick and Easy PoE Network Deployment
The HPOE-2400G is installed between a regular Ethernet Switch and the PDs. There are totally 48 RJ45 STP ports on the front panel of the HPOE-2400G, of which the 24 ports are on the lower stack functioned as “Data input” while the other 24 ports are on the upper stack functioned as “PoE (Data and Power) output”. Both power and data are transferred simultaneously over the UTP cables to PDs without affecting the existing network performance and functions.

HPOE-2400G PoE Hub Application Diagram


With data and Power over Ethernet from one unit, the HPOE-2400G can reduce power cable deployment and eliminate the need for dedicated electrical outlets on the wall, ceiling or any unreachable place.


IEEE 802.3at PoE+ Standard Compliance
The PoE in-line power adopting the IEEE 802.3at Power over Ethernet Plus standard makes the HPOE-2400G able to deliver per port up to 36 watts of power to each remote PoE compliant powered device. It possesses double amount of power capability than the conventional 802.3af PoE and is an ideal solution to satisfy the growing demand for higher power consuming network PDs, such as PTZ (Pan, Tilt and Zoom), speed dome network cameras, color touch-screen or video and voice over IP (VoIP) telephones, multi-channel 802.11ac wireless LAN access points and other network devices.

IEEE 802.3at PoE+


Friendly Web Management Interface
To efficiently manage the powered devices, the HPOE-2400G provides simple Web management interface in which administrators can control the system and PoE functions for powered devices. It can automatically detect the power status of each port and show messages on its Web management interface. These features also provide users with a cost-effective way to manage the device via Internet whenever they are at work or at home.

HPOE-1200G Web Interface

Built-in Unique PoE Functions for Powered Device Management
As it is the managed PoE Injector Hub for VoIP, wireless and surveillance networks, the HPOE-2400G features the following special PoE management functions:

• PoE schedule
• PD alive check
• Scheduled power recycling
• PoE usage monitoring
• Over temperature protection

Intelligent Powered Device Alive Check
PLANET’s Managed PoE products adopt not only Power over Ethernet technology, but also automated PD monitoring and real-time PoE status. The HPOE-2400G can be configured to monitor connected PD’s status in real time via ping action through the uplinked Ethernet switch. Once the PD stops working and responding, the HPOE-2400G will recycle the PoE port power and bring the PD back to work. It also will greatly enhance the network reliability in that the PoE port will reset the PD power, thus reducing administrator’s management burden.

PoE PD Alive Check

PoE Schedule for Energy Saving
Under the trend of energy saving worldwide and contributing to environmental protection on the Earth, the HPOE-2400G can effectively control the power supply besides its capability of giving high watts power. The built-in “PoE schedule” function helps you to enable or disable PoE power feeding for each PoE port during specified time intervals and it is a powerful function to help SMBs or enterprises save power and money.

Advanced Power Management
To facilitate power management, the HPOE-2400G comes with powerful PoE management features such as over temperature protection, usage threshold alert and auto power allocation to prevent power budget overloading. The PoE power budget can be allocated by priorities or classification and sent alert event logs when power usage reaches the defined threshold.

PoE Usage Monitoring
Via the power usage chart in the web management interface, the HPOE-2400G enables the administrator to monitor the status of the power usage of the connected PDs in real time.

High Power Budget for PoE Extension
With 36-watt PoE output capability, the HPOE-2400G can extend much longer distance by using PLANET PoE Extender for powering up the PoE PD which can be installed over more than 100 meters away. By daisy-chaining multiple PLANET PoE Extenders, it offers the great flexibility of doubling, tripling or quadrupling the distance of PoE network.

Smart Fan Design for Silent Operation
The HPOE-2400G features a low noise design and an effective ventilation system. It supports the smart fan technology that automatically controls the speed of the built-in fan to reduce noise and maintain the temperature of the PoE injector hub for optimal power output capability. The HPOE-2400G is able to operate reliably, stably and quietly in any environment without affecting its performance.

Device Type
Power Over Ethernet
Power Input
AC
Device Features
Industrial
POE Ports
24
Power Over Ethernet
802.3at PoE
Ethernet Ports
24
Environment Temperature
0℃~50℃
No reviews

PLANET IPOE-470-12V

Hardware Specifications
Copper Ports 4-pair 10/100/1000BASE-T RJ45
■ Data input port 1 to Port 4
■ Data + PoE output port 1 to Port 4
Connector Removable 6-pin terminal block
Pins 1 and 2 for Power 1
Pins 5 and 6 for Power 2
Pins 4 and 4 for fault alarm
Data Rate 10/100/1000Mbps
Power Requirements IPOE-470: 48~54V DC, redundant power with reverse polarity protection
IPOE-470-12V: 12~54V DC, redundant power with reverse polarity protection
Power Requirements (Ethernet Full Loading) IPOE-470:
System ON without loading
 48V DC: 1.92 watts/6.6BTU
 54V DC: 2.16 watts/7.4BTU
Full loading with PoE
 48V DC: 241 watts/822.3BTU
 54V DC: 244 watts/832.6BTU

IPOE-470-12V:
System ON without loading
 12V DC: 2.52 watts/8.6BTU
 24V DC: 3.6 watts/12.3BTU
 48V DC: 3.36 watts/11.5BTU
 54V DC: 3.24 watts/11.1BTU
Full loading with PoE
 12V DC: 72 watts/245.7BTU
 24V DC: 131 watts/447BTU
 48V DC: 249 watts/849.6BTU
 54V DC: 251 watts/856.5BTU
DIP Switch Per PoE port
Off: BT/PoH – 802.3bt PoE++/PoH + Legacy 95W PoE output
ON: Force - 60w PoE output
Dimensions 50 x 87.8 x 135 mm (W x D x H)
Weight IPOE-470: 537g
IPOE-470-12V: 679g
Enclosure IP30 metal case
Installation DIN-rail kit and wall-mount kit
LED Indicator System:
 Power 1 (Green)
 Power 2 (Green)
 Fault (Red)
PoE Usage:
 80W/160W/240W (Amber)
802.3bt PoE++ Port:
 PoE-in-use x 1 (Amber)
ESD Protection 6KV
Surge Protection 6KV
Network Cable Twisted-pair cable up to 100 meters (328ft)
10BASE-T: 4-pair UTP Cat. 3, 4, 5, 5e, 6
100BASE-TX: 4-pair UTP Cat. 5, 5e, 6
1000BASE-T: 4-pair UTP Cat. 5e, 6
Power over Ethernet
PoE Standard IEEE 802.3bt PoE++, 4-pair type 4 PSE
Backward compatible with IEEE 802.3at PoE+ PSE
PoE Power Supply Type 802.3bt PoE++/PoH/Force End-span + Mid-span
802.3at PoE+ End-span/Mid-span
Power Pin Assignment Pair 1 End-span: 1/2(-), 3/6(+)
Pair 2 Mid-span: 4/5(+), 7/8(-)
802.3bt/PoH: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
PoE Power Output Max. 90 watts to 802.3bt PoE++ PD
Max. 95 watts to PoH PD
Max. 60 watts to force-powered PD
Max. 36 watts to 802.3at PoE+ PD
PoE Power Budget (max.) IPOE-470:
120W@48V DC input
240W@52V-54V DC input
IPOE-470-12V:
60W@12V-23V DC input
120W@24V-47V DC input
240W@48-54V DC input
Number of devices that can be powered 4
Standards Conformance
Regulatory Compliance FCC Part 15 Class A, CE
Stability Testing IEC 60068-2-32 (free fall)
IEC 60068-2-27 (shock)
IEC 60068-2-6 (vibration)
Standards Compliance IEEE 802.3 Ethernet
IEEE 802.3u Fast Ethernet
IEEE 802.3ab Gigabit Ethernet
IEEE 802.3at Power over Ethernet Plus
IEEE 802.3bt Power over Ethernet Plus Plus
Environment
Temperature Operating: -40~75 degrees C
Storage: -40~75 degrees C
Humidity Operating: 5~90% (non-condensing)
Storage: 5~90% (non-condensing)
