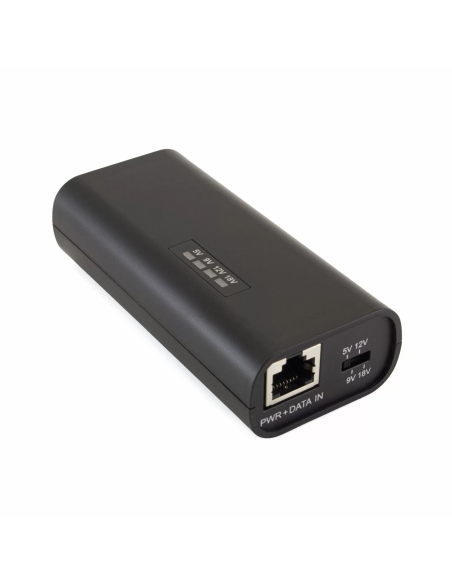

Alfa PD-1000D Selectable 5/9/12/18 Output Voltage Surge Protected PoE Splitter

Power over Ethernet (PoE) Splitter 802.3 af/at with selectable output Voltage

PD-1000D is a very useful device when there is POE switch and a requirement to split data and power.

PD-1000D (support DC output 5V, 9V, 12V, 18V) is revolutionary technology for powering Ethernet terminals such as IP Telephone sets, wireless access point, and IP cameras. The technology incorporates electrical power onto a LAN data line enabling the delivery of operating power in addition to data communicate to terminals over standard cabling infrastructure. Product Features:

• Convey power and data to your LAN equipment through Ethernet cable
• Standard input IEEE802.3at/af
• Support 5V, 9V, 12V, 18V output adjustable
• Regulate output voltage by switch
• Delivering power and data to equipment
• Supports Gigabit Ethernet
• Additional +/- 15KV of Ethernet isolation for ESD/Surge Protection

Specification:

• Standards IEEE802.3, 10BASE T/1000BASE-T
• IEEE802.3u,100BASE-TX
• IEEE802.3at, IEEE802.3af, Power over Ethernet
• Interface

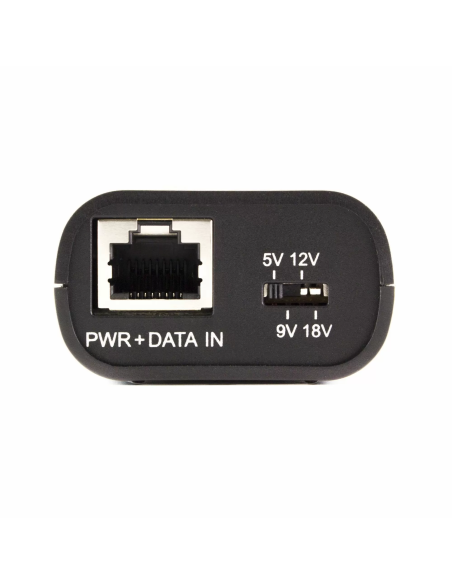

• Data and Power in: 1 x RJ-45

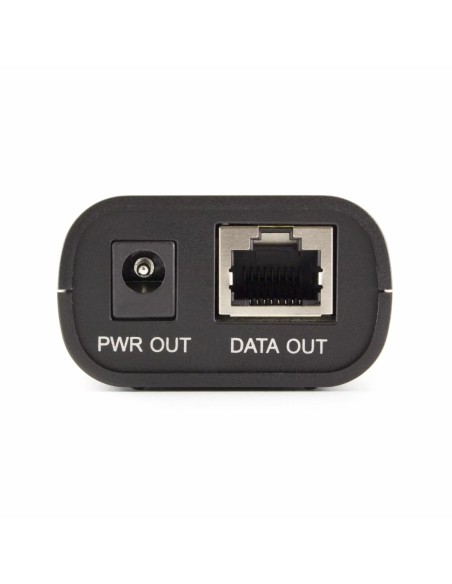

• Data out: 1 x RJ45
• Power out: 1 x DC jack 5v,9v,12v,18v Switch: 1x 4 segment DIP switch
• Power Jack Diameter: 5.5*2.1*12 mm
• Transmission Media
• RJ-45 (10/100BASE-T): Cat.3, 4, 5 UTP/STP
• RJ-45 (1000BASE-T): Cat.5, 5e, 6,7 UTP/STP
• LED Indicators
• system power (green)
• Surge Protection: +/-15KV
• Power Input: DC 48V
• Dimension: 28(H) x 55(W) x 81(D) mm
• Temperature Operating: 0℃ ~40℃
