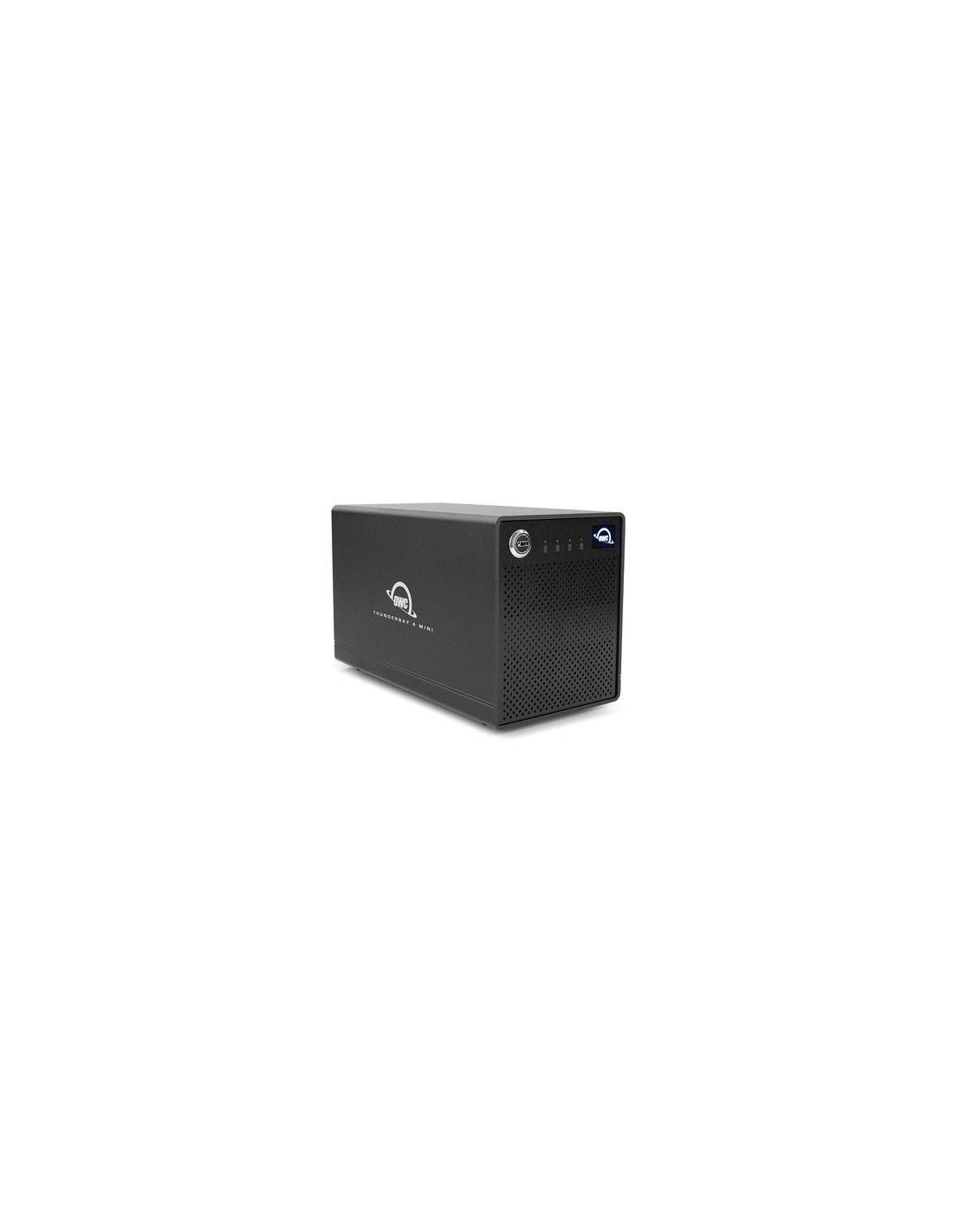

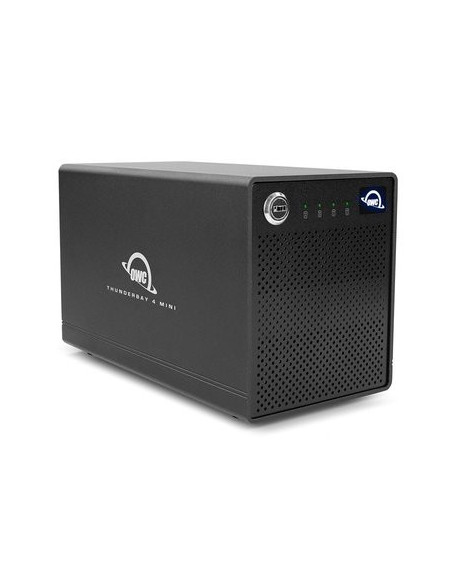

OWC OWCTB4MJB000 ThunderBay 4 mini Four-Bay Thunderbolt 2 External Storage Enclosure for 2.5-inch SATA Drives
OWCTB4MJB000
In Stock
$500.00
Tax included
OWCTB4MJB000
The Perfect Combination of Speed, Size, and Convenience for Permanent Access to Your Data
- Four hot-swappable 2.5-inch drive bays: mix or match 2.5-inch HDDs and SSDs
- Fast: up to 750MB/s HDD peak performance and 1346MB/s SSD peak performance (RAID 0)
- Expandable: daisy-chain up to five additional Thunderbolt devices
- Certified: Thunderbolt certified for Mac and Windows
OWCTB4MJB000 - OWC Mercury Pro U.2 Dual-Bay Thunderbolt External Storage Enclosure for 2.5 / 3.5 inch NVMe U.2 SSDs and Adapters
Big RAID System Performance in a Compact Design

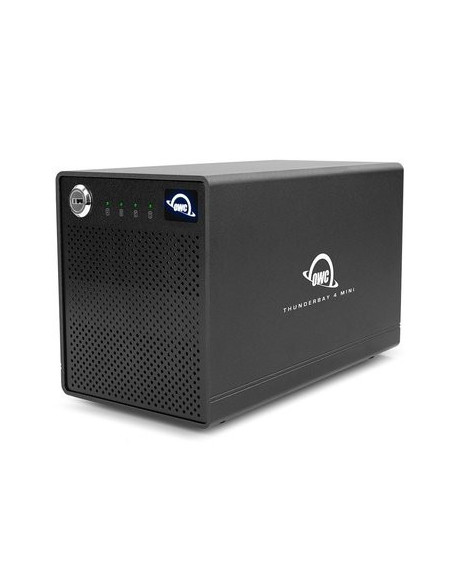

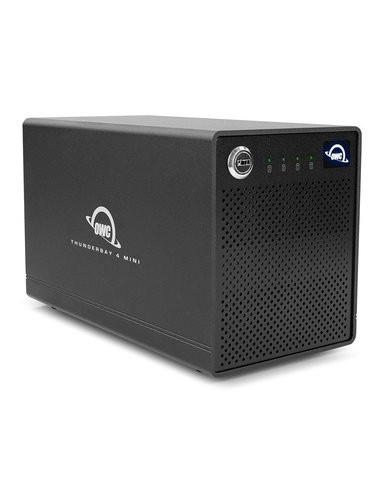

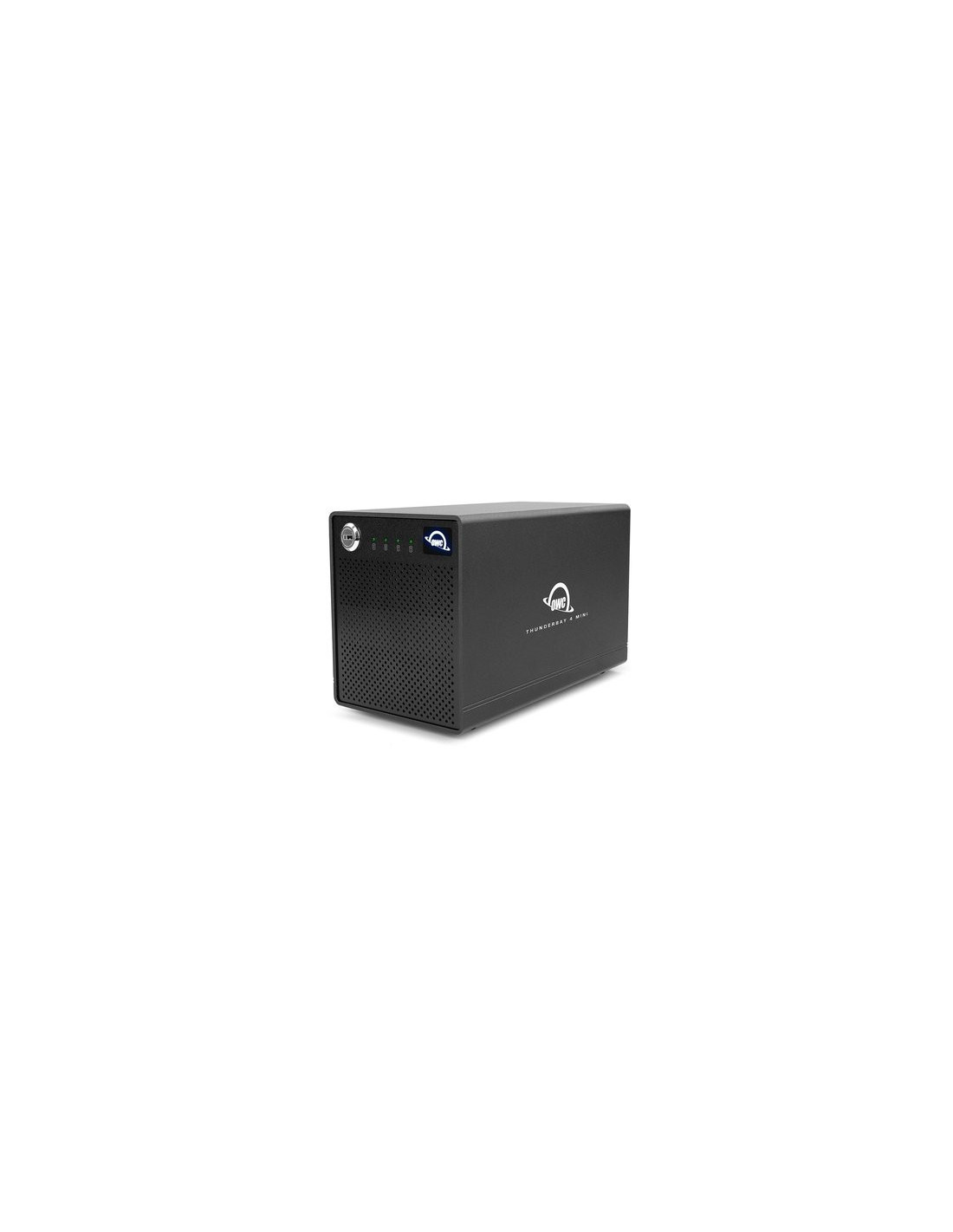

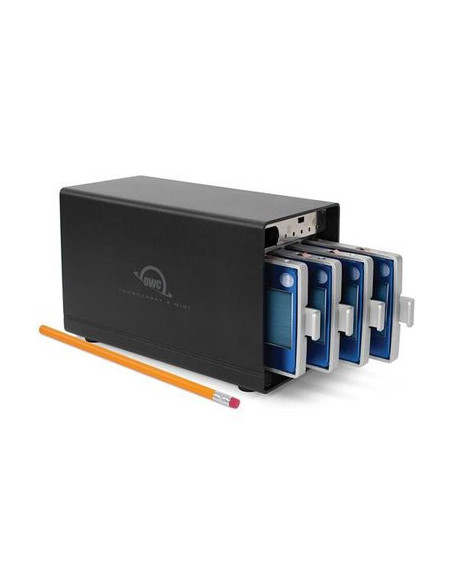

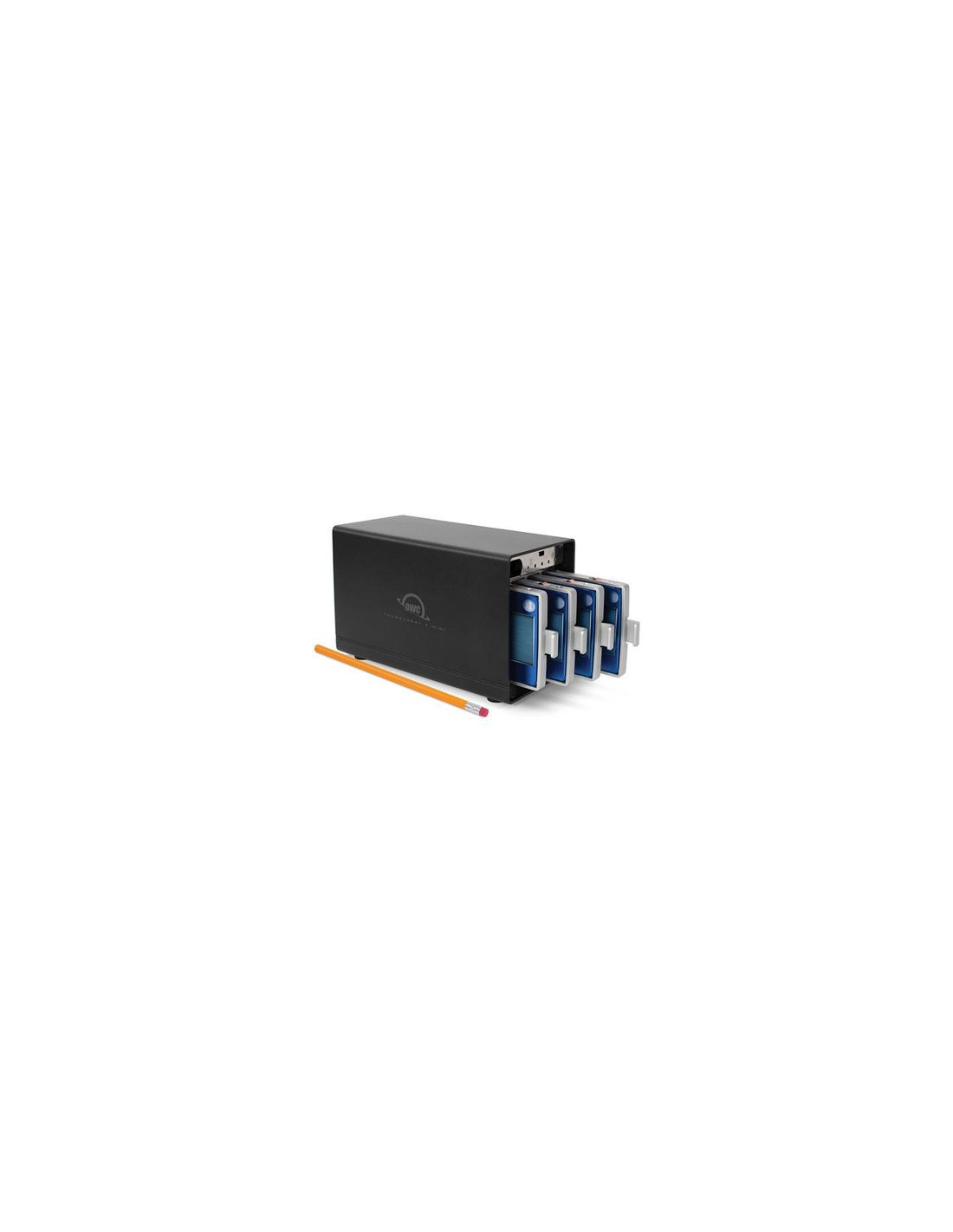

The ThunderBay 4 mini is a compact data storage enclosure that you can populate with new or existing 2.5-inch HDDs or SSDs. It's big on performance and flexibility, yet ThunderBay 4 mini is about the length of a pencil and can weigh as little as 3.1 pounds with drives.
The rugged heat-dissipating aluminum enclosure features two Thunderbolt 2 (Thunderbolt 10Gb/s backward compatible1) ports for up to 1346MB/s speeds, so you have more than enough bandwidth to handle personal and business backups – all the way up to today's highest resolution audio, photo, and video formats. If you are seeking big RAID performance that's small enough to fit on a desk, in a rack, or on a DIT cart, your wish is now a reality.
Speed, size, and convenience — the OWC ThunderBay 4 mini provides everything a demanding workflow requires.
A New World of Drive Use Flexibility
With four drive bays, you can mix or match different brand and capacity 2.5-inch SSDs and HDDs. Use mixed drives independently or combine drives as a RAID (requires RAID setup and management software, such as OWC SoftRAID). Populate this empty enclosure with a combination of drives that achieves your desired balance of storage, performance, and data redundancy.
Expand production capabilities in industry-leading creative platforms like Final Cut X, Avid Pro Tools, Apple Pro Logic, and Adobe Lightroom, edit large images, manage massive photo and audio libraries, store drone videos, use it as a transport drive…whatever the day or project demands, the ThunderBay 4 mini is the perfect workflow solution.
Install or Swap in Minutes

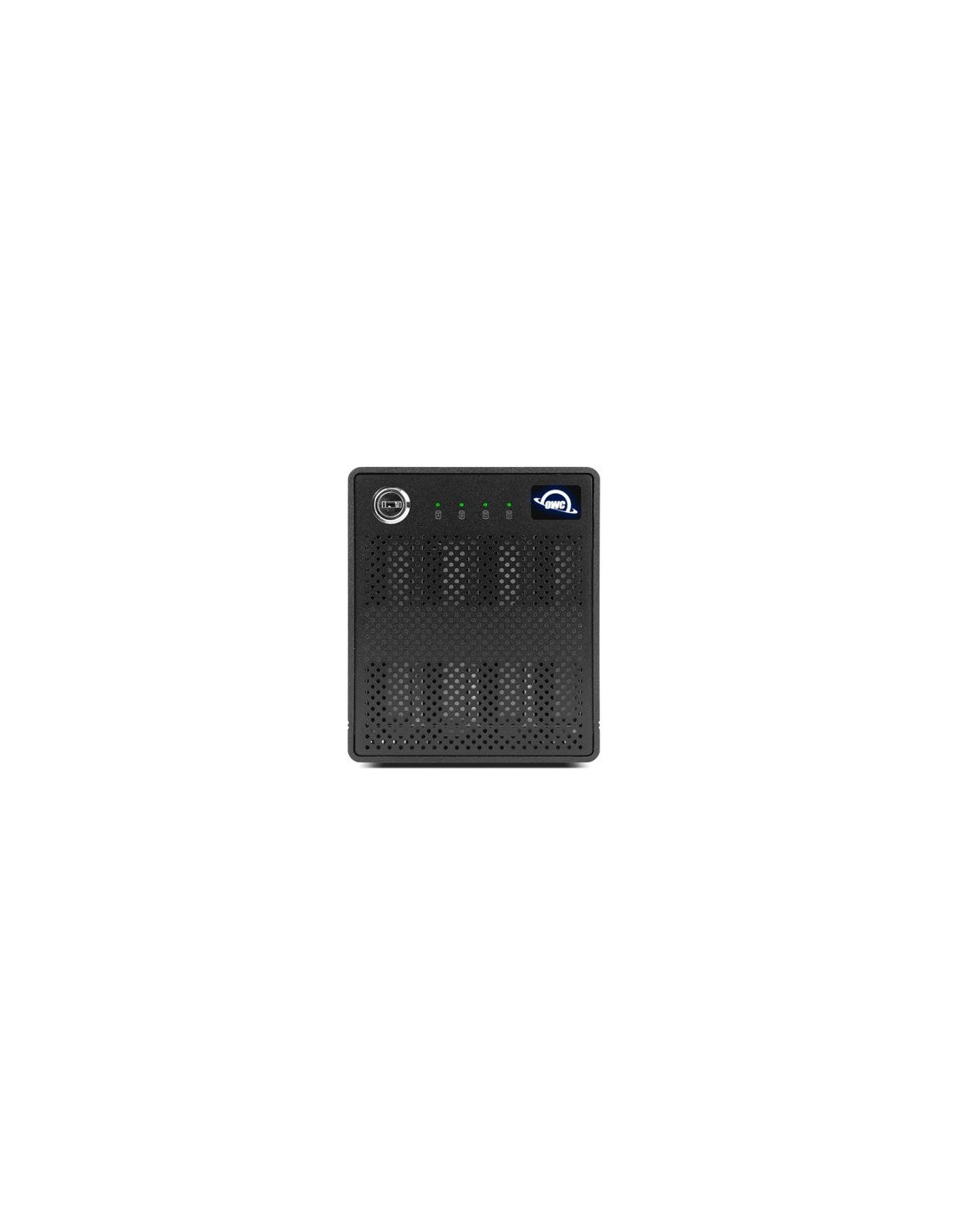

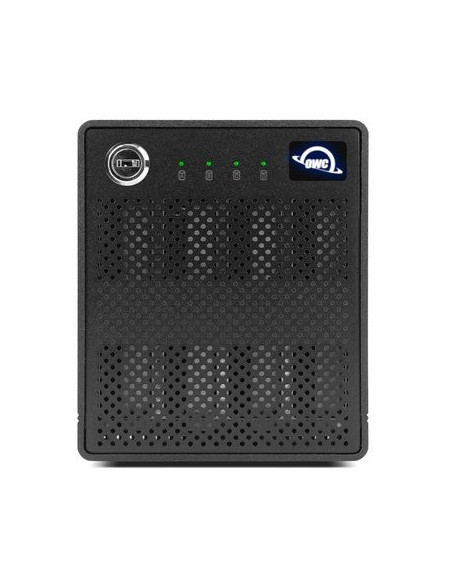

Want to access a drive or expand your storage capacity? Simply open the front panel security lock to access the four individual bays. Drives mount to a tray that slides back in and automatically plugs into a drive connector so you can get back to work in minutes.
Store More, Go Faster
With the ability to daisy-chain you can add up to five additional ThunderBay 4 mini solutions to create massive storage capacities. Merge them with RAID management software for even more flexibility, capacity, and capability. Or if speed is what you're after, connect multiple ThunderBay 4 mini solutions to multiple Thunderbolt 2 ports on your Mac or PC to achieve exponential speed capabilities.
More Powerful With SoftRAID
Need more power and protection? Choose a solution that includes OWC's powerful SoftRAID RAID software.
SoftRAID is the most powerful, intuitive software RAID utility on the market. Multiple RAID levels let you select the RAID level that fits you or your project’s needs best. If you need maximum volume capacity, optimum drive performance, data protection, or a combination of attributes, SoftRAID has you covered.
Packed with features like drive validation, verification and failure prediction—SoftRAID includes features you simply don’t get with hardware RAID. It’s like having a datacenter on your desktop! From home users looking to protect photos and documents to professionals needing to protect and quickly access projects, SoftRAID is the perfect solution.
Try SoftRAID COMPLETELY FREE for 14 Days
Start protecting yourself and your data today! Get all of SoftRAID's great disk checking and monitoring features, plus the fastest and most efficient software RAID there is.
Thunderbolt Made Easy
Have a newer Thunderbolt (USB-C) equipped Mac or iPad? Good news – the OWC ThunderBay 4 mini with Thunderbolt 2 is compatible with your device! You'll need a certified Thunderbolt 3 (USB-C) to Thunderbolt 2 (mDP) Adapter and a Thunderbolt 2 cable. The adapter is bi-directional – meaning it can connect a Thunderbolt (USB-C) device to a Thunderbolt 2 Mac or connect a Thunderbolt 2 device (like the OWC ThunderBay 4 mini) to your Thunderbolt (USB-C) Mac or iPad. This compatibility makes it easy to share a OWC ThunderBay 4 mini with both older Thunderbolt/Thunderbolt 2 Mac models and the newest Thunderbolt (USB-C) computers and devices. That's Thunderbolt made easy!
Connect the adapter to one of the available Thunderbolt (USB-C) ports on your Thunderbolt (USB-C) Mac or iPad, then use the Thunderbolt 2 Cable between the adapter and the OWC ThunderBay 4 mini. If you need a Thunderbolt 2 cable to complete your workflow, OWC offers a selection of premium Thunderbolt 2 cables.
Connect the adapter to one of the available Thunderbolt (USB-C) ports on your Thunderbolt (USB-C) Mac or iPad, then use the Thunderbolt 2 Cable between the adapter and the OWC ThunderBay 4 mini. If you need a Thunderbolt 2 cable to complete your workflow, OWC offers a selection of premium Thunderbolt 2 cables.
Professional Grade = Ready to Work
We understand having confidence in gear reliability is paramount to creative professionals. That's why every ThunderBay 4 mini enclosure undergoes a multi-step performance certification prior to shipping. This ensures your ThunderBay 4 mini enclosure arrives ready for demanding use.
Support You Can Trust
Like all OWC products, ThunderBay 4 mini is fully backed by OWC's award-winning support team and OWC Limited Warranty.
- When connected to a Thunderbolt (10Gb/s) host, data transfer will be limited to 10Gb/s.
- Advanced RAID features require RAID management software (such as OWC SoftRAID, available separately).
- (1) OWC ThunderBay 4 mini External Storage Enclosure
- (1) 1.0M Thunderbolt 2 Cable
- (1) External Power Supply and Power Cable
- (2) Security Keys for Front Panel Lock
- (1) Quick Start Guide for OWC ThunderBay 4 mini with Thunderbolt 2
- (1) Assembly Manual & User Guide for OWC ThunderBay 4 mini with Thunderbolt 2
Number of Bays
- 4
Mechanisms Supported
- Four (4) 2.5-inch SATA drives
Hot Swap Support
- Yes
Hot Plug Support
- Yes
Boot Support
- Independent volumes bootable in macOS.
Drive Interface
- SATA
RAID Capable
- Yes
RAID Levels Supported
- RAID 0
- RAID 1
- JBOD
RAID Features
- Software RAID

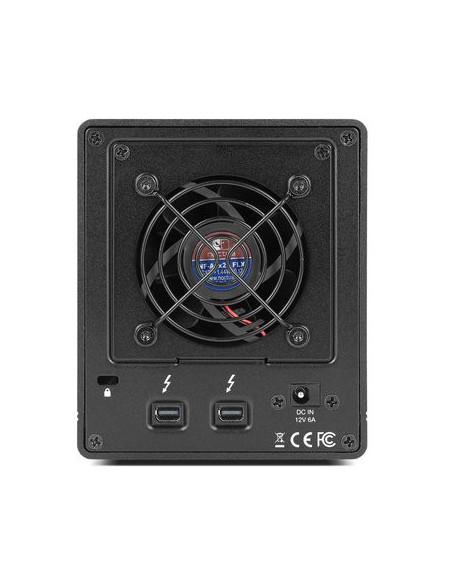

Device Ports
- (1) Host Port - Thunderbolt 2 up to 20 Gb/s (2500 MB/s) - Thunderbolt 1 backwards compatible
- (1) Thunderbolt 2 Port
Data Transfer Rate (Maximum)
- Thunderbolt 2 : Up to 20 Gb/s (or 2500 MB/s)
- Thunderbolt : Up to 10 Gb/s (or (1250 MB/s)
Chipset
- Thunderbolt 2: Intel JHL5520
- SATA Controller: ASMedia ASM-1062
Host Port Requirements
- Thunderbolt 2 (mDP) port (backwards compatible with Thunderbolt1)
Mac OS Compatibility
- macOS 10.12 Sierra
- macOS 10.13 High Sierra
- macOS 10.14 Mojave
- macOS 10.15 Catalina
- macOS 11.x Big Sur
- macOS 12.x Monterey
- macOS 13.x Ventura
PC OS Compatibility
- Windows 7 32-bit Edition
- Windows 7 64-bit Edition
- Windows 8 32-bit Edition
- Windows 8 64-bit Edition
- Windows 8.1 32-bit Edition
- Windows 8.1 64-bit Edition
- Windows 10 32-bit Edition
- Windows 10 64-bit Edition
- Windows 11
Driver Required
- SoftRAID Only
Other Requirements
- Requires macOS 10.12.6 or later.
- Will work with Thunderbolt (10Gb/s) Mac models, but data transfer will be limited to 10Gb/s.
External Power Adapter
- Yes
Power Supply
- External UL-listed universal auto-switching power supply
AC Input
- 100-240V, 50-60Hz, 2.0A
DC Output
- +12V, 6A
Wattage
- 72W
Cooling
- (1) 60mm cooling fan
Security Slot
- Yes
Power/Activity LED
- Yes
Housing Color
- Black
Housing Material
- Aluminum
Dimensions
- Height: 11.7 cm (4.6 in)
- Length: 19.1 cm (7.5 in)
- Width: 9.6 cm (3.8 in)
- Weight1.1 kg (2.51 lbs)
Certifications
- CE
- FCC
- VCCI
- RCM
- BSMI
Reach Certification
- Yes
Ambient Temperature
- Operating: 41°F to 95°F (5°C to 35°C)
- Non-Operating: -4°F to 140°F (-20°C to 60°C)
Altitude
- Operating: -304.8 m to 3,048.0 m (-1,000 ft to 10,000 ft)
- Non-Operating: -304.8 m to 12,192.0 m (-1,000 ft to 40,000 ft)
Humidity
- Operating: 8% to 90% non-condensing
- Non-Operating: 5% to 95% non-condensing
Shock
- Operating: Varies depending on drive mechanism installed
- Non-Operating: Varies depending on drive mechanism installed
Noise
- Varies depending on drive mechanism installed
- When connected to a Thunderbolt (10Gb/s) host, data transfer will be limited to 10Gb/s.
- Environment Temperature
- 0℃~50℃
