EAP683 UR
Last items in stock
$297.00
Tax included

AX6000 Ceiling Mount Wi-Fi 6 Access Point

The Omada EAP683 UR is an enterprise-grade AX6000 ceiling-mounted Wi-Fi 6 access point featuring dual-band 4×4 MU-MIMO, a 2.5 Gigabit PoE+ uplink, and integration with the Omada Software Defined Networking (SDN) platform. Designed for high-density business environments, it delivers fast, reliable wireless connectivity while enabling seamless roaming, mesh networking, and centralised cloud management for simplified deployment and ongoing administration.

Key Features

  • ✓AX6000 Dual-Band Wi-Fi 6 for High-Density Enterprise Networks
  • ✓4×4 MU-MIMO, HE160 & 1024-QAM for High-Performance Wireless Connectivity
  • ✓2.5 Gigabit Ethernet Uplink with 802.3at PoE+ Support
  • ✓Omada SDN Centralised Cloud Management with Zero-Touch Provisioning
  • ✓Omada Mesh, Seamless Roaming & Band Steering for Optimised Wireless Coverage

Related Products & Accessories



Omada EAP683 UR AX6000 Ceiling Mount Wi-Fi 6 Access Point

omada EAP683 UR



The Omada EAP683 UR is an enterprise-grade AX6000 Wi-Fi 6 access point designed to deliver fast, reliable wireless connectivity in high-density business environments. Combining Wi-Fi 6 technologies including OFDMA, 4×4 MU-MIMO, HE160, and 1024-QAM with a 2.5 Gigabit Ethernet uplink, it provides high throughput, improved network efficiency, and dependable performance for large numbers of concurrent users and bandwidth-intensive applications.
Integrated with the Omada Software Defined Networking (SDN) platform, the EAP683 UR supports centralised cloud management, zero-touch provisioning, seamless roaming, and Omada Mesh, enabling IT teams to deploy, monitor, and manage wireless networks across single or multiple sites from a unified interface. This streamlined approach reduces operational complexity while ensuring consistent wireless performance and simplified ongoing administration.
Supporting both 802.3at PoE+ and 12 V DC power options, the EAP683 UR offers flexible installation for new deployments and network upgrades. Ideal for offices, educational institutions, hotels, healthcare facilities, and retail environments, it delivers scalable enterprise Wi-Fi with robust security, simplified management, and reliable wireless coverage.

Technical Specifications

Specification Value
Network Interface 1 × 2.5 Gigabit PoE+ Ethernet Port
Button Reset
Power Supply 802.3at PoE+ or 12 V / 2 A DC
(Note: Power Adapter Not Included)
Maximum Power Consumption EU: 20.43 W / US: 23.69 W

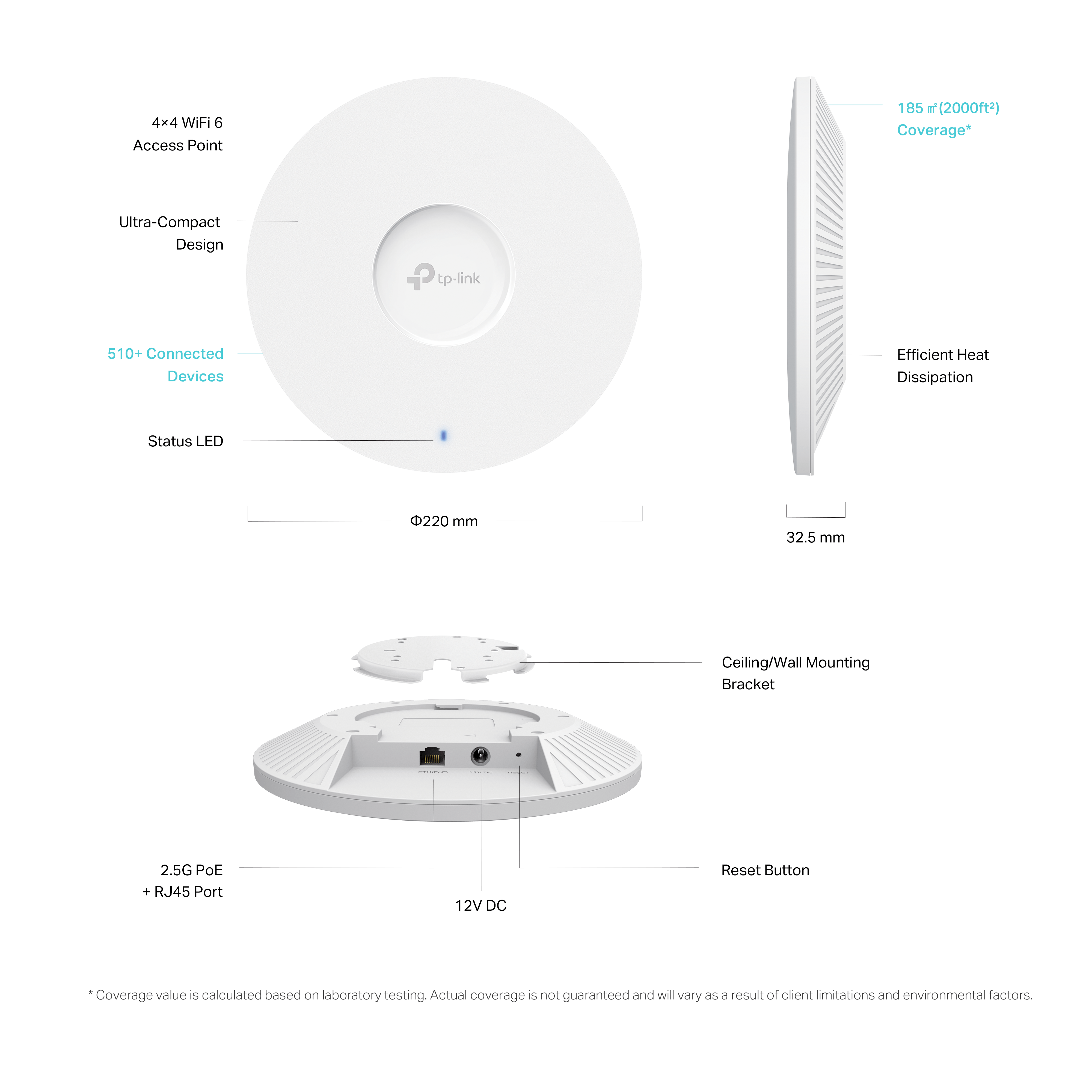

Dimensions 220 × 220 × 32.5 mm (8.7 × 8.7 × 1.3 in)
Antenna Type Internal Omnidirectional Antennas
2.4 GHz Antenna Gain 4 × 4 dBi
5 GHz Antenna Gain 4 × 5 dBi
Bluetooth Yes
Mounting Ceiling / Wall Mount (Mounting Kits Included)
Coverage Area Up to 185 m² (2,000 ft²)
Concurrent Client Capacity 510+ Clients
Wireless Standards IEEE 802.11ax/ac/n/g/b/a
Frequency Bands 2.4 GHz and 5 GHz
Maximum Wireless Throughput 5 GHz: Up to 4804 Mbps, 2.4 GHz: Up to 1148 Mbps
Wi-Fi Technologies 1024-QAM, OFDMA, MU-MIMO, HE160 (160 MHz), Beamforming, Band Steering, Airtime Fairness, Load Balancing, Omada Mesh, Seamless Roaming, QoS (WMM)
Wireless Security WPA/WPA2/WPA3 Personal & Enterprise, 802.1X, Captive Portal, Wireless Client Isolation, MAC Address Filtering, SSID-to-VLAN Mapping, Rogue AP Detection
CE Transmit Power <20 dBm (2.4 GHz), <23 dBm (5 GHz Bands 1 & 2), <28 dBm (5 GHz Band 3)
FCC Transmit Power <26 dBm (2.4 GHz), <26 dBm (5 GHz)
Management Platform Omada SDN, Omada App, Cloud Management, OC200/OC300, Software Controller, Cloud-Based Controller
Management Features Zero-Touch Provisioning, SNMP v1/v2c/v3, SSH, HTTP/HTTPS, Syslog, Multi-site Management, Email Alerts, LED Control, Management VLAN
Certifications CE, FCC, RoHS
Operating Temperature 0°C to 40°C (32°F to 104°F)
Operating Humidity 10%–90% RH (Non-condensing)
EAP683 UR
