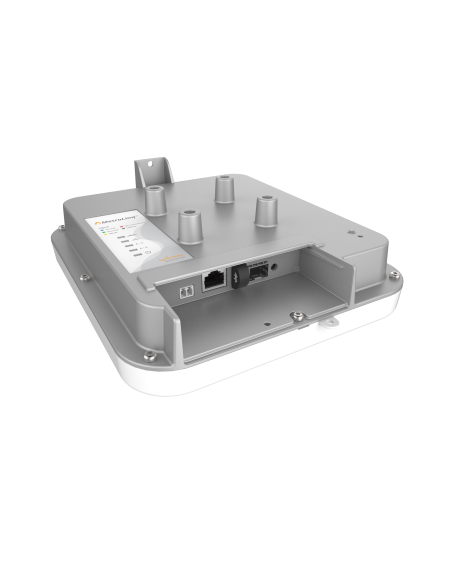

ML2.5-60-BF-18 IgniteNet MetroLinq 2.5G 60 Base Station Sector

ML2.5-60-BF-18 - ML2.5-60-BF-18 IgniteNet MetroLinq 2.5G 60 Base Station Sector

Key Features:

• Antenna: 18 dBi (60GHz), 15dBi (5GHz), 120° Sector

• Advanced 60GHz beam forming for easy alignment

• Base Station mode and up to 32 endpoints (8 endpoints at launch)

• 2.5Gbps Aggregate throughput, dynamically allocated (60GHz)

• 600Mbps Aggregate throughput, dynamically allocated (5GHz)

• Jumbo packet support (up to 7900bytes)

• Management VLAN support and VLAN pass-through

• Supports Service Provider and Enterprise type networks

• Stand-alone or Cloud-controlled operating modes

• PTP/Client modes with Flexible Bridging (60GHz)

• Link failover/backup (60GHz + 5GHz PTP Mode)

• 128bit AES Encryption (standard, 5GHz and 60GHz)

• SNMP Monitoring with Private MIB

• Range: up to 700m (BF to ML2.5-60-35 or 400m to 19dbi version of ML2.5-60-19)

• Operating Temperature: -40Cº to +70Cº

RF Performance (TX):

• 60GHz: 14dBm @ 1+ Gbps

• 5GHz: 27dBm @ 6Mbps, 23dBm @ 866Mbps

RF Performance (RX):

• 60GHz: -74dBm @MCS1; -60dBm @ MCS9

• 5GHz: -94dBm @MCS0; -72dBm @ MCS15

Hardware Features:

• (1) 2.5 Gigabit Ethernet Port (PoE IN 24-48v)

• (1) SFP Port

• (1) Screw Terminal Block (DC Power IN 24-48v)

• (1) USB 3.0 Port

• Dual flash image support
