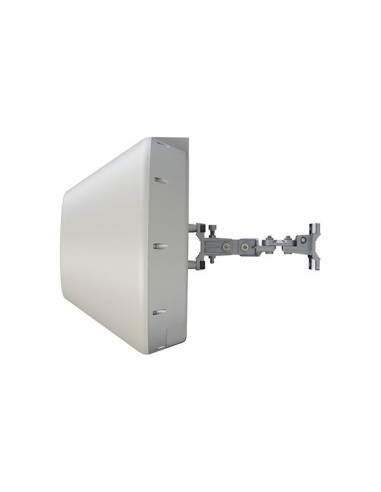

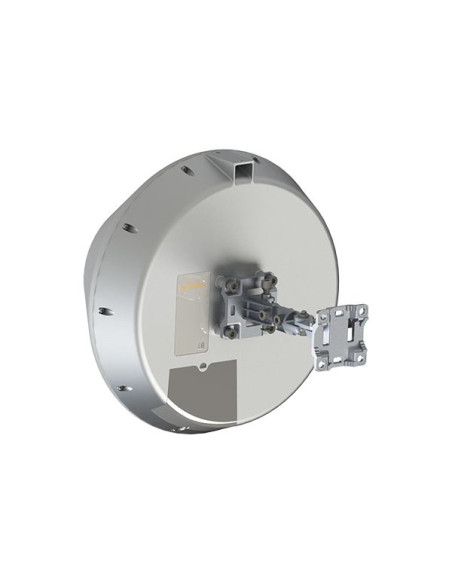

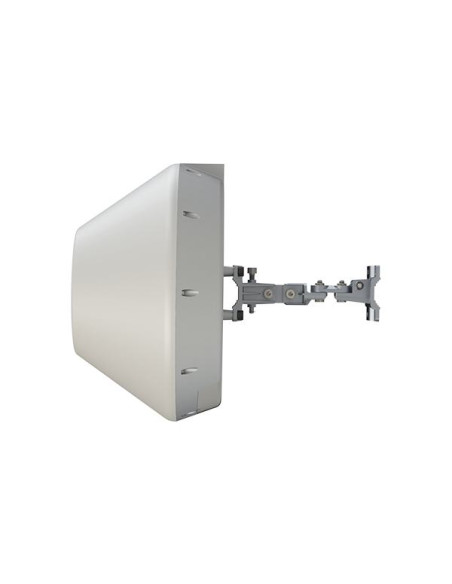

ML-60-35 IgniteNet MetroLinq 60GHz PtP Radio

ML-60-35 - ML-60-35 IgniteNet MetroLinq 60GHz PtP Radio

60 GHz wireless is ideal for fiber-like wireless deployments and is great alternative to fiber in terms of speed and cost. MetroLinq products operating in point-to-point and point-to-multipoint scenarios make it easy to connect new customers to existing fiber or wireless networks. Multi-gigabit connectivity over wireless is now possible and extremely affordable - enabling Internet service delivery for residential and business customers in both urban and suburban areas.

Applications:

• Fixed Wireless Access (broadband)
• 3G/4G Backhaul
• Metro WiFi
• Campus Interconnection
• Hybrid Fiber/Wireless Networks

Key Features:

• Supports Service Provider and Enterprise type networks
• Stand-alone or Cloud-controlled operating modes
• PTP/Client modes with Flexible Bridging and Routing (60GHz)
• AP/Client/PTP modes with Flexible Bridging and Routing (5GHz)
• 802.11a/b/g/n/ac, 2x2, Dual Band Dual Concurrent (5GHz)
• Supports up to 8 SSIDs (5GHz)
• IEEE802.e Wi-Fi MulEmedia (WMM-QoS)
• WEP (64/128-bit), WPA,WPA2-PSK,WPA2-AES, PSK and Enterprise
• Admission control by client MAC address
• Link failover/backup (60GHz + 5GHz PTP Mode)

Technical Specifications:

• 2x Gigabit Ethernet Port (PoE IN)
• 1x Power tap (Power OUT)
• 1x USB 2.0 Port (optional)
• Dual flash image support
• LEDs: Power, Ethernet, Wireless, Health/Status, Aiming
• Dimensions: 350 x 350 x 200mm
• 24V/1A passive Gigabit PoE
• 15W max power consumption
• Operating Temperature: -40C to +70C
• OperaEng Humidity: 10 to 90% non-condensing (RH)
• Range: Up to 1.5km (ML-60-35, location dependent)
• RF Performance (TX): 60GHz - 12dBm @ 2.5Gbps, 5GHz - 28dBm @ 6Mbps, 24dBm @ 866Mbps
• RF Performance (RX): TBD

Please find the PDF with the zones and transmition details for the 60GHz solution.
