MikroTik RBLtAP-2HnD RouterBOARD LtAP with mPCIe slot

MikroTik RBLtAP-2HnD RouterBOARD LtAP with mPCIe slot

Name: MikroTik RBLtAP-2HnD RouterBOARD LtAP with mPCIe slot
Brand: MikroTik
SKU: RBLtAP-2HnD
Price: 374.06 AUD
Availability: BackOrder

Reference RBLtAP-2HnD

*** Out of stock ATM, Available On Backorder ***

$374.06

Tax included

RBLtAP-2HnD

A heavy-duty 2.4GHz access point with two miniPCI-e slots, three SIM slots and GNSS support (GPS, GLONASS, BeiDou, Galileo)

Antenna

	MikroTik ACGPSA, Active GPS Antenna for LtAP series products $15.40
	MikroTik mANT LTE 5o 5dBi Omni Antenna $33.66

4G LTE Card

	Quectel EC25-AU 4G LTE Cat 4 mPCIe Module $108.90
	Quectel EP06-E LTE-A Cat 6 mPCIe Module 4G IoT M2M-optimized $128.70

RP-SMA Cables

MikroTik Super Low Loss RP-SMA Cable 50cm

$15.40

UFL Connectors

RP-SMA to UFL Bulkhead Pigtail 13cm

$10.95

Mount Options

MikroTik DRP-LTM - DINrail PRO mounting bracket for LtAP mini series

$13.86

Quantity	Unit price	You Save
5	$335.53	$192.64
10	$325.43	$486.27
15	$319.82	$813.57
20	$317.95	$1,122.17

RBLtAP-2HnD - MikroTik RouterBOARD LtAP with mPCIe slot

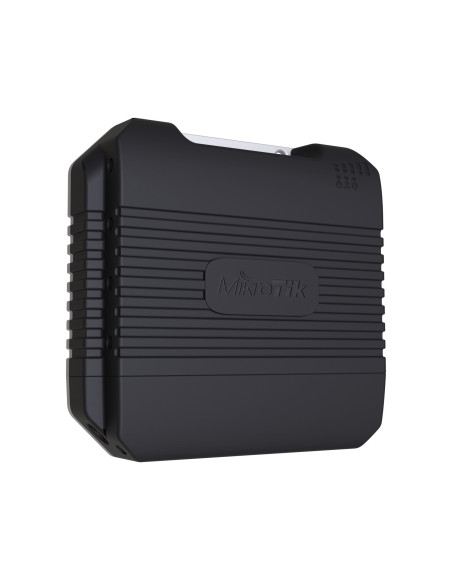

The new LtAP is a compact weatherproof wireless access point – perfect for busy urban environment or off-the-grid outdoors networking. It has high power 2.4 GHz 802.11b/g/n wireless and Gigabit Ethernet LAN port for your wired devices. There are several power options – DC jack, POE-in and automotive.

The unit comes with a two miniPCIe slots, offering many expansion options. For example, you can install LTE modem of your choice for LTE backup and 5GHz interface to have dual concurrent 2.4 GHz / 5GHz AP + LTE.

LtAP has a RS232 serial port, which gives you console access for debugging, as well as full size USB for other devices.

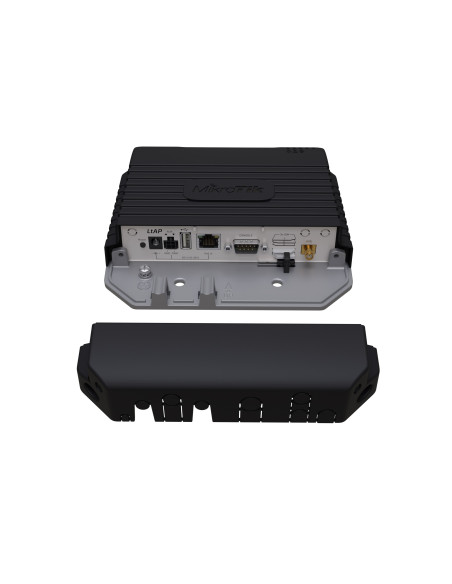

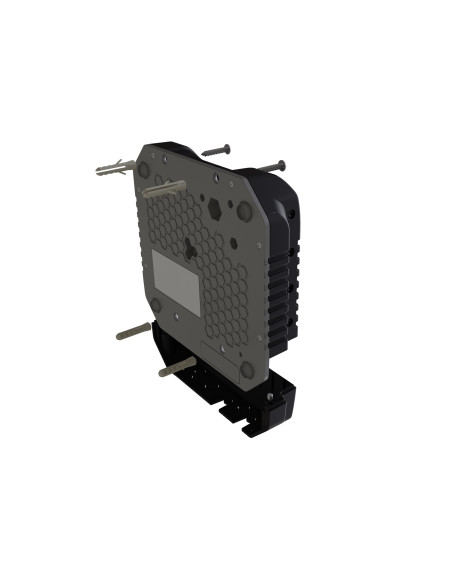

The rugged and extremely durable case with a special wall mounting kit will be perfect for almost any challenge: from public transportation, food trucks or logistics to harsh winter and stormy desert environment. LtAP can handle any temperature from -40 C‎° to +70 C‎°. It is a perfect solution for tracking vehicles in real time. We have provided a simple tracking application example in the RouterOS documentation to help you get started. LtAP even has 3 Mini-SIM slots for easy roaming management. Saves your time and money worldwide!

The new LtAP is more than an access point – it is what you need it to be wherever you need it to be.

Specifications

Details
Product code	RBLtAP-2HnD
Architecture	MMIPS
CPU	MT7621A
CPU core count	2
CPU nominal frequency	880 MHz
CPU Threads count	4
RouterOS license	4
Operating System	RouterOS
Size of RAM	128 MB
Storage size	16 MB
Storage type	FLASH
MTBF	Approximately 200'000 hours at 25C
Tested ambient temperature	-40°C to 70°C
IPsec hardware acceleration	Yes

Powering

Details
Number of DC inputs	3 (PoE-IN, Automotive, DC jack)
DC jack input Voltage	12-30 V
Automotive input Voltage	12-27 V
Max power consumption	24 W
Max power consumption without attachments	9 W
Cooling type	Passive
PoE in	Passive PoE
PoE in input Voltage	12-30 V

Wireless specifications

Details
Wireless 2.4 GHz Max data rate	300 Mbit/s
Wireless 2.4 GHz number of chains	2
Wireless 2.4 GHz standards	802.11b/g/n
Antenna gain dBi for 2.4 GHz	2.5
Wireless 2.4 GHz chip model	AR9382
Wireless 2.4 GHz generation	Wi-Fi 4

Ethernet

Details
10/100/1000 Ethernet ports	1

Peripherals

Details
Number of SIM slots	3 Modem (Mini SIM)
MiniPCI-e slots	2
Serial console port	RS232
Number of USB ports	1
USB Power Reset	Yes
USB slot type	USB type A
Max USB current (A)	1

Other

Details
PCB temperature monitor	Yes
Voltage Monitor	Yes
GNSS standards	GPS

Certification & Approvals

Details
Certification	CE, FCC, IC, E-MARK, EAC, ROHS
IP	IP54

Wireless specifications

2.4 GHz	Transmit (dBm)	Receive Sensitivity
1MBit/s	25	-100
11MBit/s	25	-94
6MBit/s	26	-96
54MBit/s	23	-78
MCS0	26	-96
MCS7	22	-73

Device Type: Router
Device Features: Outdoor
PoE Powered
Wireless System: LTE Mobile
Ethernet Ports: 1 Port 10/100/1000
USB slot: USB type A
Serial console port: RS232
PoE in: Passive

EAN13 4752224004116

MPN RBLtAP-2HnD
