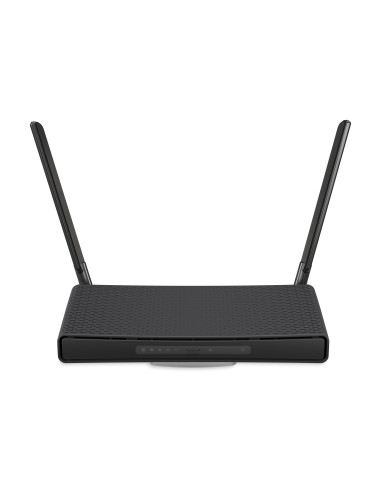

MikroTik hAP ax³ Quad-Core ARM CPU 802.11AX + Wave2 Dual Band Dual Chain Gigabit PoE WiFi Gen 6 Access Point

C53UiG+5HPaxD2HPaxD
Available Early January
$257.40
Tax included

C53UiG+5HPaxD2HPaxD

Top-of-the-line AX home access point

With all the processing power and speed your household might ever need.

Ultimate power for your whole home
Depending on your overall setup, our AX product family offers up to 40% higher speed in the 5 GHz and up to 90% higher speed in the 2.4 GHz spectrum! Potent external antennas allow reaching gain up to 5.5 dBi, so you can forget about Wi-Fi Boosters and other tricks. Smooth and fast connectivity for your whole apartment – that’s just how hAP ax³ works. AX wireless – as strong as an ox Home network speeds are getting serious. There are 4x Gigabit Ethernet ports and an ultra-fast 2.5 Gigabit port. hAP ax³ is our most powerful AX device with the best wireless network coverage so far. It features a modern quad-core ARM CPU running at 1.8 GHz and enough memory (1GB RAM + 128 MB NAND) for most tasks. Complex firewall rules, IPsec hardware encryption, Wireguard, BGP, advanced routing, or multiple remote work VPN tunnels won’t stop your family from comfortable browsing, streaming, gaming, and so on. There’s enough processing power for everyone. And we’ve added a speedy USB 3 port for all your storage purposes or an additional LTE modem.

Quantity Unit price You Save
5 $238.61 $93.95


C53UiG+5HPaxD2HPaxD - MikroTik hAP ax³ Quad-Core ARM CPU 802.11AX + Wave2 Dual Band Dual Chain Gigabit PoE WiFi Gen 6 Access Point

AX wireless – as strong as an ox
Depending on your overall setup, our AX product family offers up to 40% higher speed in the 5 GHz and up to 90% higher speed in the 2.4 GHz spectrum! Potent external antennas allow reaching gain up to 5.5 dBi, so you can forget about Wi-Fi Boosters and other tricks. Smooth and fast connectivity for your whole apartment – that’s just how hAP ax³ works.

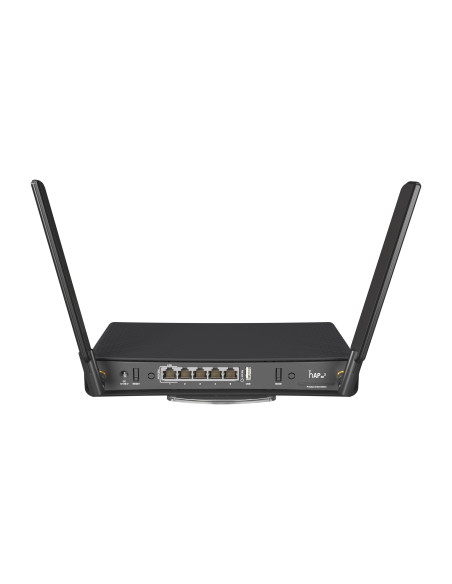

Home network speeds are getting serious. There are 4x Gigabit Ethernet ports and an ultra-fast 2.5 Gigabit port.



Safer in many ways
hAP ax³ can ease your mind on multiple levels simultaneously. European-based production, our famous Northern work ethic, and cooperation with the EU lawmakers ensure full compliance with all the necessary safety policies. Multiple power options (DC Jack & PoE-in) result in fewer worries about potential downtime. The latest RouterOS v7 updates and the addition of WPA3 advanced encryption support bring unprecedented software security.
To sum things up - hAP ax³ is among the fastest, safest, and most powerful choices in the home access point world. Wired or wireless. And it comes with the most advanced networking software on the market – RouterOS. Unlike many other vendors, we don’t limit what you can do. There are no paywalls or confusing subscriptions. All our devices share the same limitless operating system. Imagination is the only limitation.

Some might ask – why do we even need higher wireless speeds? Well, countless use cases have been previously
impossible or difficult to pull off. For example, working with large media files over the wireless network –
without the need to download and upload everything. Do you really have the time to wait? Grab a hAP ax³ and save more time for the essential things in life!

Product Features:

Specifications
Product Code C53UiG+5HPaxD2HPaxD
CPU Quad-Core IPQ-6010 1.8 GHz
CPU architecture ARM 64bit
Size of RAM 1 GB
Storage 128 MB, NAND
Number of 1G Ethernet ports 4
Number of 2.5G Ethernet ports 1 (supports PoE-in/out)
USB 1 USB 3 type A
Switch chip model IPQ-6010
Wireless interface model QCN-5022 (2.4 GHz), QCN-5052 (5 GHz)
Wireless 2.4 GHz 802.11b/g/n/ax dual-chain, 5 GHz 802.11a/n/ac/ax dual-chain
Wireless antenna max gain 2.4 GHz (3.3 dBi), 5 GHz (5.5 dBi)
Dimensions 251 x 130 x 39 mm
Operating system RouterOS, License level 6
Operating temperature -40°C to +70°C
Powering
Number of DC inputs 2 (PoE-in, DC jack)
PoE-in input Voltage 18-28 V
DC jack input Voltage 12-28 V
PoE-out Passive PoE Ether1, max out per port output (input < 30 V): 0.625 A
PoE-out total output power 15 W
Power adapter nominal voltage 24 V
Power adapter nominal current 1.5 A
Max power consumption (without attachments) 15 W
Max power consumption 38 W

Wireless specifications
Rate (2.4 GHz) Tx (dBm) Rx (dBm)
1MBit/s 27 -100
11MBit/s 27 -94
6MBit/s 29 -96
54MBit/s 27 -80
MCS0 29 -96
MCS7 26 -75
MCS9 24 -70
MCS11 22 -67
Rate (5 GHz) Tx (dBm) Rx (dBm)
6MBit/s 28 -96
54MBit/s 26 -80
MCS0 28 -96
MCS7 25 -75
MCS9 23 -70
MCS11 20 -67
Antenna Gain (dBi)
3.3, 5.5
Device Type
Access Point
POE Ports
1
Wireless System
2.4GHz, 5GHz
Ethernet Ports
5
