mFi THS Temperature Sensor

mFi Temperature Sensor

Ubiquiti offers a variety of sensors to connect to the mPort and your mFi network. These sensors connect to the mPort using a standard RJ45 cable, except for the mFi-DS, which connects using a terminal block connector.

• mFi-MSW - Wall Mount Motion Sensor
• mFi-MSC - Ceiling Mount Motion Sensor
• mFi-THS - Temperature Sensor
• mFi-CS - Current Sensor
• mFi-DS - Door Sensor

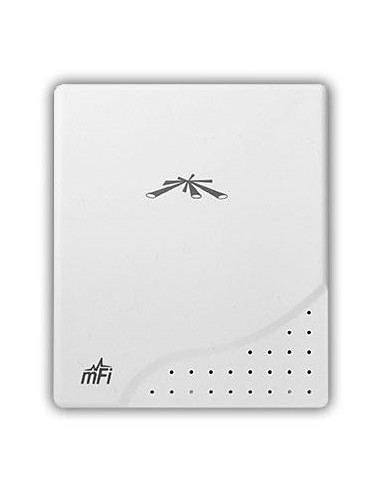

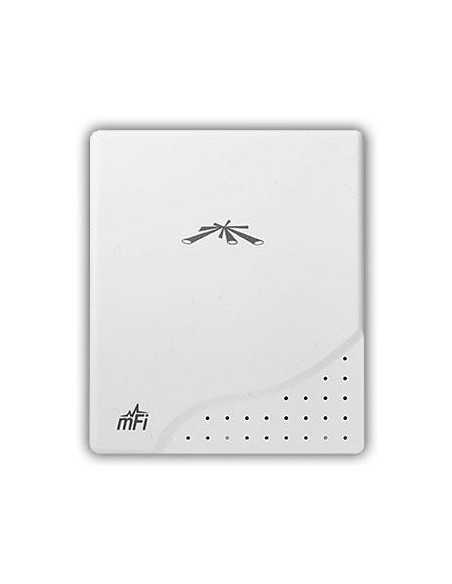

Temperature Sensor (mFi-THS) is a wall-mountable sensor.
It is designed for HVAC monitoring, climate data acquisition, and other smart building applications.

The mFi Temperature Sensor is designed for use with the mFi mPort. Once they are connected, you can use the mFi Controller software (included with the mFi mPort) to monitor your machines using your Web browser.

Specifications:

Dimensions: 100 x 85 x 27.8mm
Weight: 80g
Temperature Range: -10 to 50° C
Accuracy at +25°C, 50% RH: ±0.5° C
Temperature Accuracy from -10 to 50° C: Max. ±1.3° C
Response Time: <15 Seconds
Ports: (1) mFiRJ45 Port
Operating Temperature: -20 to 60° C
Operating Humidity: 0 to 95° Condensing
