AOA-M4G marine grade omnidirectional 4G antenna

Marine Grade 4G/5G Omni Antenna

AOA-M4G
In Stock
$90.00
Tax included

Description

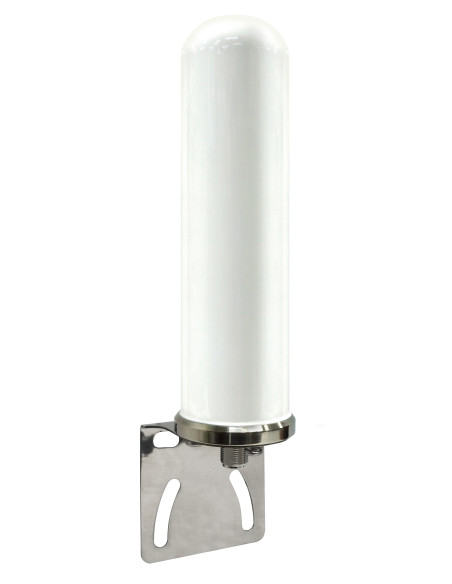

The ALFA 4G Omni Antenna is a versatile wideband antenna for use in a marine and all extreme outdoor environments.The Omni Antenna will operate from 600MHz up to 4.5GHz, making it an ideal Marine and Outdoor Antenna for any Network Operator across Australia and New Zealand. The antenna is also ideally suited for WiFi (2.4GHz) outdoor applications. With the antenna gain gradually increasing from 4-6 dBi gain across the frequency band, this antenna will provide the perfect solution for voice and data applications where premium grade and reliable 4G/5G omni antennas are required.



Mechanical Specifications

Input Connector – N Female

Radome Material – White fibreglass + bottom stainless steel (no aluminium)

Mounting – Pole / Mast Mount

Dimensions – 25 cm high

Weight 1.2kg

Rated Wind Velocity – 210 km/h

Operating Temperature -40 to +65 deg C

Network Compatibility

Network Frequency Coverage Gain
Telstra 4GX 700 MHz Yes 4 dBi
Telstra Next ? G 850 MHz Yes 4 dBi
Telstra 4G 1800 MHz Yes 6 dBi
Telstra 3G (Metro) 2100 MHz Yes 6 dBi
Telstra 4G (Metro) 2600 MHz Yes 6 dBi
Optus 4G+ ?700 MHz Yes 4dBi
Optus 3G 900 MHz Yes 6 dBi
Optus 4G 1800 MHz Yes 6 dBi
Optus 3G Metro 2100 MHz Yes 6dBi
Optus 4G TDD 2300 MHz Yes 6dBi
Optus 4G Metro 2600 MHz Yes 6dBi
Vodafone 4G+ 850 MHz Yes 4 dBi
Vodafone 3G 900 MHz Yes 4 dBi
Vodafone 4G 1800 MHz Yes 4 dBi
Vodafone 3G (Metro) 2100 MHz Yes 6 dBi
Future 5G in Australia 3500 MHz Yes 6dBi
