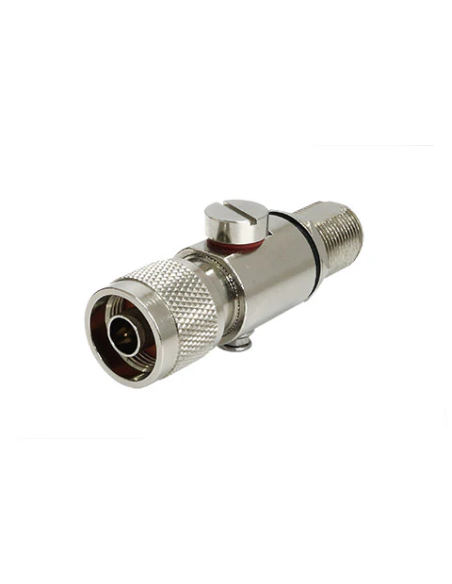

ALR06 Nickel-Plated Brass Lightning Protector
ALR06 Nickel-Plated Professional 0-6GHz RF Coaxial Lightning/Surge Protector
ALR06 Nickel-Plated Brass Lightning Protector
ALR06 Nickel-Plated Professional 0-6GHz RF Coaxial Lightning/Surge Protector

ALR06 Nickel-Plated Professional 0-6GHz RF Coaxial Lightning/Surge Protector

ALR06
Last items in stock
$40.05
Tax included

ALR06

The ALR06 is a Lightning Protector that has the lowest price with the highest quality and extreme value in the industry. The protector provides protection from 0 to 6 GHz with N-Female to N-Male connector. It's a high-quality body material is a 100% nickel-plated brass (unlike common aluminum body devices in the market). It protects with 90V DC breakdown voltage which is more than sufficient for wireless installations.

Quantity Unit price You Save
4 $38.85 $4.81


ALR06 -  ALR06 Nickel-Plated Brass Lightning Protector


Specification
Model ALR06
Frequency Range 1 ~ 6GHz
VSWR <1.5
Insertion Loss 0.2dB
Impedance 50Ω
Insulation 10,000M Ω
Max With Standing  Current @ 8 / 20uS 10 KA @ 8 / 20uS
DC Breakdown  Voltage @ 100V / S 90V DC @ 100V / S
Power 50W
Electrode Capacitance ≦ 1.5pF
Weight 110g
Dimension 63x40x25 mm
Connector N female to N male


Device Type
Surge Arrester
4718050301768
ALR06
