MikroTik RouterBOARD mAP lite 2x2 2.4GHz mini WiFi Access Point

RBmAPL-2nD
*** Out of stock ATM, Available On Backorder ***
$53.16
Tax included

RBmAPL-2nD

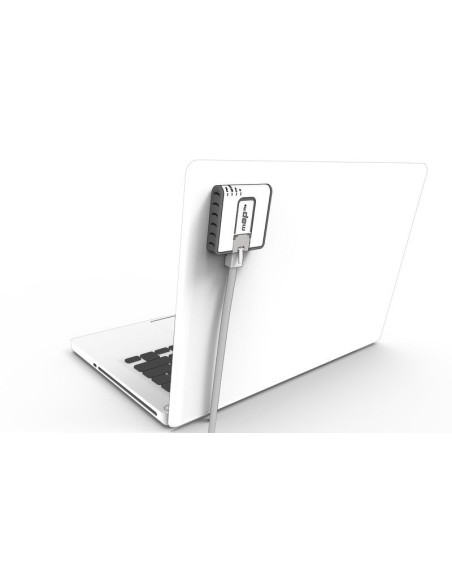

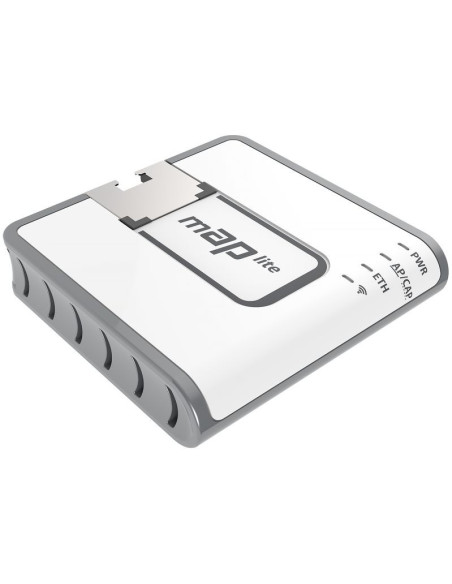

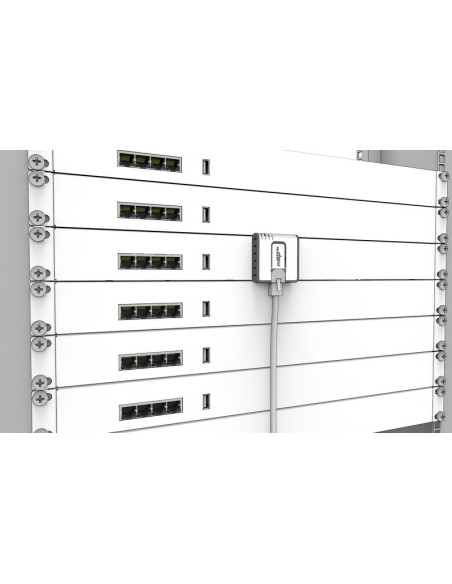

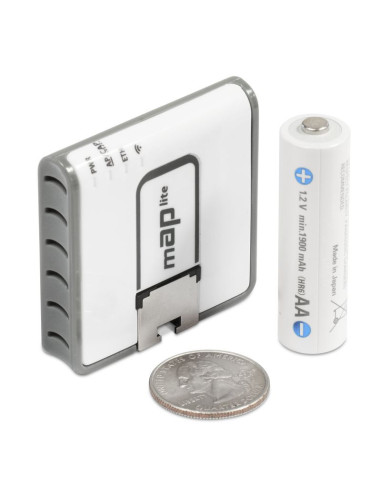

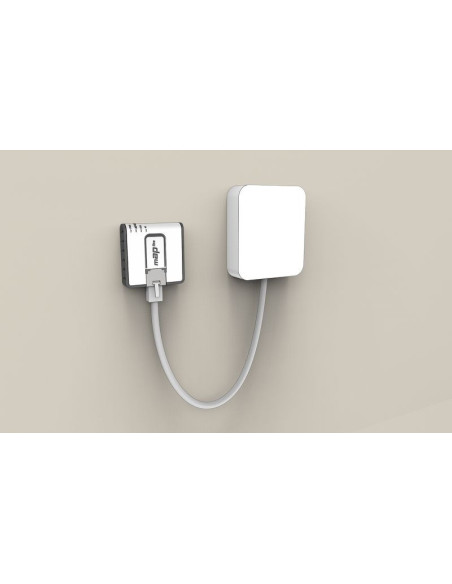

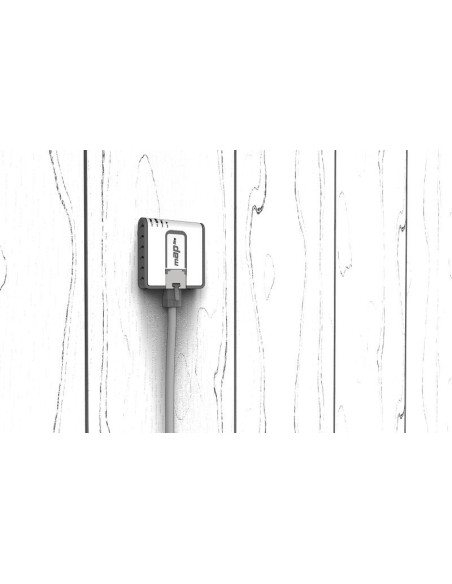

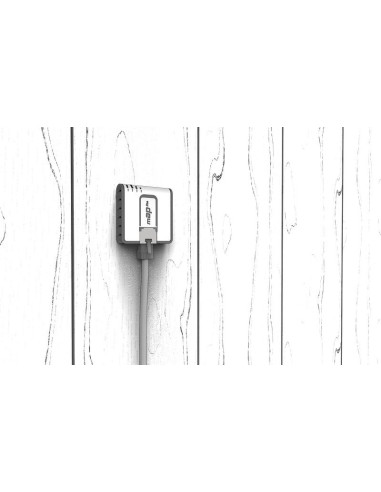

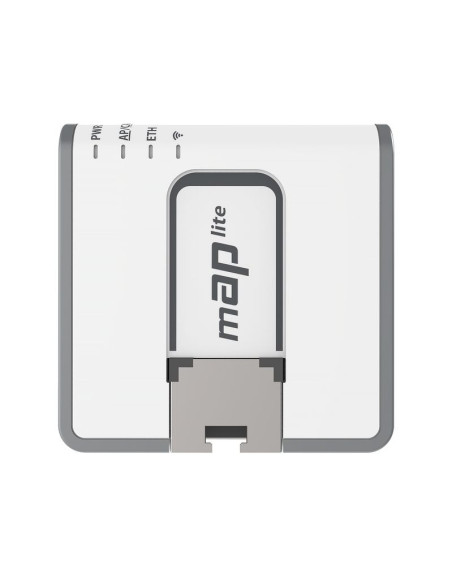

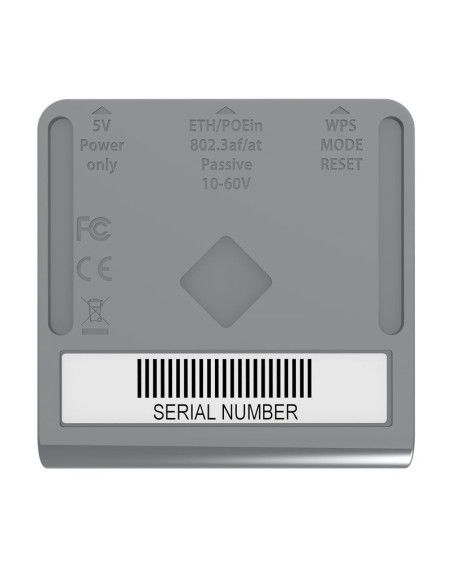

The mAP lite is the smallest wireless access point offered by MikroTik, operating on dual chain 802.11b/g/n 2.4GHz wireless and powered by PoE or micro USB. Its compact housing is barely larger than a matchbox, uses a special Ethernet port to match its slim profile and contains a built-in magnet for simple attachment to any ferrous surface. Alternatively, a metallic plate with an adhesive back is also included. This device may serve as a simple configuration tool for your servers if there is no Ethernet on your mobile device.

mAP lite does not include a power supply or micro USB cable by default. Use the below menu to add these to your order.

Power Supply Options

Quantity Unit price You Save
5 $49.28 $19.40


RBmAPL-2nD - MikroTik RouterBOARD mAP lite 2x2 2.4GHz mini WiFi Access Point


Antenna Gain (dBi)
1
Device Type
Access Point
Device Features
PoE Powered
MIMO
2x2
Wireless System
2.4GHz
Ethernet Ports
1
No reviews

Specifications

Details
Product code RBmAPL-2nD
Architecture MIPSBE
CPU QCA9533
CPU core count 1
CPU nominal frequency 650 MHz
Dimensions 48x49x11mm
License level 4
Operating System RouterOS
Size of RAM 64 MB
Storage size 16 MB
Storage type FLASH
Tested ambient temperature -30°C to 70°C

Powering

Details
MicroUSB input Voltage 5-5 V
PoE in 802.3af/at
PoE in input Voltage 10-60 V
Number of DC inputs 2 (PoE-IN, MicroUSB)
Max power consumption 3.5 W

Wireless

Details
Wireless 2.4 GHz Max data rate 300 Mbit/s
Wireless 2.4 GHz number of chains 2
Wireless 2.4 GHz standards 802.11b/g/n
Antenna gain dBi for 2.4 GHz 1.5
Wireless 2.4 GHz chip model QCA9533
Wireless 2.4 GHz generation Wi-Fi 4

Ethernet

Details
10/100 Ethernet ports 1

Certification & Approvals

Details
Certification CE/RED, FCC, IC, EAC, ROHS

Wireless specifications

2.4 GHzTransmit (dBm)Receive Sensitivity
1MBit/s 22 -96
11MBit/s 22 -89
6MBit/s 20 -93
54MBit/s 18 -74
MCS0 20 -93
MCS7 16 -71
