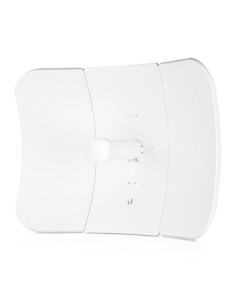

Ubiquiti airMAX LiteBeam ac 5GHz 23dBi 2x2 CPE w/ 2.4GHz Management

LBE-5AC-GEN2 LiteBeam AC GEN2 airMAX ac CPE with Dedicated Management Radio

Ubiquiti Networks launches the latest generation of airMAX® CPE (Customer Premises Equipment), the LiteBeam® 5AC Gen 2, with dedicated Wi-Fi management.

Features:

Improved Noise Immunity

The LiteBeam 5AC Gen 2 directs RF energy in a tighter beamwidth. With the focus in one direction, the LiteBeam 5AC Gen 2 blocks or spatially filters out noise, so noise immunity is improved. This feature is especially important in an area crowded with other RF signals of the same or similar frequency.

Integrated Design

Ubiquiti’s InnerFeed® technology integrates the radio into the feedhorn of an antenna, so there is no need for a cable. This improves performance because it eliminates cable losses. Featuring high performance and innovative mechanical design, the LiteBeam 5AC Gen 2 is versatile and cost-effective to deploy.

Full Adjustment Flexibility

The LiteBeam 5AC features a two-mount system that provides adjustment flexibility along both axes for versatile mounting options. The mounting system, coupled with the built-in bubble level, enables quick and easy alignment.

Improved Mounting and Surge Protection

Featuring enhanced protection against power surges, the LiteBeam 5AC Gen 2 offers a more robust mount with separate azimuth and elevation adjustments.

Applications:

• LiteBeam as a cost-effective WISP deployment in an airMAX ac Point‑to‑MultiPoint network.
• A LiteBeam on each side of a Point-to-Point link to create a reliable wireless bridge.
• LiteBeam as a powerful wireless client.

LBE-5AC-GEN2 Specifications:

• Processor Specs: MIPS 74Kc
• Memory: 64MB DDR2
• Network Interface: 1 x 10/100/1000 Ethernet Port
• Operating Frequency: Worldwide: 5150 - 5875MHz
• Antenna Gain: 23dBi
• Maximum Power Output: 25dBm
• Maximum Power Consumption: 7W
• Power Supply: 24V, 0.3A Gigabit PoE Adapter
• Power Method: Passive PoE (Pairs 4, 5+; 7, 8 Return)
• Operating Temperature: -40 to 70deg C
• Operating Humidity: 5 to 95% noncondensing
• Wind Survivability: 125mph (200km/h)

Dimensions:

• 358 x 271.95 x 272.5 mm (14.09 x 10.71 x 10.73")

Weight:

• With mount 800 g (1.76 lb)
• Without mount 980 g (2.16 lb)
