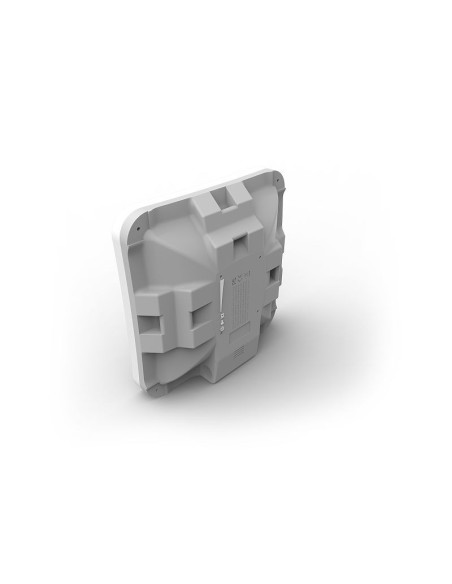

MikroTik SXTsqG ac Dual Chain 5GHz 16dBi Integrated CPE/Backbone
RBSXTsqG-5acD
The SXTsq 5 ac Outdoor CPE from MikroTik is a compact and lightweight outdoor 5Ghz 802.11ac wireless device with an integrated antenna, perfect for point-to-point links or for use as a CPE unit. The device includes 1 10/100/1000 Mbit Ethernet port to fully utilize speeds that 802.11ac protocol provides. This unit retains a 16 dBi antenna like the SXT 5 ac, the previous model, but the antenna design has been improved and the physical size has been dramatically reduced - two times thinner.
This international version supports 5150MHz - 5875MHz range, but specific frequency range can be limited by country regulations.
Mount Options
RBSXTsqG-5acD - MikroTik SXTsqG ac Dual Chain 5GHz 16dBi Integrated CPE/Backbone
Technical Specifications:
-
Product code: RBSXTsqG-5acD
-
Architecture: ARM 32bit
-
CPU: IPQ-4018-0-180DRQFN-TR-00-0
-
CPU: core count 4
-
CPU: nominal frequency 716 MHz
-
Dimensions: 129 x 129 x 34 mm
-
License level: 3
-
Operating System: RouterOS
-
Size of RAM: 256 MB
-
Storage size: 16 MB
-
Storage type: FLASH
-
Tested ambient temperature: -40 to 70° C
Power:
-
Max Power consumption: 7W
-
PoE in: Passive PoE
-
PoE in: input Voltage 10-30 V
-
Number of DC inputs: 1 (PoE-IN)
Wireless:
-
Wireless 5 GHz number of chains: 2
-
Wireless 5 GHz standards: 802.11ac
-
Antenna gain dBi for 5 GHz: 16
-
Wireless 5 GHz chip model: IPQ-4018-0-180DRQFN-TR-00-0
Ethernet:
-
10/100/1000 Ethernet ports: 1
Wireless specifications
5 GHz
|
Transmit (dBm)
|
Receive Sensitivity
|
6MBit/s
|
25
|
-96
|
54MBit/s
|
21
|
-80
|
MCS0
|
25
|
-96
|
MCS7
|
20
|
-75
|
MCS9
|
18
|
-70
|
- Antenna Gain (dBi)
- 16
- Device Type
- Antenna Integrated Radio
- Device Features
- Outdoor
PoE Powered - MIMO
- 2x2
- Wireless System
- 5GHz
- Ethernet Ports
- 1
