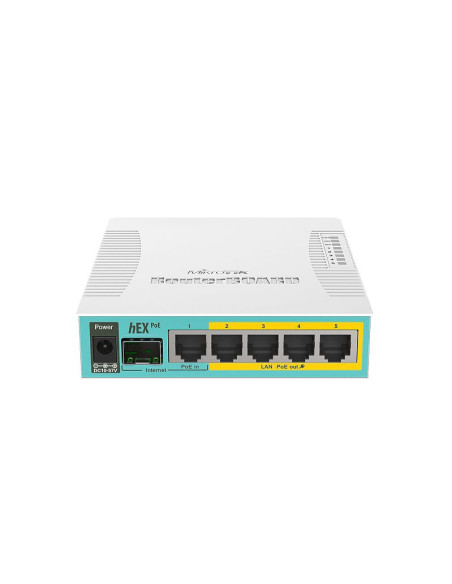

RB960PGS MikroTik RouterBOARD hEX PoE 5-Port RJ45 + 1-Port SFP Gigabit Router

MikroTik RouterBOARD hEX PoE 5-Port RJ45 + 1-Port SFP Gigabit Router

RB960PGS
Available On Backorder
$137.49
Tax included

The RB960PGS hEX PoE from MikroTik is a cost-effective, multi-port Gigabit Ethernet router powered by an 800MHz processor. The hEX PoE features (5) Gigabit Ethernet ports, (1) SFP port, (1) USB 2.0 type A port, and 128MB RAM. This model supports passive power over Ethernet and 802.3af/at power over Ethernet on ports 2-5. The cloud core router is powered by RouterOS, a full-featured routing operating system with features such as dynamic routing, hotspot, firewall, MPLS, VPN, advanced quality of service, load balancing and bonding, real-time configuration, monitoring, and more. This product comes with a Level 4 RouterOS license.

This device supports Passive or 802.3af/at PoE output. Ethernet ports 2-5 can power other PoE capable devices with the same voltage as applied to the unit. hEX PoE comes with a 24V power supply by default. If you need 48V PoE, add the power supply with the menu below.

MikroTik Woobm-USB
  • No thanks
  • Yes please (+$22)
Power Supply Options
  • 24V Power Supply only
  • 24V & 48V Power Supplies (+$48)
  • 48V Power Supply only (+$34)

Quantity Price You Save
5 $129.93 Up to $37.81
9 $123.05 Up to $129.93
16 $118.93 Up to $296.98
20 $116.87 Up to $412.47


RB960PGS Features:

  • Product Code: RB960PGS

  • CPU: QCA9557

  • CPU Nominal Frequency: 800 MHz

  • CPU Core Count: 1

  • Size of RAM: 128 MB

  • 10/100/1000 Ethernet Ports: 5

  • PoE In: 802.3at

  • Supported Input Voltage: 12-57 V

  • Power Output: On ports 2-5, Output 1A max per port; 2A max total

  • PCB Temperature Monitor: Yes

  • Voltage Monitor: Yes

  • Current Monitor: Yes

  • USB Slot: Yes

  • Dimensions: 114 x 137 x 29 mm

  • License Level: 4

  • Operating System: RouterOS

  • Max Power Consumption: 9 W

SFP Ports
1, 1
Device Features
PoE Powered
POE Ports
4, 4
Power Over Ethernet
48V 15W 802.3af, 48V 30W 802.3at
SFP
Yes, 1G SFP
Ethernet Ports
5, 5
