PLANET GSD-908HP 8-Port 10/100/1000T 802.3at PoE + 1-Port Gigabit Desktop Switch

GSD-908HP 8-Port 10/100/1000T 802.3at PoE + 1-Port Gigabit Desktop Switch

Centralized Power Distribution for Ethernet Networking

The GSD-908HP, a new member in the PLANET 802.3af / 802.3at PoE Unmanaged Gigabit Ethernet Switch family, is an 8-port 10/100/1000T 802.3at Power over Ethernet + 1-port 10/100/1000T Desktop Switch with a total of 120 watts of PoE budget, which is an ideal solution to fulfilling the demand of sufficient PoE power for network applications with Gigabit Ethernet speed transmission. The eight 802.3af / 802.3at PoE Gigabit ports provide PoE power injector function which is able to drive 8 IEEE 802.3af compliant powered devices or 4 IEEE 802.3at compliant powered devices. The GSD-908HP also provides a simple, cost-effective and non-blocking Gigabit wire-speed performance. It comes with a metal compact housing, suitable for desktop deployment in SOHO office or department network application.

RJ-45 Interface

Complies with IEEE 802.3, 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T
9-Port 10/100/1000Mbps Gigabit Ethernet Switch
8-Port supports 51V DC power to PoE Powered Device (Port 1 to port 8)Power over Ethernet

Complies with IEEE 802.3af / 802.3at Power over Ethernet End-Span PSE 120-watt PoE budget

POE features of GSD-908HP:

• Up to 8 IEEE 802.3af devices powered
• Supports PoE Power up to 15.4 watts for each PoE port
• Up to 4 IEEE 802.3at devices powered
• Supports PoE Power up to 30 watts for each PoE port
• Auto detects powered device (PD)
• Circuit protection prevents power interference between ports
• Remote power feeding up to 100m

Switching:

• Hardware based 10/100Mbps, half / full duplex and 1000Mbps full duplex mode, flow
• control and auto-negotiation and auto MDI/MDI-X
• Features Store-and-Forward mode with wire-speed filtering and forwarding rates
• IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation
• Integrates address look-up engine, supporting 4K absolute MAC addresses
• 192 KB packet buffer
• 9K Jumbo frame supports at 1000Mbps duplex mode
• Automatic address learning and address ageing
• Supports CSMA/CD protocol

Hardware:

Made of metal, desktop size and wall-mount design

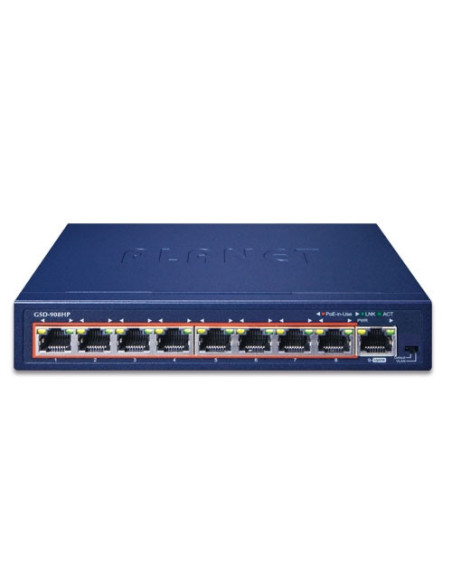

LED indicators for system power, PoE usage 100%, per port PoE In-Use (Port 1 to port 8),
per port Link / Act (10/100/1000Mbps, port 1 to port 9)

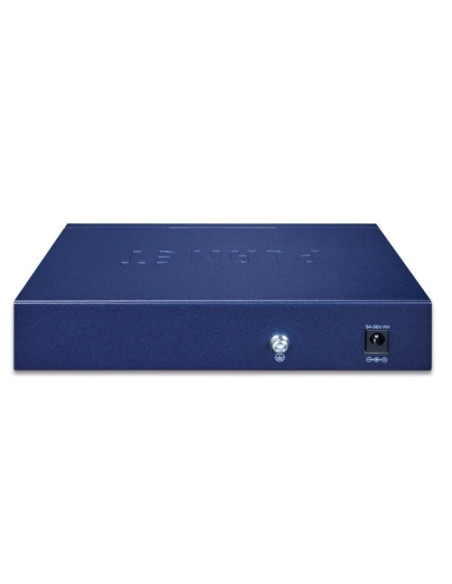

51V DC, 2.5A external power adapter
