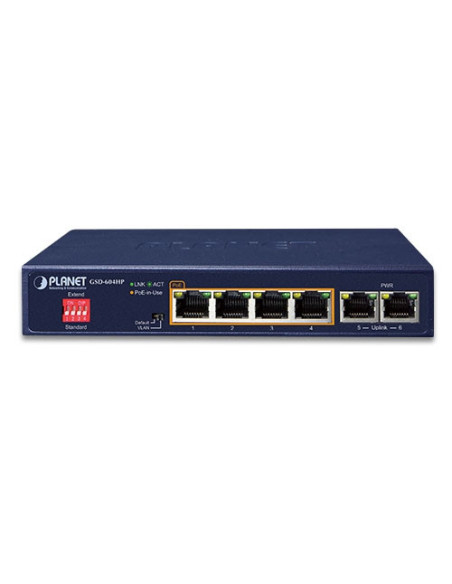

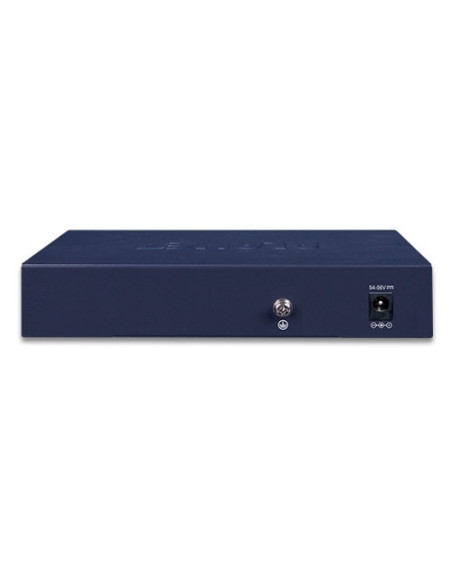

PLANET 4-Port 10/100/1000T 802.3at PoE + 2-Port 10/100/1000T Desktop Switch
GSD-604HP
Last items in stock
$115.50
Tax included
GSD-604HP
The GSD-604HP from PLANET Technology is an unmanaged networking switch with (6) 10/100/1000BASE-T Gigabit Ethernet ports. This device features (4) power over Ethernet 802.3af/at ports for up to 30 watts per port and a total budget of 55 watts.
Ideal applications for GSD-604HP:
IP Camera Surveillance System With (4) power over Ethernet 802.3af/at ports, the GSD-604HP is a perfectly integrated solution for power over Ethernet IP camera and NVR systems.
Office Workgroup PoE Switch The GSD-604HP helps offices to create an integrated data, voice and Ethernet powered network. Power over Ethernet 802.3af/at compliant IP phones can be installed without the need for an additional power cable, forming a cost-effective and reliable enterprise communication infrastructure.
GSD-604HP - PLANET 4-Port 30W 802.3at PoE + 2-Port 10/100/1000T Desktop Gigabit Switch
| Hardware Specifications | |
|---|---|
| Network Connector | 6-port RJ45 for 10/100/1000BASE-T, auto MDI / MDIX |
| PoE Inject Port | 4-port with 802.3af/at PoE injector function (port 1 to port 4) |
| LED Display | System: Power (Green) Per PoE port: PoE (Orange, port 1 to port 4) PoE max. (Orange) Ethernet port: 1000 LNK (Green) 10/100 LNK (Orange) |
| Thermal Fan | Fanless design |
| Switch Architecture | Store and Forward switch architecture |
| MAC Address Table | 8K MAC address table with auto learning function |
| Switch Fabric | 12Gbps |
| Switch Throughput | 8.92Mpps @64 bytes |
| Jumbo Packet | 9216 bytes |
| Flow Control | Back pressure for half-duplex IEEE 802.3x pause frame for full-duplex |
| Power Requirements | 55V DC, 1.1A |
| ESD Protection | 6kV DC |
| Power Consumption | Max. 60 watts, 204.6 BTU |
| Dimensions (W x D x H) | 160 x 92.5 x 28 mm |
| Weight | 374g |
| Power over Ethernet | |
| PoE Standard | IEEE 802.3af Power over Ethernet/PSE IEEE 802.3at Power over Ethernet Plus/PSE |
| PoE Power Supply Type | End-span |
| Power Pin Assignment | 1/2(+), 3/6(-) |
| PoE Power Output | Per port 54V DC, 300mA. max. 15.4 watts (IEEE 802.3af) Per port 54V DC, 600mA. max. 30 watts (IEEE 802.3at) |
| PoE Power Budget | 55 watts |
| Standard Conformance | |
| EMI Safety | FCC Class B, CE |
| Standard Compliance | IEEE 802.3 Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3ab Gigabit Ethernet IEEE 802.3x Flow Control IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus |
| Environment | |
| Operating Environment | 0 ~ 50 degrees C |
| Storage Environment | -10 ~ 70 degrees C |
| Operating Humidity | 5 ~ 95%, relative humidity, non-condensing |
| Storage Humidity | 5 ~ 95%, relative humidity, non-condensing |
- Device Type
- Network Switch
Power Over Ethernet - POE Ports
- 4
- Power Input
- DC
- Ports
- 6 10/100/1000TX
- Type
- Unmanaged
- PoE Standard
- 802.3af/at
- Power Consumption
- 66.69W, 227.5BTU Max.
- Operating Temperature
- 0 to 50°C
- Total PoE Budget
- 65W
