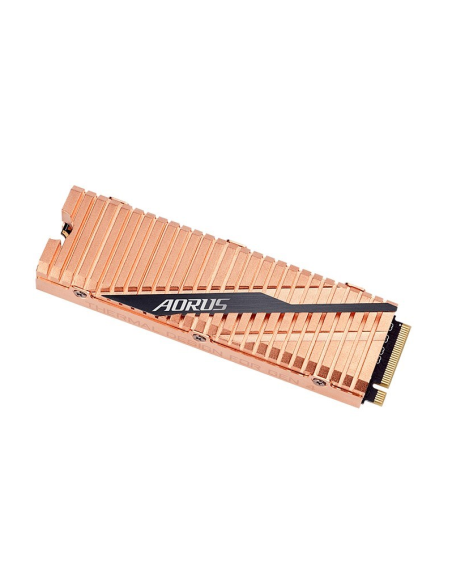

Gigabyte AORUS GP-ASM2NE6500GTTD M.2 Gen4 NVMe SSD 500GB
Gigabyte AORUS
Gigabyte AORUS 500GB M.2 Gen4 NVMe SSD GP-ASM2NE6500GTTD - Reads Up To 5,000MB/s - Writes Up To 2500MB/s - Random Read IOPS: Up TO 400k - Random Write: Up To 550k - Total Storage: 500GB - M.2 2280 Form Factor - Toshiba TLC NAND 3D BiCS4 - Interface: PCI-e 4.0 x4, NVMe 1.3 - MTBF: 1.77 Million Hours - 5 Years Limtied Warranty or 850TBW
Manufacturer Warranty: 5 Years Limited Warranty
GP-ASM2NE6500GTTD - Gigabyte AORUS 500GB M.2 Gen4 NVMe SSD GP-ASM2NE6500GTTD
World First PCIe 4.0x4 Controller
The World First PCIe 4.0x4 Controller, Phison PS5016-E16 controller, made by 28nm manufacturing technology. The advanced fabrication process ensures PS5016-E16 has enough computing power for ECC processing when adopting the latest 3D TLC NAND flash. PS5016-E16 also features eight NAND channels with 32 CE targets, DDR4 DRAM cache, and a PCIe 4.0x4 interface. As for features, the chip supports the NVMe 1.3 protocol, LDPC error correction, and Wear Leveling, Over-Provision technologies to improve reliability and durability of SSDs.
Sequential Read Speed: up to 5000 MB/s |
· Sequential Write speed: up to 2500 MB/s |
· Interface: PCI-Express 4.0 x4, NVMe 1.3 |
· Fully Body Copper Heat Spreader |
· TRIM & S.M.A.R.T supported |
