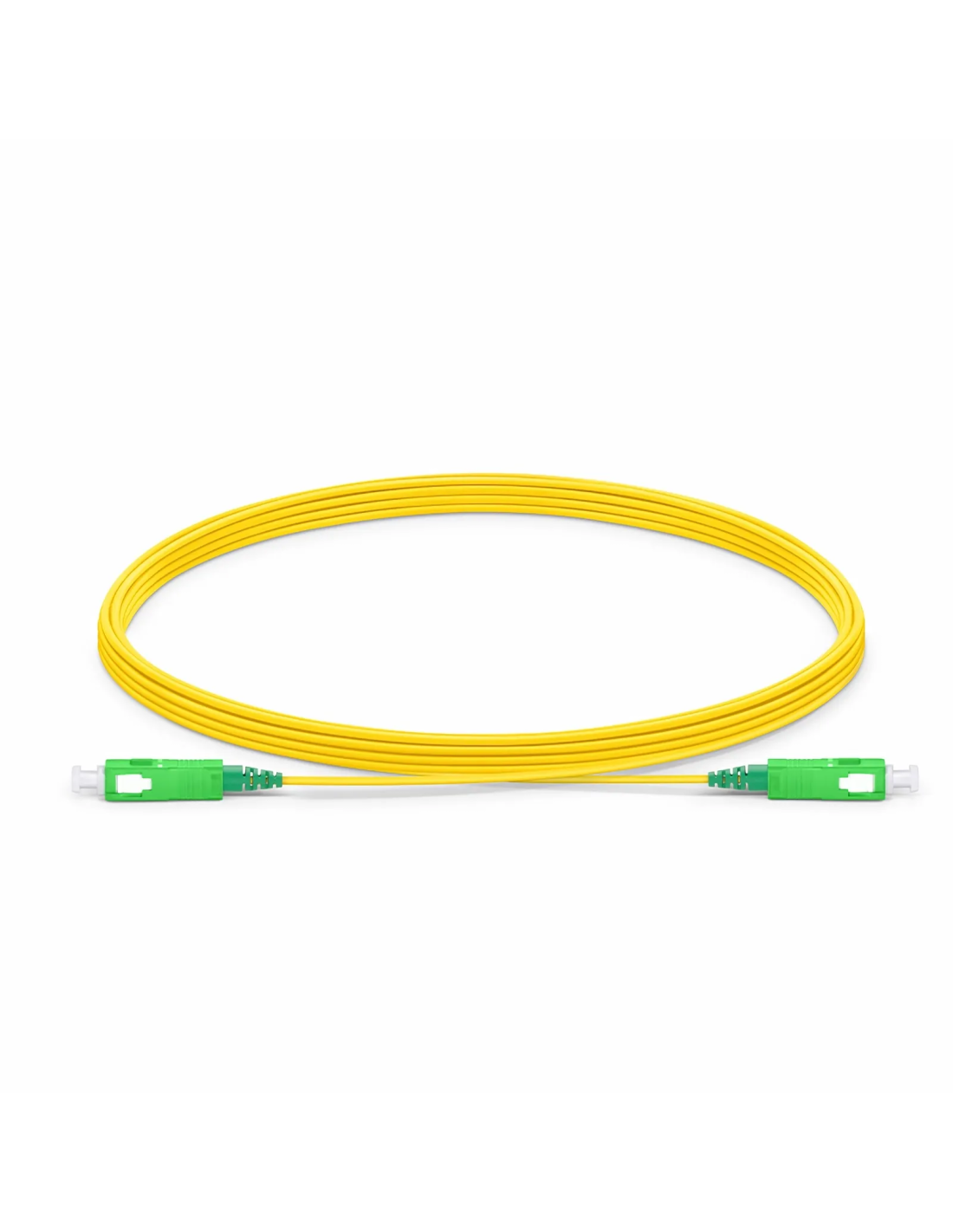

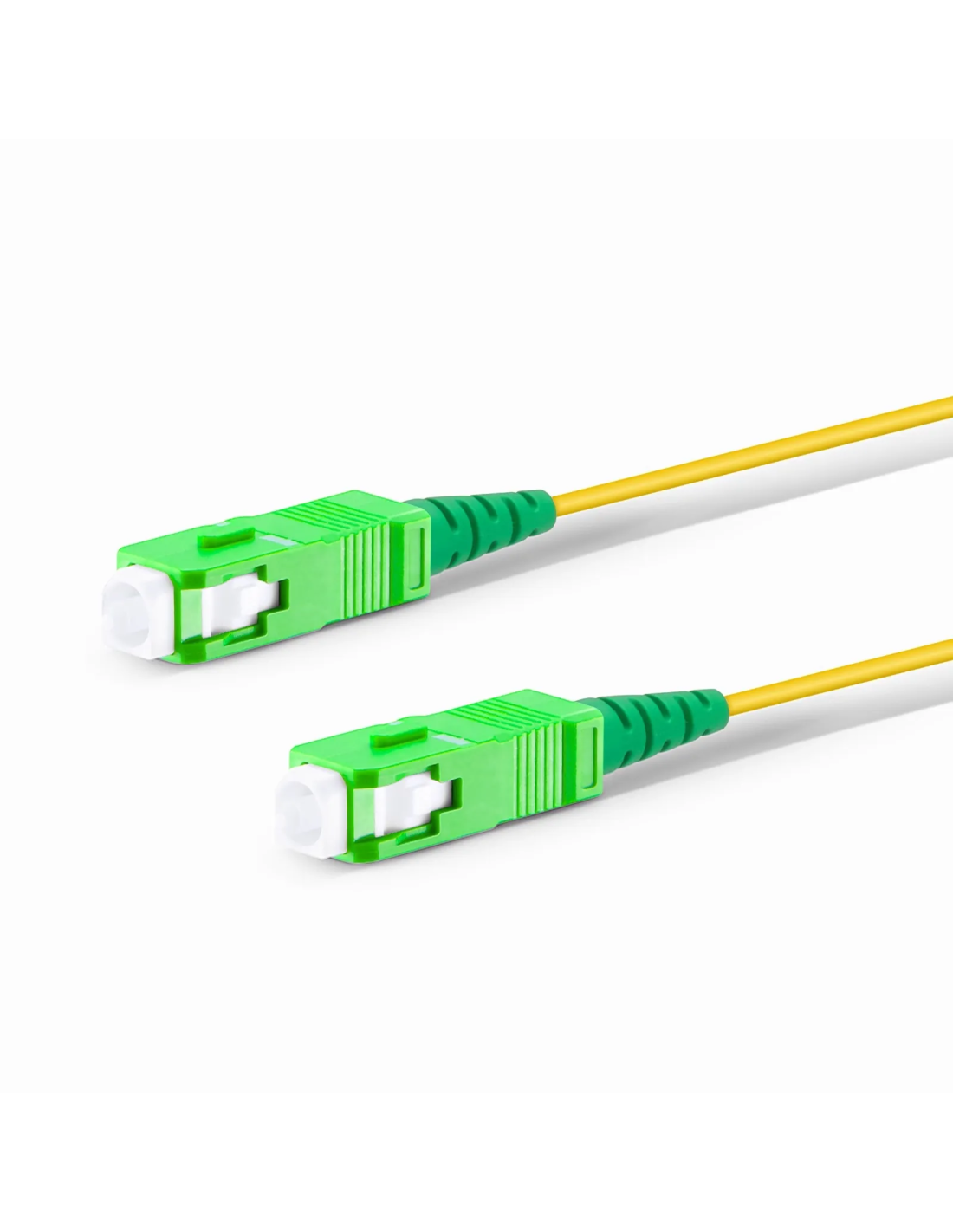

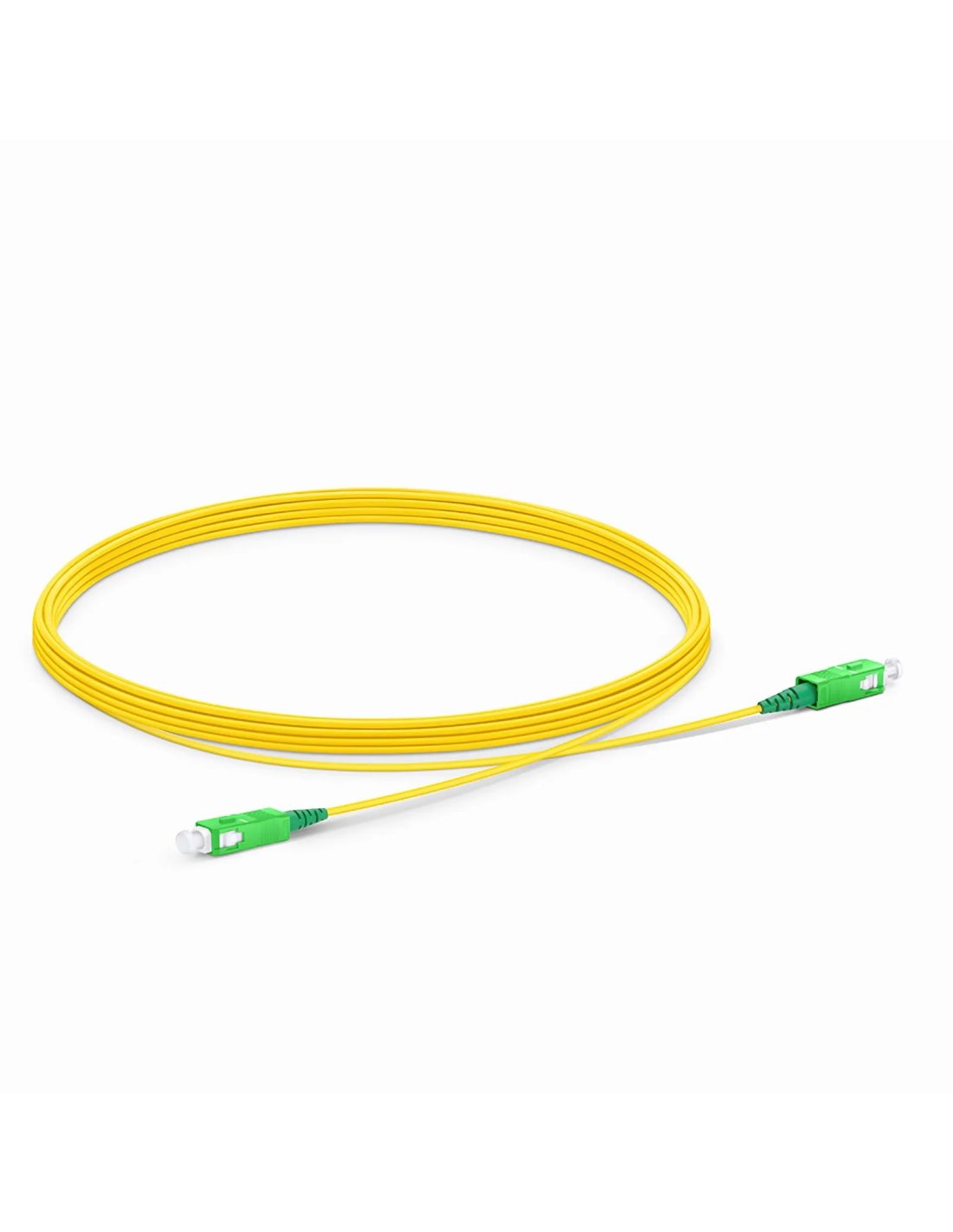

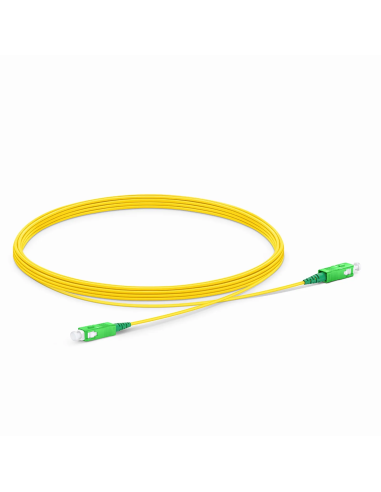

SMSCSXT 5M OS2 Single Mode Fiber Patch Cable SC APC to SC APC Simplex 1 Fiber LSZH 1.2mm Tight-Buffered Yellow
Fiberstore| Buy SMSCSXT 5M OS2 Single Mode Fiber Patch Cable SC APC to SC APC Simplex 1 Fiber LSZH 1.2mm Tight-Buffered Yellow|
Fiberstore| Buy SMSCSXT 5M OS2 Single Mode Fiber Patch Cable SC APC to SC APC Simplex 1 Fiber LSZH 1.2mm Tight-Buffered Yellow|
  • New
SMSCSXT 5M OS2 Single Mode Fiber Patch Cable SC APC to SC APC Simplex 1 Fiber LSZH 1.2mm Tight-Buffered Yellow
Fiberstore| Buy SMSCSXT 5M OS2 Single Mode Fiber Patch Cable SC APC to SC APC Simplex 1 Fiber LSZH 1.2mm Tight-Buffered Yellow|
Fiberstore| Buy SMSCSXT 5M OS2 Single Mode Fiber Patch Cable SC APC to SC APC Simplex 1 Fiber LSZH 1.2mm Tight-Buffered Yellow|

SMSCSXT 5M OS2 Single Mode Fiber Patch Cable SC APC to SC APC Simplex 1 Fiber LSZH 1.2mm Tight-Buffered Yellow

Fiberstore
SMSCSXT
Last items in stock
$14.00
Tax included

SMSCSXT

Fiber Patch Cable, 1F, SC APC Simplex to SC APC Simplex, LSZH, OS2, 1.2mm


Fiber patch cables provide interconnect and cross-connect of applications over data centres, telecommunication networks, and enterprise environments. Pre-terminated cables allow for the implementation of complete Plug & Play solutions to install even large cabling systems rapidly.
This OS2 fibre patch cable is ideal for connecting 1G/10G/25G/40G/100G/400G Ethernet connections. It offers low signal attenuation and high bandwidth for long-distance transmission.
The bend insensitive fibre patch cable has less attenuation when bent or twisted compared with traditional fibre patch cable and this will make the installation and maintenance more efficient.

Key Features:

  • G.657.A1 Bend Insensitive Fiber & 10mm Min. Bend Radius
  • Precision Zirconia Ferrule Connectors Ensure Low Loss
  • Flame-Retardant LSZH Ensures Safety in Indoor Environments
  • Color-Coded Cable Jacket for Easy Identification
  • Pre-terminated Cable Allows for Implementing Plug & Play Solutions
  • Exceptional Performance in a Data Center, Telecommunication Networks, or an Enterprise Setting



SMSCSXT 5M OS2 Single Mode Fiber Patch Cable SC APC to SC APC Simplex 1 Fiber LSZH 1.2mm Tight-Buffered Yellow

Product Specifications:

Specification Details
Connector A SC APC Simplex
Connector B SC APC Simplex
Fiber Count 1 Fiber
Fiber Grade G.657.A1 (Compatible with G.652.D)
Fiber Mode OS2 9/125μm
Wavelength 1310/1550nm
Flame Rating LSZH
Cable Outside Diameter (OD) 1.2mm
RoHS Compliancy Status Compliant
Cable Type Tight-Buffered
Min. Bend Radius (Optical Fiber) 10mm
Min. Bend Radius (Fiber Cable) 20/10D (Dynamic/Static)
Connector Durability 1000 times
Tensile Strength 20/40N (Long/Short Term)
Insertion Loss ≤0.3dB
Return Loss ≥60dB
Attenuation at 1310nm 0.4dB/km
Attenuation at 1550nm 0.3dB/km
Operating Temperature -10 to 70°C (14 to 158°F)
Storage Temperature -20 to 70°C (-4 to 158°F)
